Highlights & Details

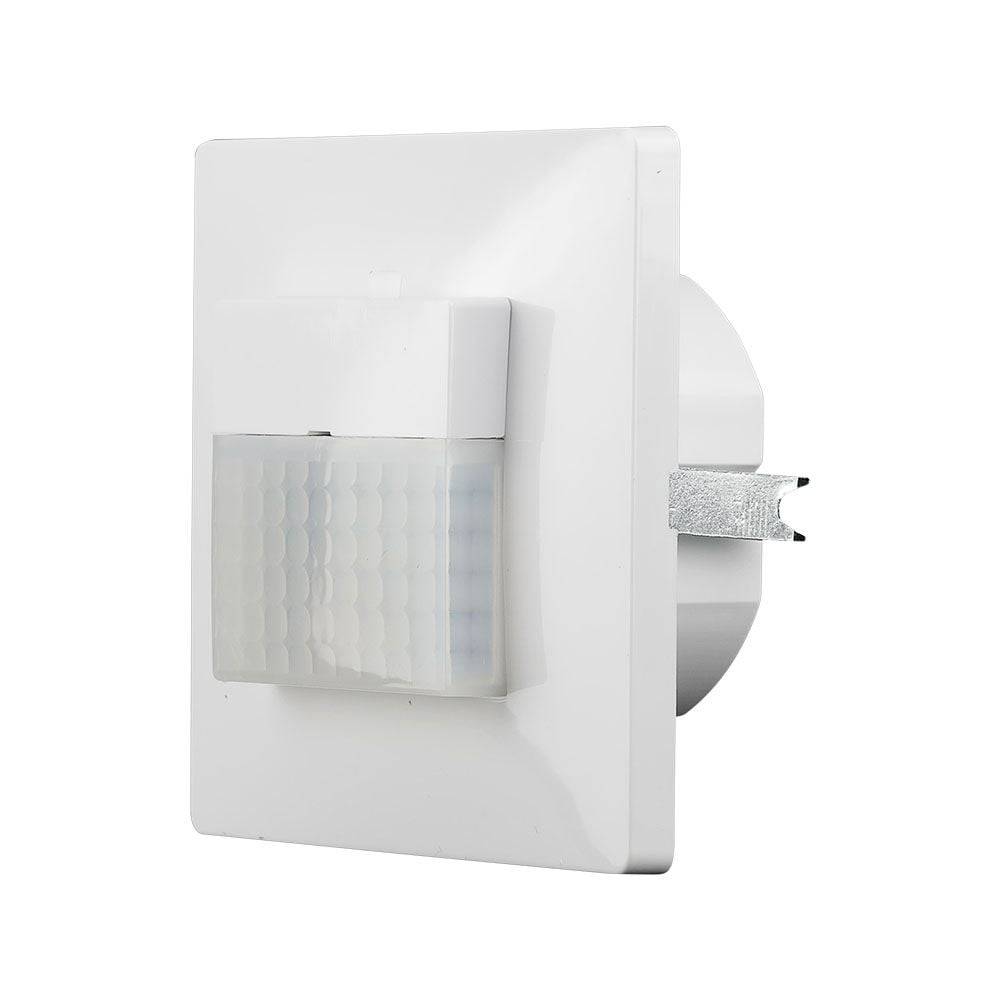

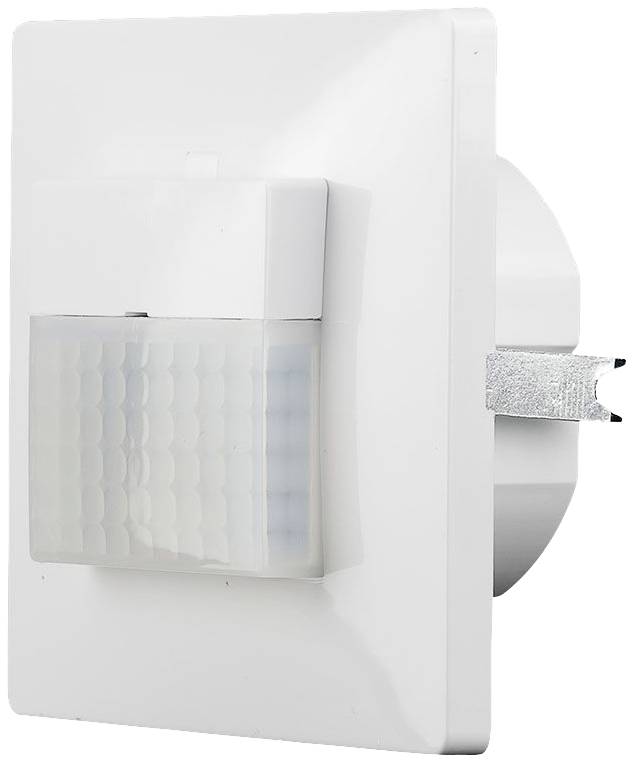

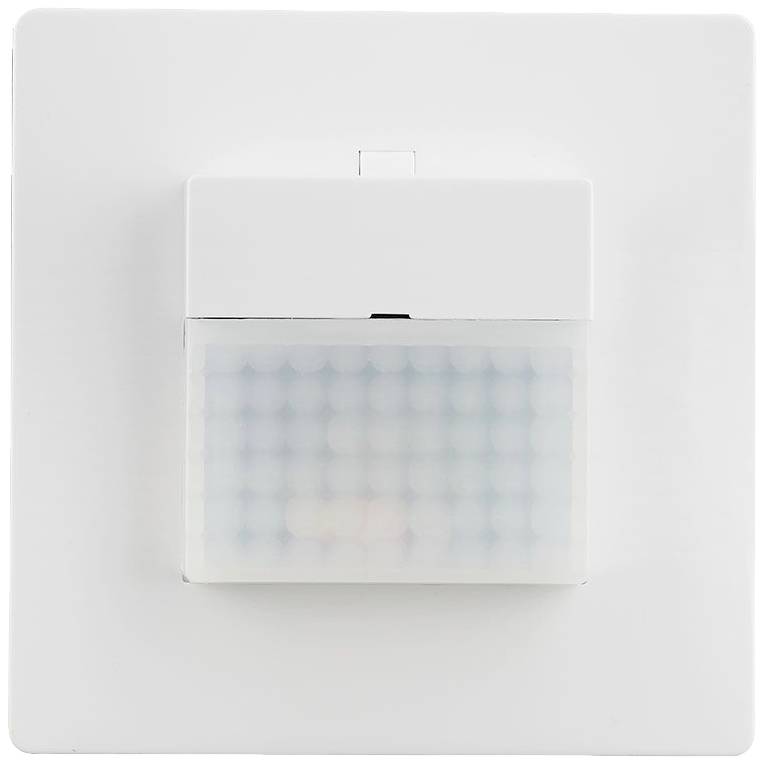

VT-81009 PIR SENSOR TWO WIRE LINE 120° DETECTION RANGE WHITE BODY
- For wall mounting
- Detection range max. 10 m
- Switching time about 10 s - 7 min
- 120° angle of detection
- For indoor use only
- This text is machine translated.
Technical specifications
- Maximum switching power 500 W, with LED max. 200 W
- Installation height 1 - 1.8 m.
- Light sensitivity adjustable from 3 - 2000 lx
- Detection speed 0.6 - 1.5 m/s.

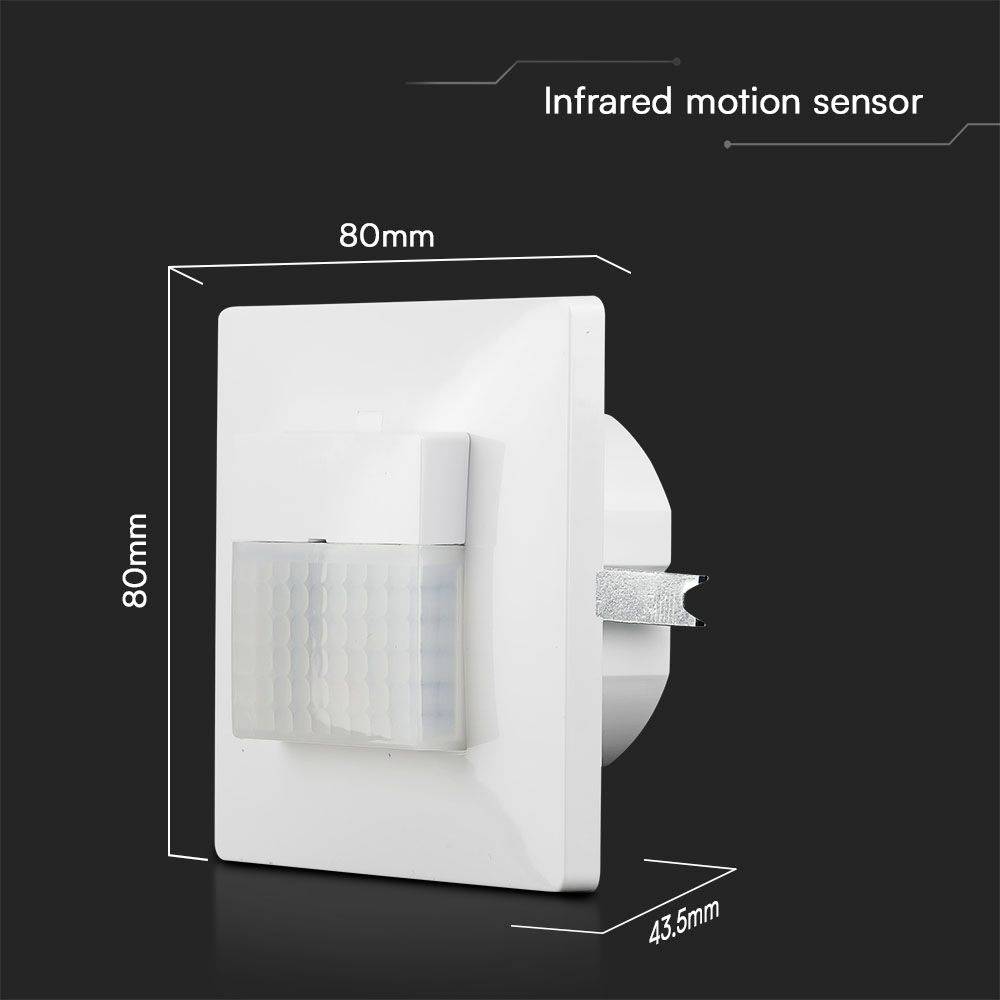

- Dimensions 80 x 80 x 43.5 mm
- Power consumption: 0.9 W.
- Operating temperature -20 to +40°C.
- Vertical detection angle
120°
- Factory colour
White
- (Ø)
88 mm
- Height
88 mm
- Length
88 mm
- Width
52 mm
IP20
- Operating voltage
230 V
- Coverage max. (width)
10 m
- Used at
Indoors
- Protection class
IP20
- Weight
110 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219238 V-TAC 23425 1 pc(s)
Description
Scope of delivery
- 1 movement detectors
- User manual.
