V-TAC 24173 LED-WLAN-Controller 2 A 5 V (L x W x H) 56 x 21 x 12 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED-WLAN-Controller
Operating voltage
5 V
Length
56 mm
Energy efficiency rating
n.rel.
Connection
Pins
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
5
7% = € 0.99
€ 13.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Technical specifications
- Operating temperature: -10 °C to + 60 °C.
- Radio frequency 2.4 GHz
- Compatible APP BanlanX
- Product type
LED-WLAN-Controller
- Connection
Pins
- Operating voltage
5 V
- Min. operating voltage
5 V DC
- Operating voltage
5 - 24 V DC
- Max. operating voltage
24 V DC
- Operating current
40 mA
- LED features
adjustable
IP20
- Width
21 mm
- Height
12 mm
- Length
56 mm
- Dim
(L x W x H) 56 x 21 x 12 mm
- Max. output current
2 A
n.rel.
- Output current (typ.)
2 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3781478 V-TAC 24173 LED-WLAN-Controller 2 A 5 V (L x W x H) 56 x 21 x 12 mm 1 pc(s)
User & Safety Instructions 3781478 V-TAC 24173 LED-WLAN-Controller 2 A 5 V (L x W x H) 56 x 21 x 12 mm 1 pc(s)
Description

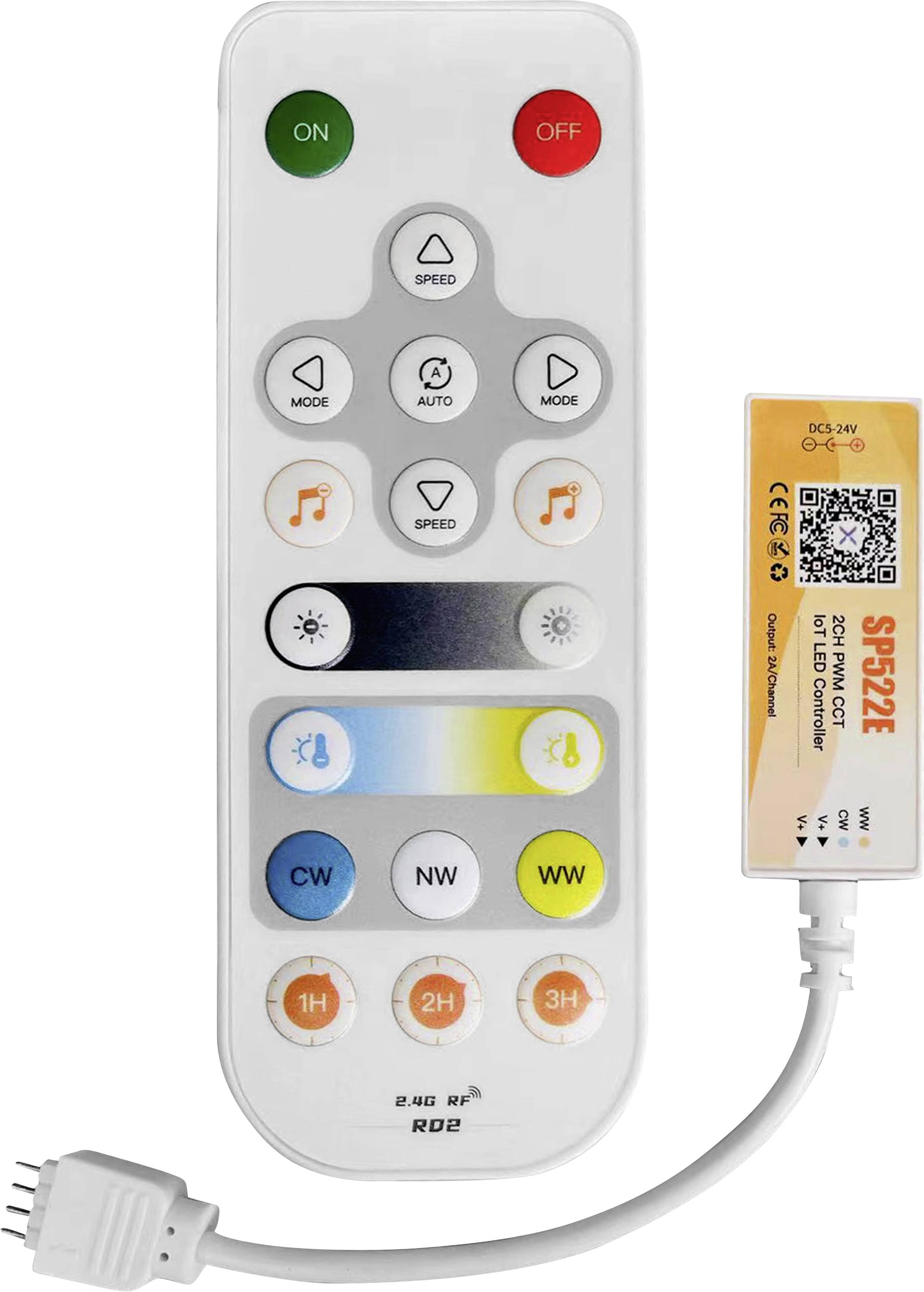

Smart controller with 19 wireless buttons remote control
Supports Google Home, Amazon Alexa and BanlanX APP
Maximum input current of 12mA-40mA. Maximum output current 2A (PWM Single Channel)
DC 5V-24V INPUT VOLTAGE
Compatible with V-TAC CREE CCT strips
This text is machine translated.
Supports Google Home, Amazon Alexa and BanlanX APP
Maximum input current of 12mA-40mA. Maximum output current 2A (PWM Single Channel)
DC 5V-24V INPUT VOLTAGE
Compatible with V-TAC CREE CCT strips
This text is machine translated.
Scope of delivery
- Remote control battery included CR2025
