V-TAC 24358 IR sensor White IP20
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Material PC
- Product type
IR sensor
- Voltage (max.)
240 V AC
- Switching capacity (LED)
600 W
- Factory colour
White
IP20
- Operating temperature
-20 °C - +50 °C
- Type
Contact sensor
- Length
20.4 mm
- Width
78.2 mm
- Height
35.5 mm
- Dim
(L x W x H) 20.4 x 78.2 x 35.5 mm
- Voltage (min.)
220 V AC
- Connection
Punchdown block
- Max. switching capacity
600 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3781514 V-TAC 24358 IR sensor White IP20
Description

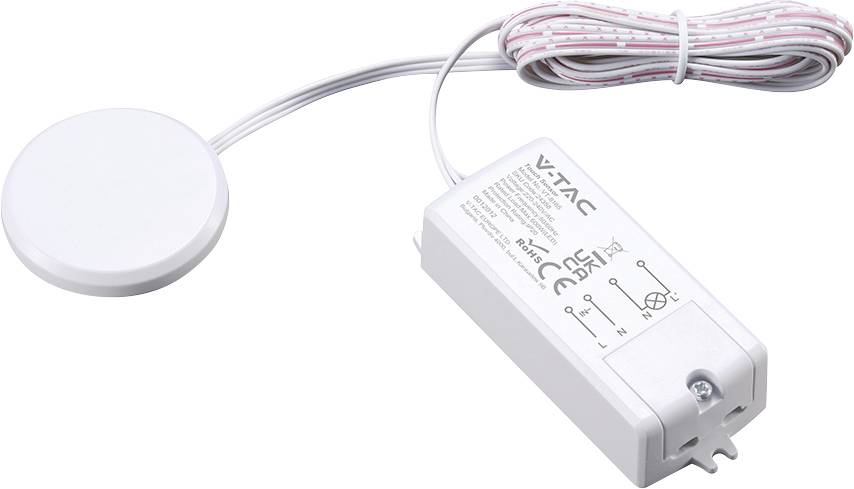

Touch sensor for surface-based control
Effective penetration by wood or glass up to 40 mm Dick
Maximum rated load 600W (LED). Power consumption: 0.5 W.
Compact structure for comfortable positioning and positioning
Compatible with the V-TAC LED range (up to 600W)
This text is machine translated.
Effective penetration by wood or glass up to 40 mm Dick
Maximum rated load 600W (LED). Power consumption: 0.5 W.
Compact structure for comfortable positioning and positioning
Compatible with the V-TAC LED range (up to 600W)
