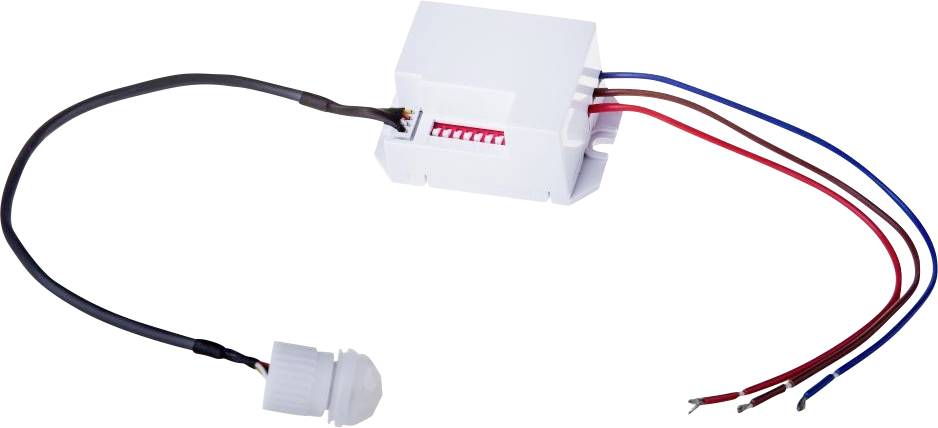

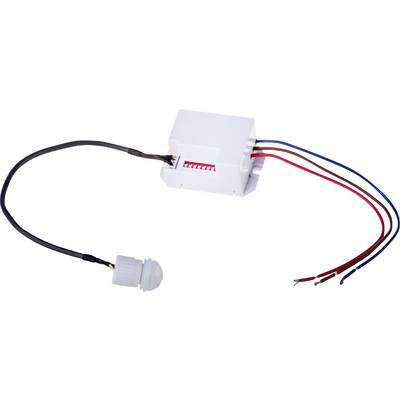

V-TAC 5082 IR sensor 120 °, 360 ° White IP65
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
14-day return policy included
Technical specifications
- Material: Plastic
- Movement recognition-Speed 0.6-1.5 m/s.
- Product type
IR sensor
- Detection angle
120°
360°
6 m
- Voltage (max.)
240 V AC
- Switching capacity (LED)
200 W
- Twilight settings
10 - 2000 lx
- Time settings
5 sec, 30 sec, 1 min, 3 min, 5 min, 8 min
- Factory colour
White
IP65

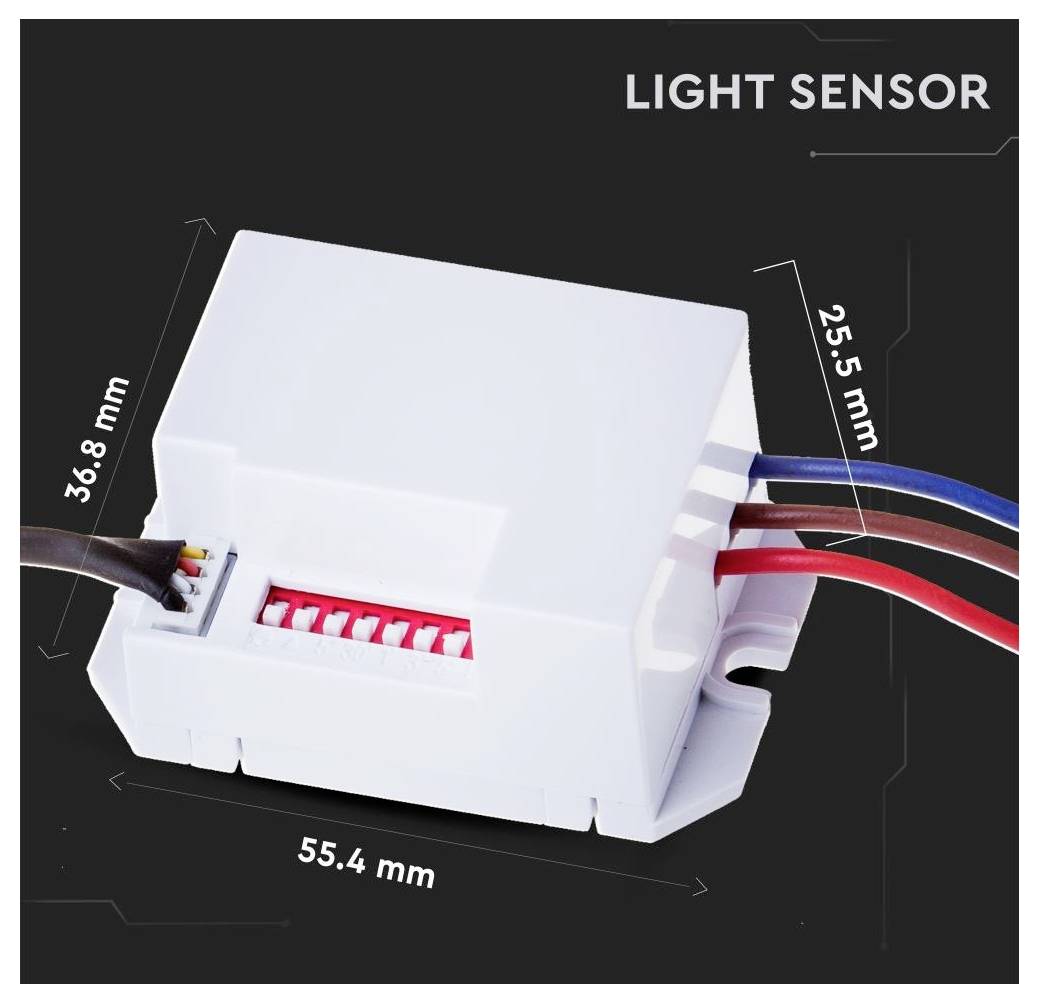

- Length
55.4 mm
- Width
36.8 mm
- Height
25.5 mm
- Dim
(L x W x H) 55.4 x 36.8 x 25.5 mm
- Voltage (min.)
220 V AC
- Max. switching capacity
200 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3781527 V-TAC 5082 IR sensor 120 °, 360 ° White IP65
Description
An infrared motion detector with an integrated circuit can detect heat signatures
Adjustable time delay – ambient light – detection distance for versatile scenarios High-quality receptors for immediate function
Effective system for energy saving and safety. Compatible with V-TAC-Models.
