V-TAC 5084 Recess-mount Motion detector 30 ° White IP20
EAN:
Part number:
Item no:
Highlights & Details
VT-8025 Motion detector
- Short-distance IR motion detector
- Switching power max. 500 W at 230 V
- Operating voltage 110 - 240 V.
Technical specifications
- Breaking capacity 110 - 130 V.
- 100 W in fluorescent lamps
- 300 W with bulbs
- Product type
Motion detector
- Detection angle
30°
- Used at
Indoors
- Mounting type
Recess-mount
- Operating voltage
230 V
- Switching capacity
500 W
- Voltage (max.)
240 V
- Switching capacity (energy saving bulbs)
100 W
- Switching capacity (light bulbs)
500 W
- Switching capacity (light tubes)
200 W
- Factory colour
White
IP20
- Length
20.6 mm
- Width
35.5 mm
- Height
78.2 mm
- (Ø)
35.5 mm
- Dim
(Ø x H) 35.5 mm x 78.2 mm
- Weight
0.08 kg
- Voltage (min.)
110 V
- Material
Plastic
- Max. switching capacity
200 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3324791 V-TAC 5084 Recess-mount Motion detector 30 ° White IP20
Description

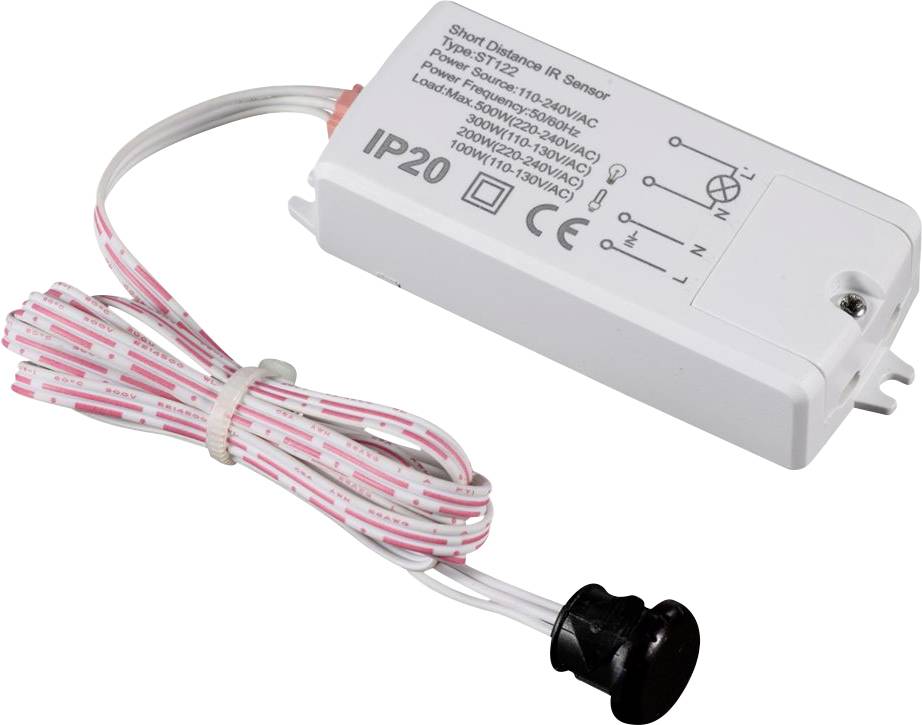

The short-distance IR motion detector is suitable for installation in ceilings or walls.
