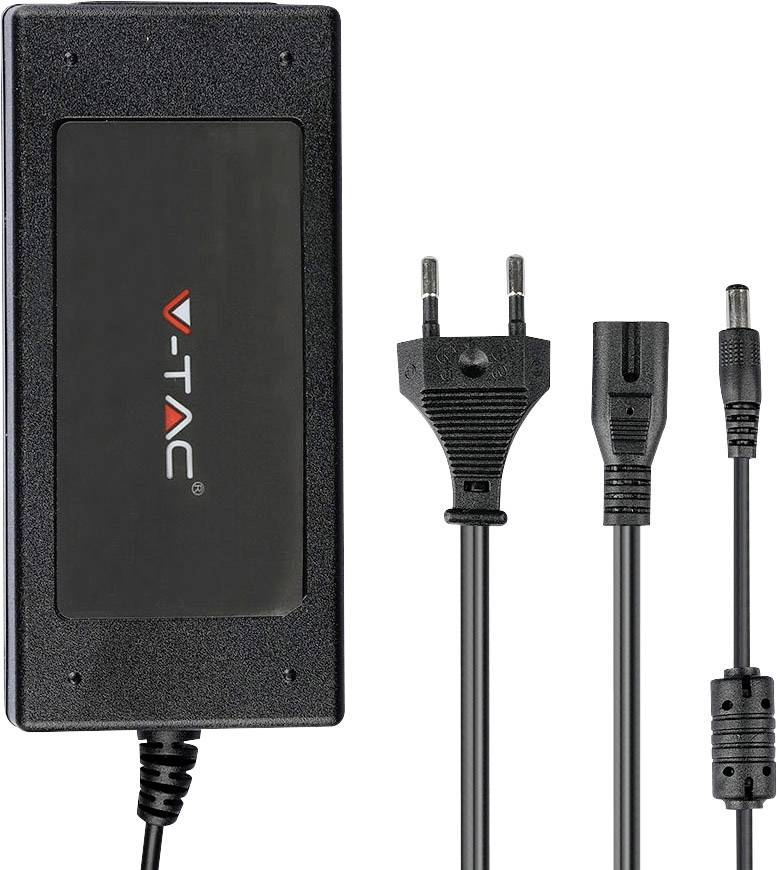

V-TAC Light control set 3240 VT-23079
EAN:
Part number:
Item no:
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Operating current
6.5 A
- Dim
(Ø x H) 119 mm x 32 mm
- Factory colour
Black
- Output voltage (max.)
12 V
- Output voltage (min.)
12 V
- Max. output current
6.5 A
- Output current (max.) - rounded
6.5 A
- Operating voltage
230 V
- Protection class
IP44
- LED driver features
not dimmable
IP44
- Connection
Socket
- Max. power
78 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
6.5 A
- Input voltage (max.)
264 V
- Min. input voltage
100 V
- Weight
308 g
- Power range
78 W (max)
- Width
119 mm
- Height
32 mm
- Length
52 mm
- Max. temperature
55 °C
- Min. temperature
-35 °C
- Cable length
2.4 m
- (Ø)
119 mm
- No. of bulbs
1
- Bulb type
LED (monochrome)
No
- Material
Plastic
- Input voltage
220 V
- Output voltage
12 V
78 W
49 K
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272488 V-TAC Light control set 3240 VT-23079
Conformity certificate
Conformity certificate 2272488 V-TAC Light control set 3240 VT-23079
