Buy V-TAC VT-23031 LED transformer Constant voltage 30 W 2.5 A 12 V DC not dimmable 1 pc(s)

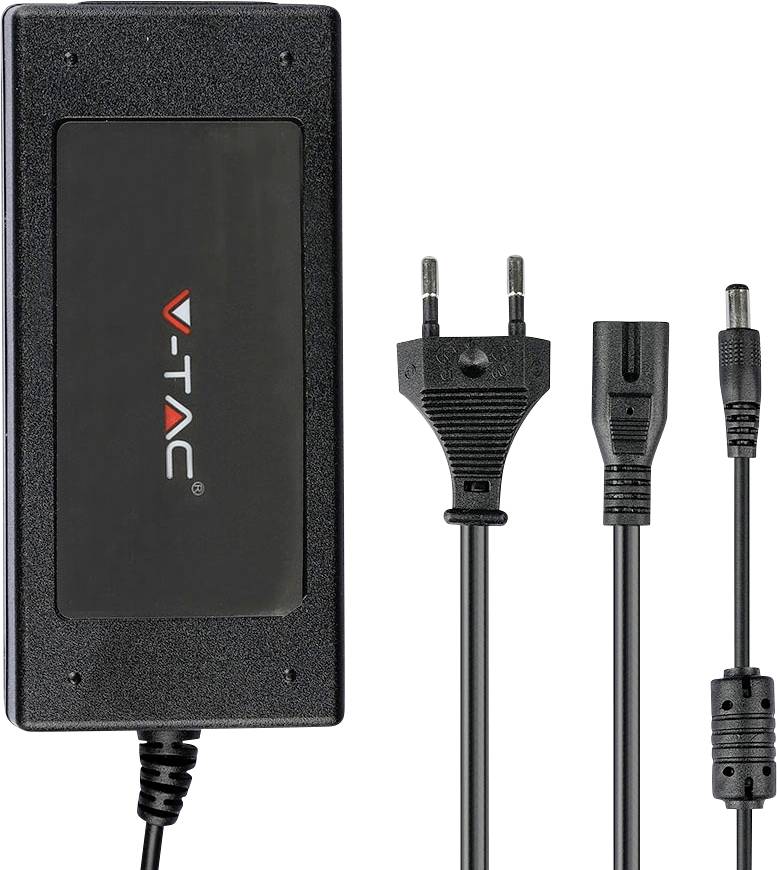

Black V-TAC power adapter with European plug and attached output cable, shown with interchangeable connector tips.

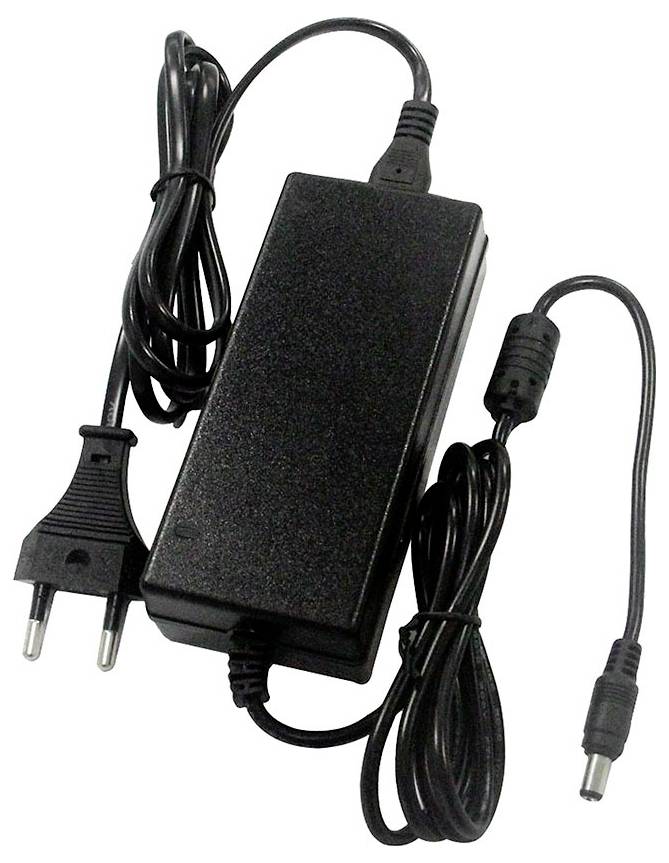

Black AC power adapter with coiled cord, European two-pin plug, and barrel connector for powering electronic devices.

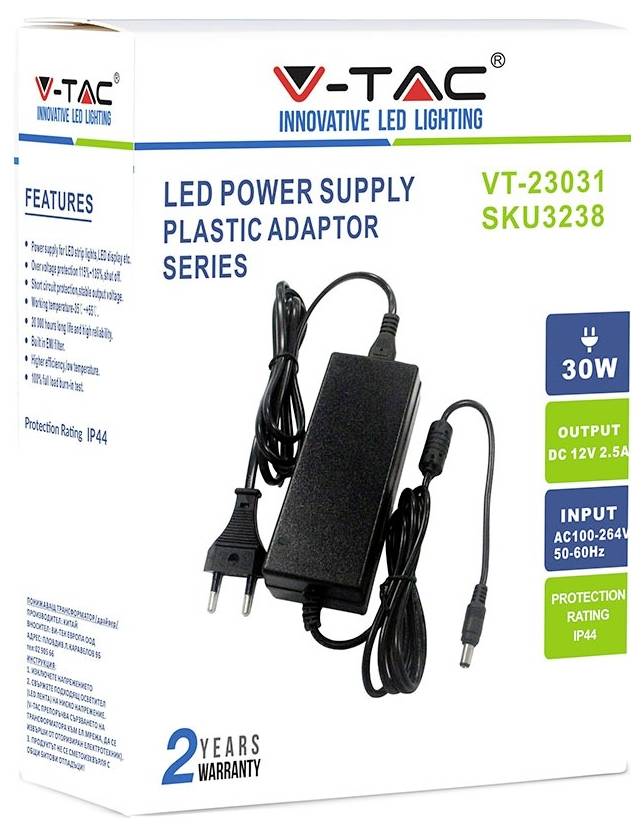

VTAC LED power supply plastic adaptor box with black adapter shown; labels indicate 30W, output DC 12V 2.5A, input AC100-264V, IP44, 2-year warranty.

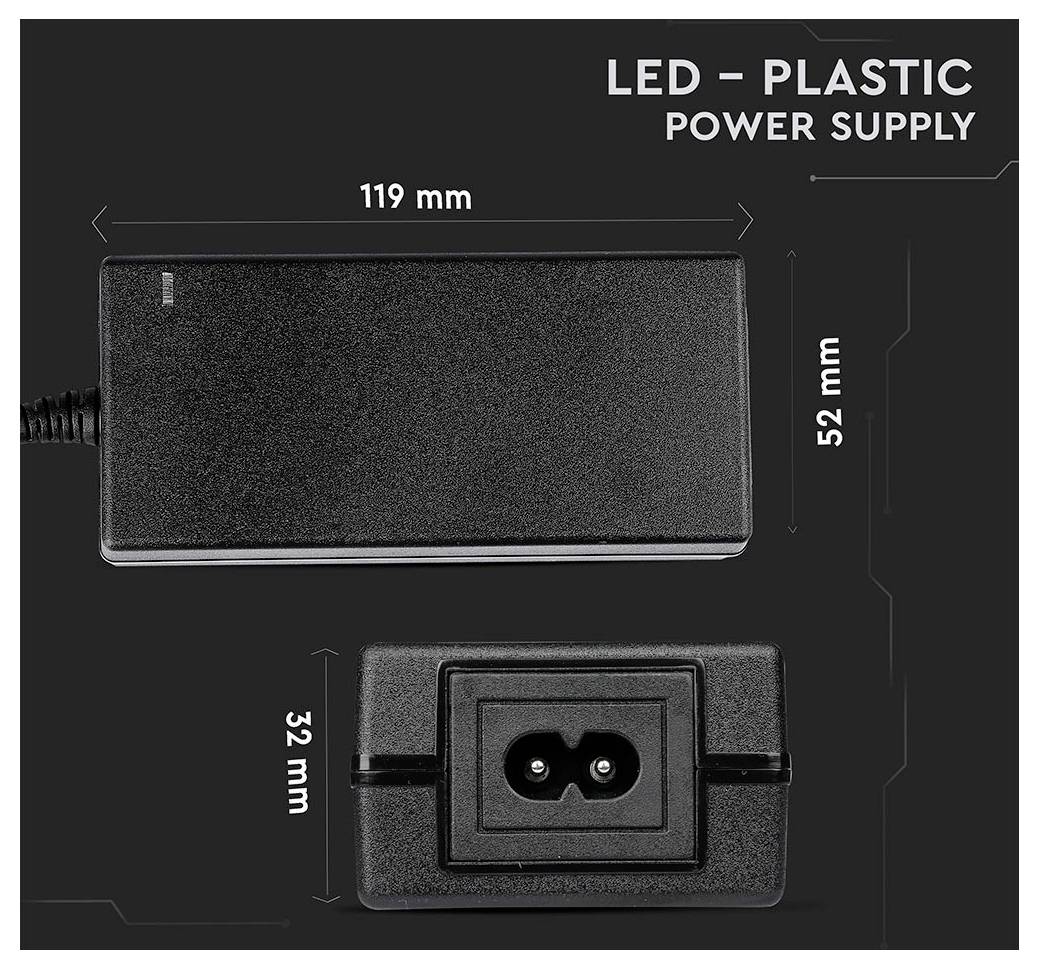

Diagram of an LED plastic power supply showing top and front views with dimensions 119 mm by 52 mm and 32 mm, labeled 'LED - PLASTIC POWER SUPPLY'.

1/4

Fast track dispatch on Tue, 6 Oct

41 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VT-23031

Constant voltage
12 V DC
2.5 A

Technical specifications

Material ABS+plastic

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 119 x 52 x 32 mm

Factory colour: Black

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

Operating voltage: 240 V

Protection class: IP44

LED driver features: not dimmable

: IP44

Connection: Euro plug

Max. power: 30 W

No. of outputs: 1 x

Output current (min.): 2.5 A

Input voltage (max.): 264 V AC

Min. input voltage: 100 V AC

Weight: 0.284 kg

Power range: 30 W (max)

Width: 52 mm

Height: 32 mm

Length: 119 mm

Max. temperature: 55 °C

Min. temperature: -35 °C

Cable length: 2.4 m

: No

Material: Plastic

Input voltage: 220 V

Output voltage: 12 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3781529 V-TAC VT-23031 LED transformer Constant voltage 30 W 2.5 A 12 V DC not dimmable 1 pc(s)

Description

Plastic drivers that are compatible with all V-TAC strip lamps, LEDs, etc.
Short circuit protection, overload protection and stable output voltage. Built-in EMI filter
High efficiency and low temperature. 100% full load burn-in test. IP44 entrance protection....

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
