Vaillant 000475
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Brass
- Nominal diameter: 1/2 in. (15)
- Pipe outer diameter of all connections 21 mm
- Connection: External thread
- Max. Tank capacity: 2 kW
- Design: Without mixed battery
- Print level item: PN 6
- Surface protection: Other
- With couplings: Yes
- With crimping set: No.
- With siphon: No.
- Interchangeable reversing flap: No.
- Shutter cock: Yes
- Length of connection 1 20 mm
- Working length of connection 1: 30 mm
- Length of connection 2 20 mm
- Working length of connection 2: 30 mm
- Product type
Safety module
- Material
Brass
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135660 Vaillant 000475
Description

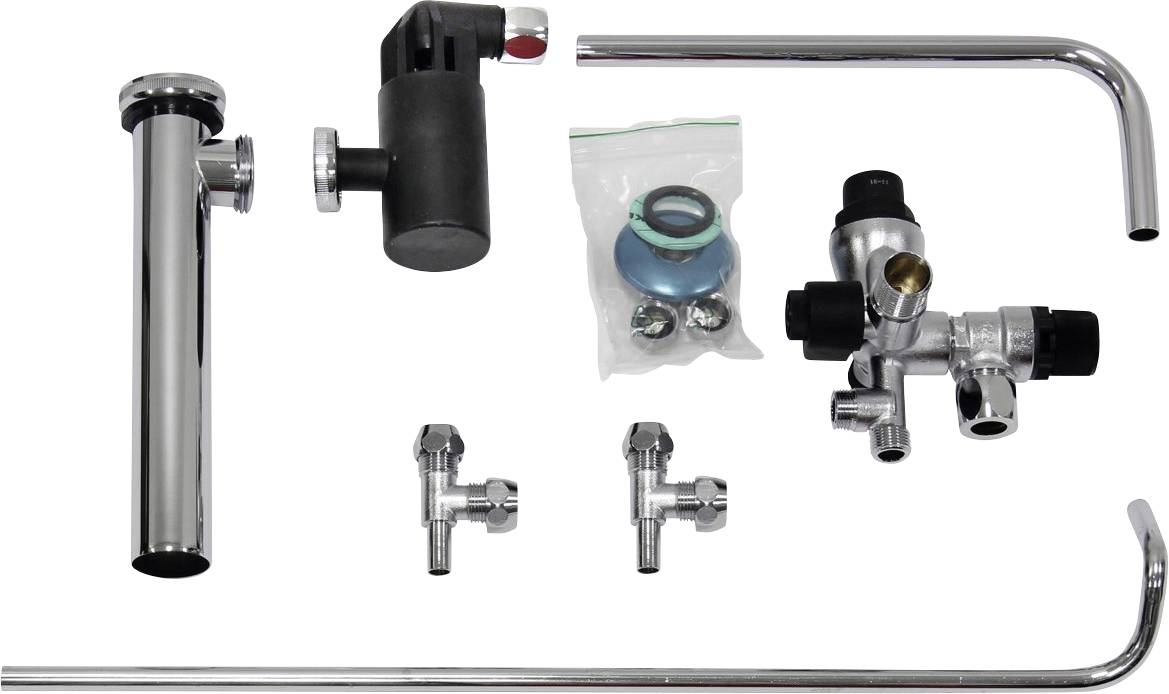

Safety group VEH 10 U with pressure reducer for cold water connection and net pressure up to 6.0 bar, 1/2 passage. For the protection of closed warm water storage tanks up to 10 l content against overpressure. For one or more taps. Consisting of: Chromed brass shut-off valve with membrane safety valve, T-pieces, pipes, discharge funnel with drain connection
