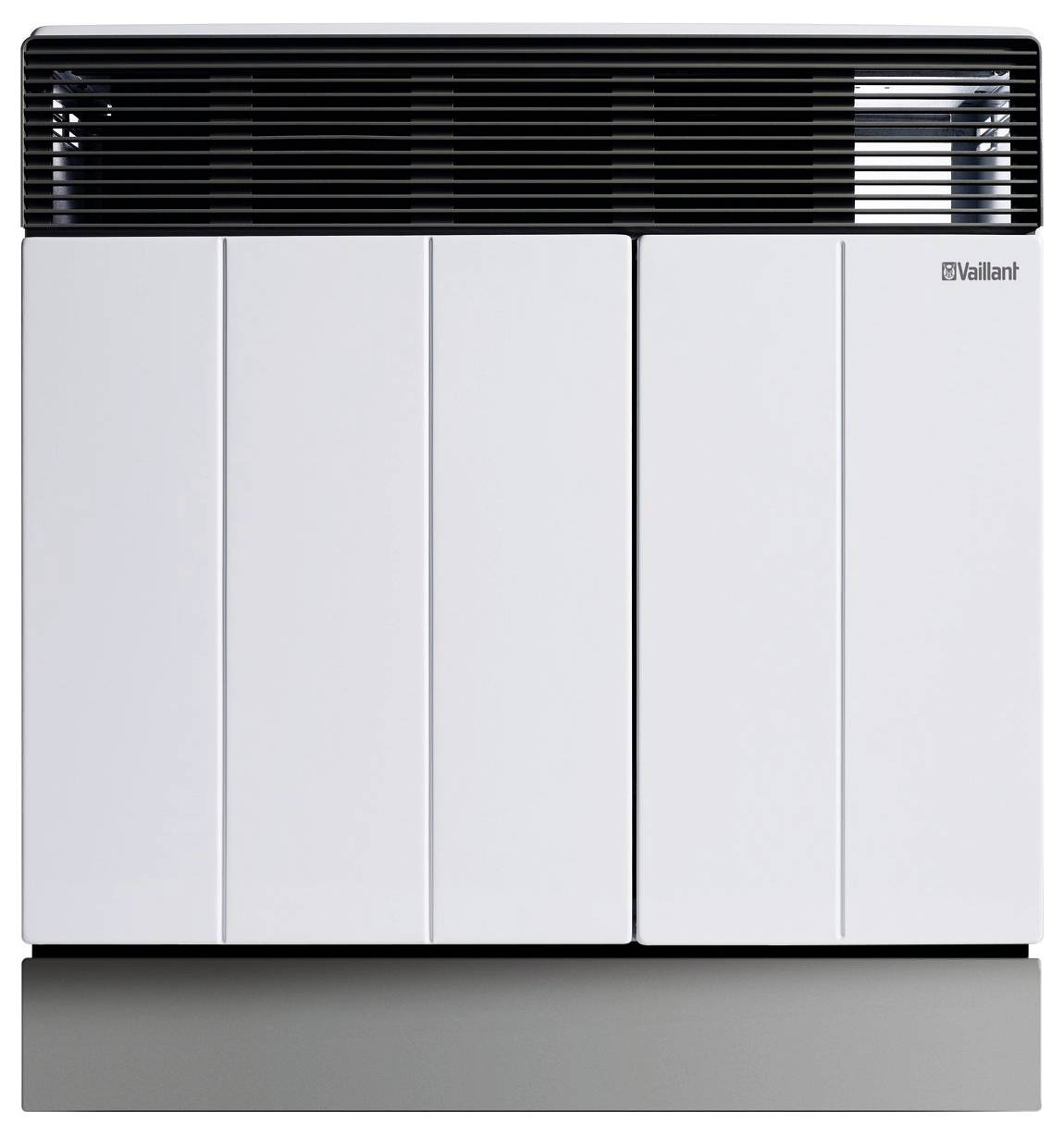

Vaillant 0010007933 Gas room heater D (A++ - G)
EAN:
Part number:
Item no:
Technical specifications
- Material heat exchanger: Steel
- Material quality: Steel sheet
- Closed version: Yes
- Operation as open (air supply) version possible: Yes
- Boiler system: Flame pipe
- Nominal load upper value: 8.6 kW
- Adjustable heating power: No.
- Electronic ignition: No.
- Medium: Other
- Suitable for natural gas: Yes
- Suitable for propane: No.
- Suitable for butane: No.
- Suitable for methane: No.
- For class II fuel oil: No.
- For class I fuel oil: No.
- Burner control high/low: No.
- Modulating burner control: No.
- Max. Gas footprint 25 mbar
- Min Gas footprint 17 mbar
- In-built filling/emptying tap: No.
- Built-in pump circuit: No.
- Built-in train interruption: No.
- In-built circulation pump: No.
- In-built pressure gauge: No.
- In-built weather-dependent controller: No.
- Built-in expansion tank: No.
- Built-in relief valve: No.

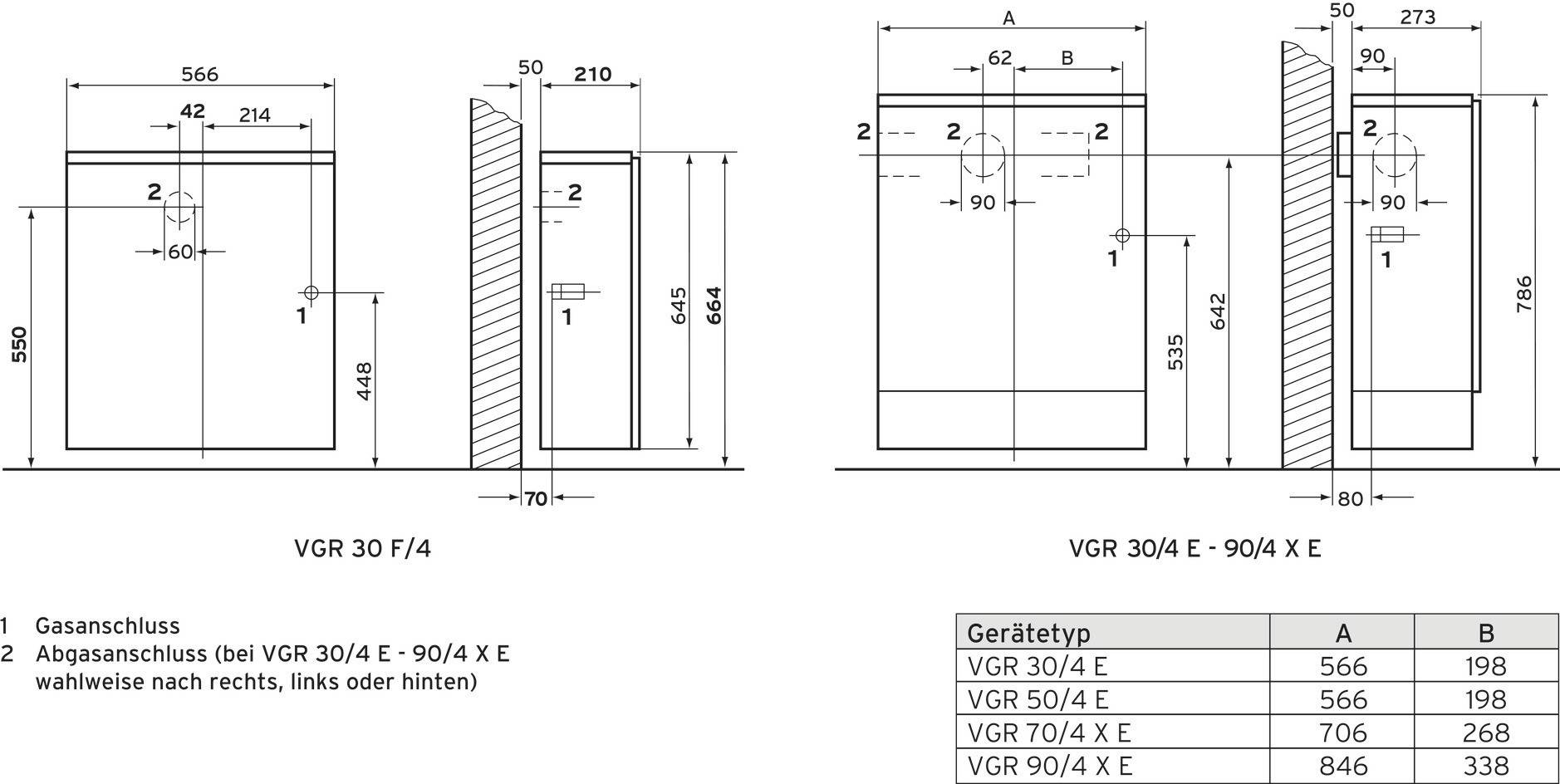

- Height: 790 mm
- Width 849 mm
- Depth: 275 mm
- Fuel connection: Internal thread
- Pipe outer diameter of fuel: 20.995 mm
- Nominal diameter duct air supply: 90 mm
- Smoke extraction connection: Insert
- Nominal diameter channel flue gas discharge: 90 mm
- Energy efficiency class D
- Product type
Gas room heater
- Operating voltage
0 V
8.6 kW
- Heater features
incl. piezo igniter
- Dim
(W x H x D) 849.00 x 790.00 x 275.00 mm
- Weight
46 kg
D (A++ - G)
- Width
849.00 mm
- Height
790.00 mm
- Depth
275.00 mm
- Material
Steel
- Nominal voltage
0 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148559 Vaillant 0010007933 Gas room heater D (A++ - G)
Description
Gas room heating unit VGR 90/4 XE for chimney connection, creamy white/gray equipment, multi-gas unit for natural gas and liquid gases, adjusted for natural gas H, enameled heat exchanger, nozzles for natural gas LL enclosed, gas fitting with thermo-electrical ignition device and piezo ignition device, integrated exhaust sensor, gas burner made of stainless steel with heat-conducting rods made of ceramic, automatic control system with built-in thermostat and modulating power control, Three-sided chimney connection, i.e. right, left and rear possible Gas type Natural gas E Nominal heat output 8.6 kW Nominal heat load 10.4 kW Gas connection R 1/2 Exhaust connection 90 mm Height/width/depth 786/846/273 mm Weight 46 kg DVGW product ID no. CE-0085BL00532 Seasonal Energy Efficiency Class D (Spectrum A++ to G)
