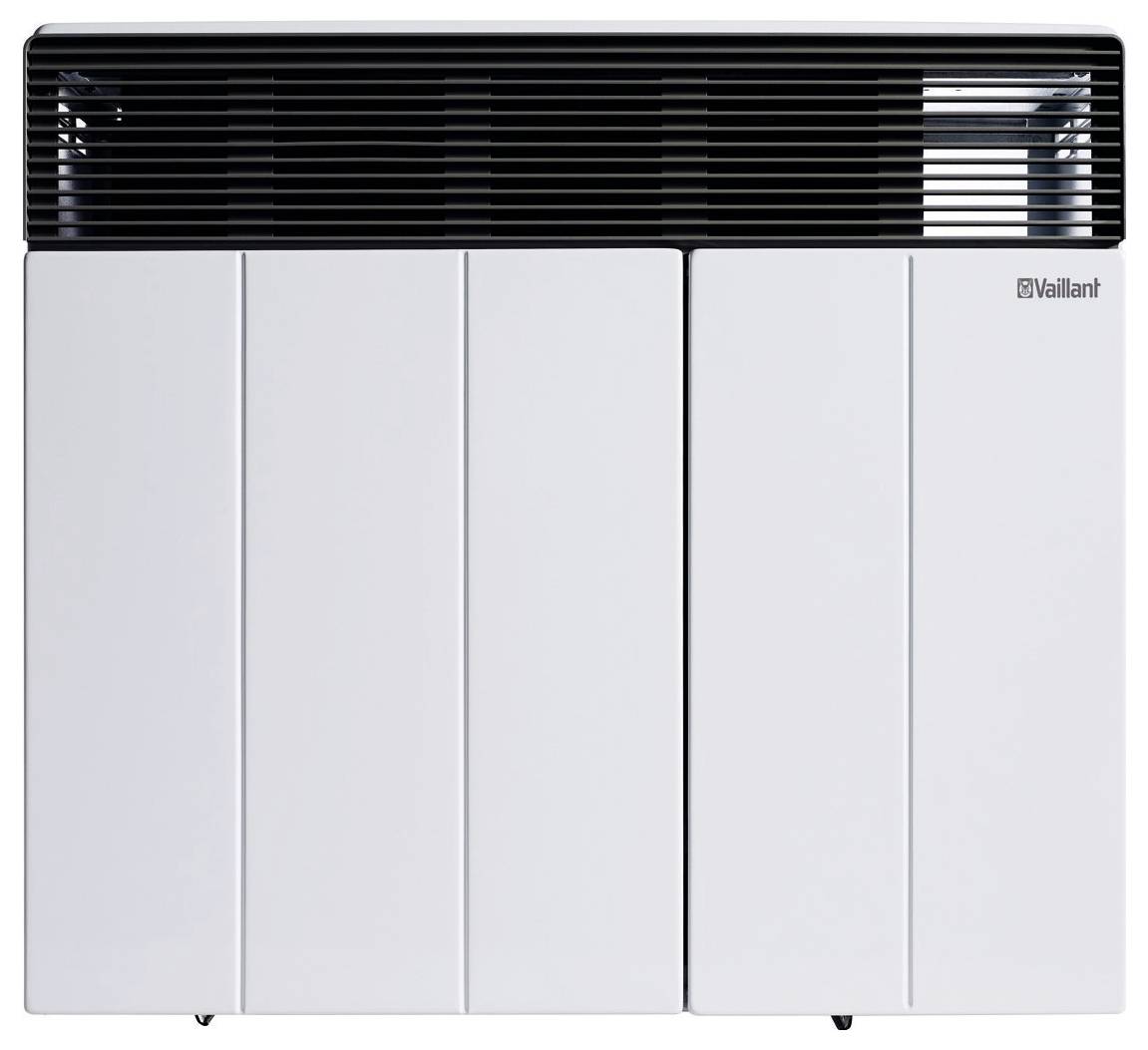

Vaillant 0010007935 Gas room heater D (A++ - G)
EAN:
Part number:
Item no:
Technical specifications
- Material heat exchanger: Steel
- Material quality: Steel sheet
- Closed version: Yes
- Operation as open (air supply) version possible: No.
- Boiler system: Flame pipe
- Nominal load upper value: 4.7 kW
- Adjustable heating power: No.
- Electronic ignition: No.
- Medium: Other
- Suitable for natural gas: Yes
- Suitable for propane: No.
- Suitable for butane: No.
- Suitable for methane: No.
- For class II fuel oil: No.
- For class I fuel oil: No.
- Burner control high/low: No.
- Modulating burner regulation: Yes
- Max. Gas footprint 25 mbar
- Min Gas footprint 17 mbar
- In-built filling/emptying tap: No.
- Built-in pump circuit: No.
- Built-in train interruption: No.
- In-built circulation pump: No.
- In-built pressure gauge: No.
- In-built weather-dependent controller: No.
- Built-in expansion tank: No.
- Built-in relief valve: No.
- Height: 679 mm
- Width 706 mm
- Depth: 343 mm
- Fuel connection: Internal thread
- Pipe outer diameter of fuel: 20995 mm
- Connection air supply: Insert
- Nominal diameter duct air supply: 202 mm
- Smoke extraction connection: Insert
- Nominal diameter channel flue gas discharge: 122 mm
- Energy efficiency class D
- Product type
Gas room heater
- Operating voltage
0 V
- Dim
(W x H x D) 706.00 x 679.00 x 343.00 mm
D (A++ - G)
- Width
706.00 mm
- Height
679.00 mm
- Depth
343.00 mm
- Material
Steel
- Nominal voltage
0 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148535 Vaillant 0010007935 Gas room heater D (A++ - G)
Description

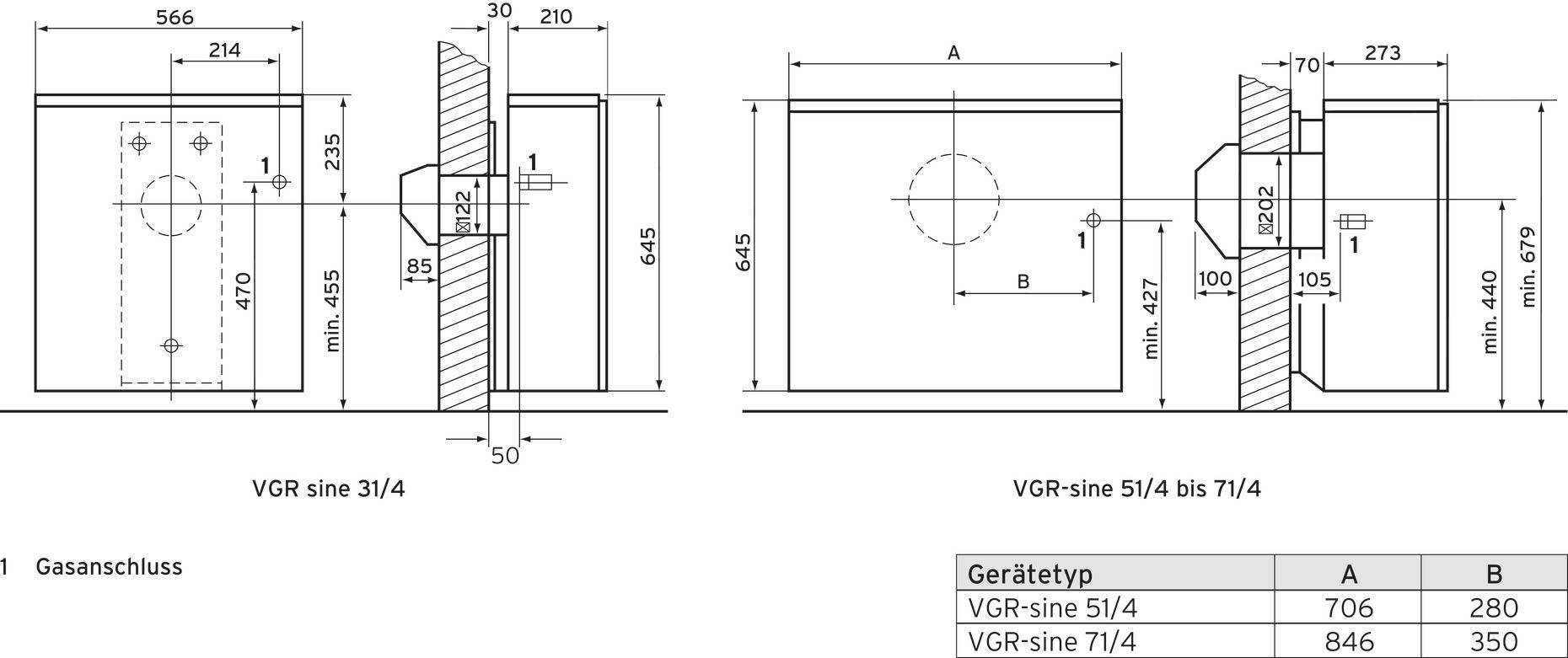

Gas-operated room heater. VGR-sine 51/4E for outdoor wall connection, cream white/gray equipment, multi-gas unit for natural gas and liquid gases, adjusted for natural gas H, nozzles for natural gas LL enclosed, enameled heat exchanger, gas fitting with thermo-electrical ignition device and piezo ignition device, stainless steel gas burner with heat-conductive rods made from ceramic, automatic control system with built-in thermostat and modulated power control, Gas room heater for external wall connection via wall box Gas type Natural gas E Nominal heating power 4.7 kW Nominal heat load 5.5 kW Gas connection R 1/2 Exhaust gas connection 202 mm Height/width/depth 679/706/343 mm Weight 37 kg DVGW product ID no. CE-0085BL0556 Seasonal Energy Efficiency Class D (Spectrum A++ to G)
