Vaillant 0010007938 Gas room heater D (A++ - G)
EAN:
Part number:
Item no:
Technical specifications
- Material heat exchanger: Steel
- Material quality: Steel sheet
- Closed version: Yes
- Operation as open (air supply) version possible: No.
- Condensing: No.
- Boiler system: Flame pipe
- Nominal load upper value: 4.7 kW
- Adjustable heating power: No.
- Electronic ignition: No.
- Medium: Other
- Suitable for natural gas: Yes
- Suitable for propane: Yes
- Suitable for butane: No.
- Suitable for methane: No.
- For class II fuel oil: No.
- For class I fuel oil: No.
- At delivery completely assembled: Yes
- Control signal on/off: Yes
- Burner control high/low: No.
- Modulating burner regulation: Yes
- Max. Gas footprint 57.7 mbar
- Min Gas footprint 42.5 mbar
- In-built filling/emptying tap: No.
- Built-in pump circuit: No.
- Built-in train interruption: No.
- In-built circulation pump: No.
- In-built pressure gauge: No.
- In-built weather-dependent controller: No.
- Built-in expansion tank: No.
- Built-in relief valve: No.
- Height: 645 mm
- Width 706 mm
- Depth: 273 mm
- Fuel connection: Internal thread
- Pipe outer diameter of fuel: 20995 mm
- Connection air supply: Insert
- Nominal diameter duct air supply: 202 mm
- Smoke extraction connection: Insert
- Nominal diameter channel flue gas discharge: 122 mm
- Energy efficiency class D
- Product type
Gas room heater
- Operating voltage
0 V
4.7 kW
- Heater features
incl. piezo igniter
- Dim
(L x W x H) 706 x 706.00 x 645.00 mm
- Weight
37 kg
D (A++ - G)
- Width
706.00 mm
- Height
645.00 mm
- Length
706 mm
- Depth
273.00 mm
- Material
Steel
- Nominal voltage
0 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148534 Vaillant 0010007938 Gas room heater D (A++ - G)
Description

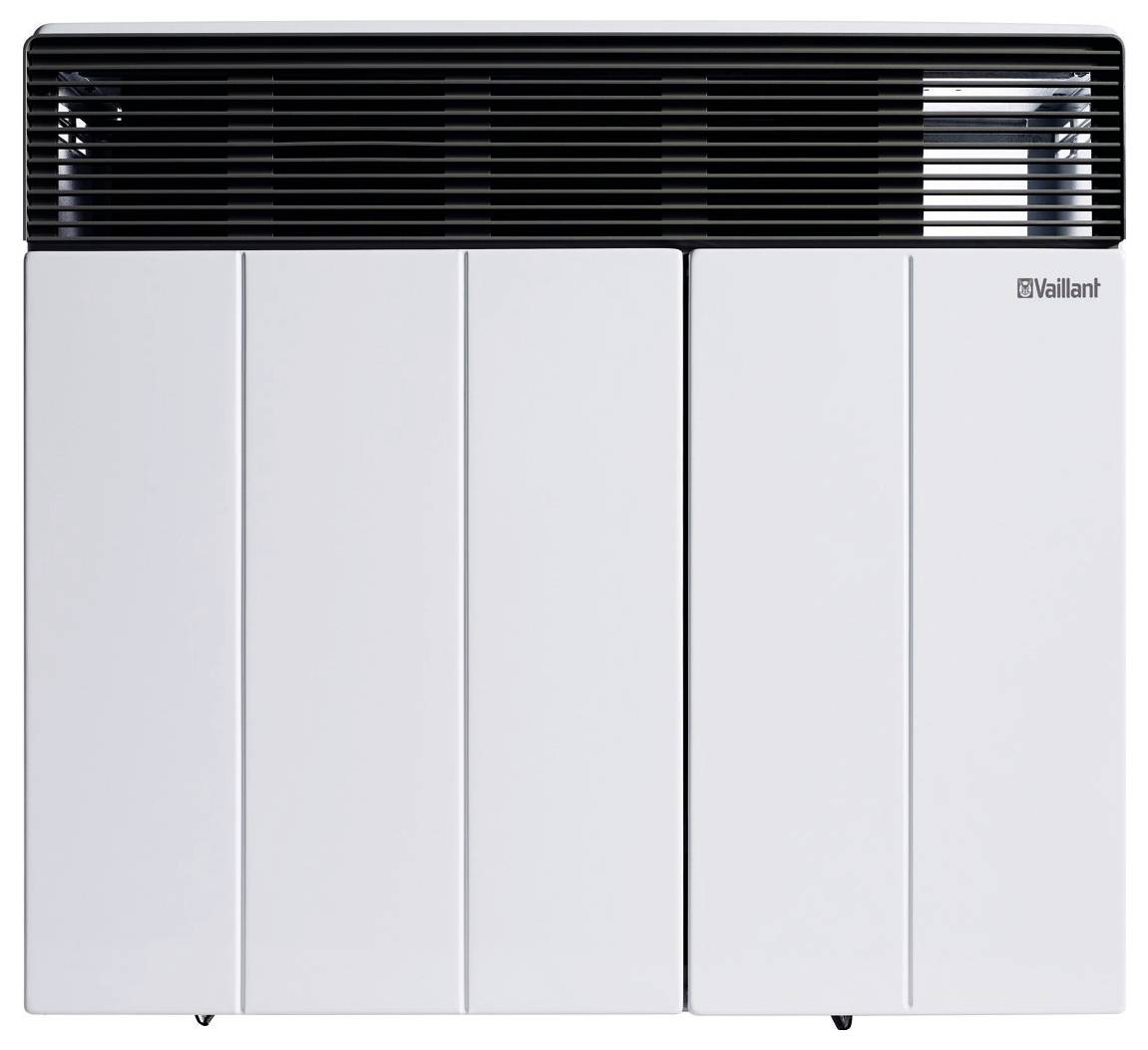

Gas-operated room heater. VGR-sine 51/4P for external wall connection, cream white/gray equipment, multi-gas unit for natural gas and liquid gases, adjusted for natural gas H, nozzles for natural gas LL enclosed, enameled heat exchanger, gas fitting with thermo-electrical ignition device and piezo ignition device, stainless steel gas burner with heat-conductive rods made from ceramic, automatic control system with built-in thermostat and modulating power control, Gas room heater for external wall connection via wall box Gas type LPG P Nominal heating power 4.7 kW Nominal heat load 5.5 kW Gas connection 12 x 1 mm Exhaust gas connection 202 mm Height/width/depth 679/706/343 mm Weight 37 kg DVGW product ID no. CE-0085BL0556 Seasonal Energy Efficiency Class D (Spectrum A++ to G)
