Vaillant 0010020668 Warm water tank A (A+ - F)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class: A
- Energy efficiency classes: A+ to F
- Material jacket: Plastic
- Material of the boiler: Steel
- Surface protection vessel: Enamelled
- 375 L capacity
- Heat transfer: Spiral
- Double separation: No.
- Wall installation: No.
- Vertical placement: Yes
- Max. Operating pressure primary: 10 bar
- Max. Operating pressure secondary: 10 bar
- With pressure reducing valve: No.
- With pressure gauge: No.
- With thermometer: Yes
- With cleaning opening: Yes
- Protective anode: Yes

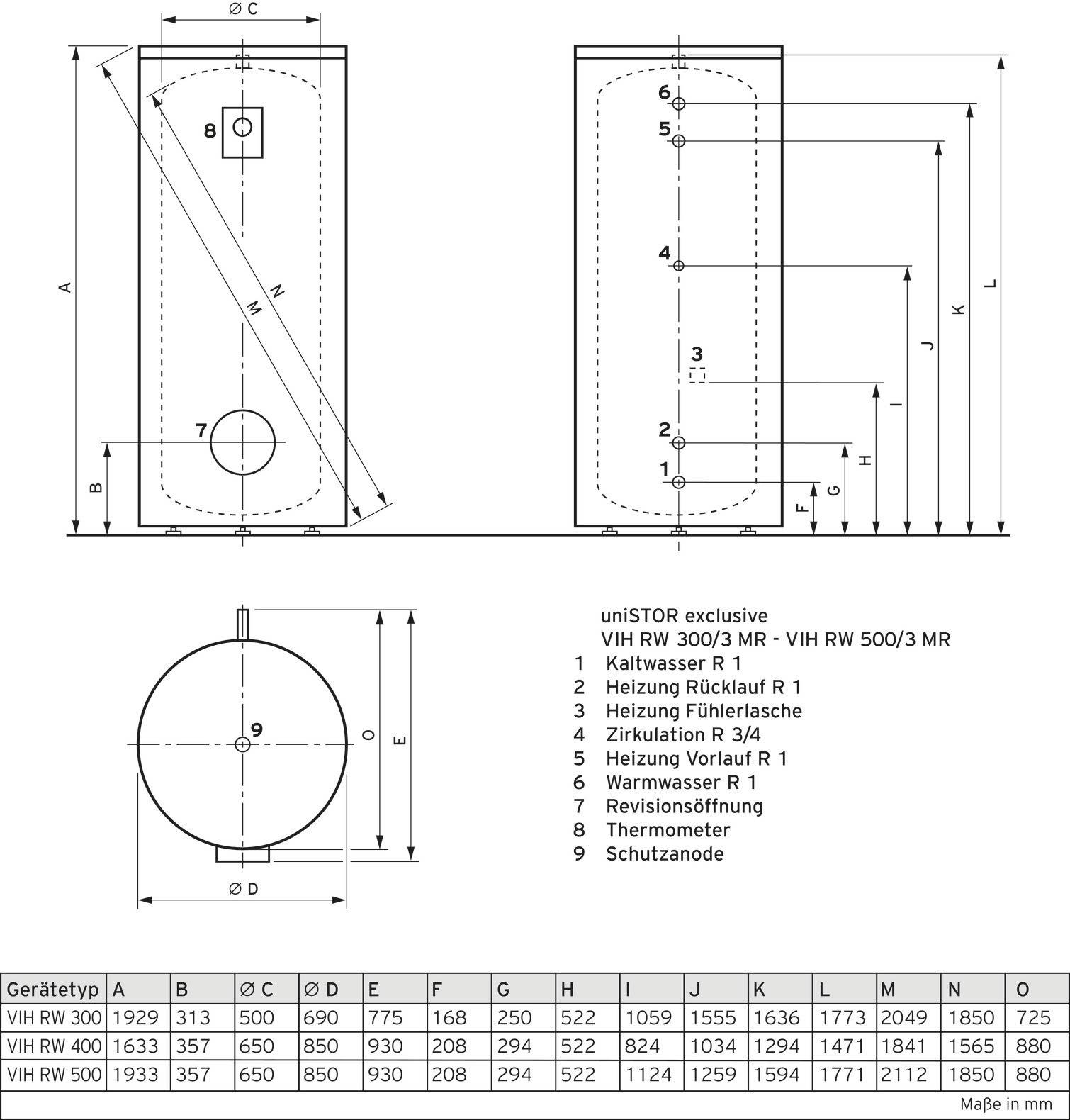

- Height: 1633 mm
- Width 850 mm
- Depth: 930 mm
- Diameter 850 mm
- Connection of cold drinking water: Conical external thread (NPT)
- Nominal diameter of cold drinking water: 1 in. (25)
- Hot water connection: Conical external thread (NPT)
- Nominal diameter of hot water connection: 1 in. (25)
- Connection for circulation cable: Conical external thread (NPT)
- Nominal diameter of circulation pipe: 3/4 in. (20)
- Pipe outer diameter Circulation pipe: 26.441 mm
- Primary connection: Conical external thread (NPT)
- Primary nominal diameter: 1 in. (25)
- Product type
Warm water tank
- Operating voltage
0 V
- Width
850.00 mm
- Height
1633.00 mm
- Depth
930.00 mm
- Manufacturer
Vaillant
A (A+ - F)
- Material
Plastic
- Nominal voltage
0 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147622 Vaillant 0010020668 Warm water tank A (A+ - F)
Description
Unistor excl. VIH RW 400/3 MR Hot-water storage, round, standing, for combination with heat pumps Product advantages: Green iQ awarded, monovalent hot-water storage tank, indirectly heated, drinking-water side (storage and pipe coil with high-quality enamel, digital storage display (temperature, storage charging and error messages), smooth-pipe register with large heat-transfer surface specially designed for heat pumps, easy installation with removable thermal insulation equipment: High-quality vacuum heat insulation, integrated external current anode, pipe coil heat exchanger, cleaning opening / flange for E-heating rod, circulation connection, transport links included Storage capacity: 375 l Heating water content: 28.9 l 0l Operating pressure: 10 bar Continuous output: 1531 l/h (62 kW) with heating inlet 60°C and tap temperature 45°C Output power: 504 l/10 min at storage temperature 60°C and tap point temperature 45°C Heat exchange area Heating: 4.42 m2 Supply/return connection R 1 Cold/hot water connection R 1 Circulation connection R 3/4 Product dimensions: Height/Width/Depth 1633/850/930 mm Tilt dimension 1841 mm Insertion dimensions without insulation: Height/Width/Depth 1471/650/650 mm Tilt dimension 1565 mm Weight Product 195 kg Weight Entry 159 kg Seasonal hot water start-up energy efficiency class A (Spectrum A+ to F)
