Vaillant 0010021139 Warm water tank A (A+ - F)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class: A
- Energy efficiency classes: A+ to F
- Material jacket: Plastic
- Tank volume: 5 l
- Material of boiler: Plastic
- Rated output: 2 kW
- Connection voltage 230 V
- Three-phase version: No.
- Frequency: 50 Hz
- Execution form: Hanging
- Socket/under-frame boiler: No.
- With night power switch: No.
- Low pressure version: Yes
- Connection to hot water pipe: No.
- Duo version: No.
- Suitable for boiling water: No.
- With water cooler: No.
- Warm up time from 10 °C to 65 °C: 9 min
- PTO at 60°C, continuous operation 5 l/min.
- Wall setup: Yes
- Horizontal placement: No.
- Vertical placement: Yes
- With temperature display: No.
- With temperature limit: Yes
- With circulation connection: No.
- Max. Permissible operating pressure: 1 bar
- With fitting: No.
- With pressure reducing valve: No.
- With thermometer: No.
- With cleaning opening: Yes
- Protective anode: No.

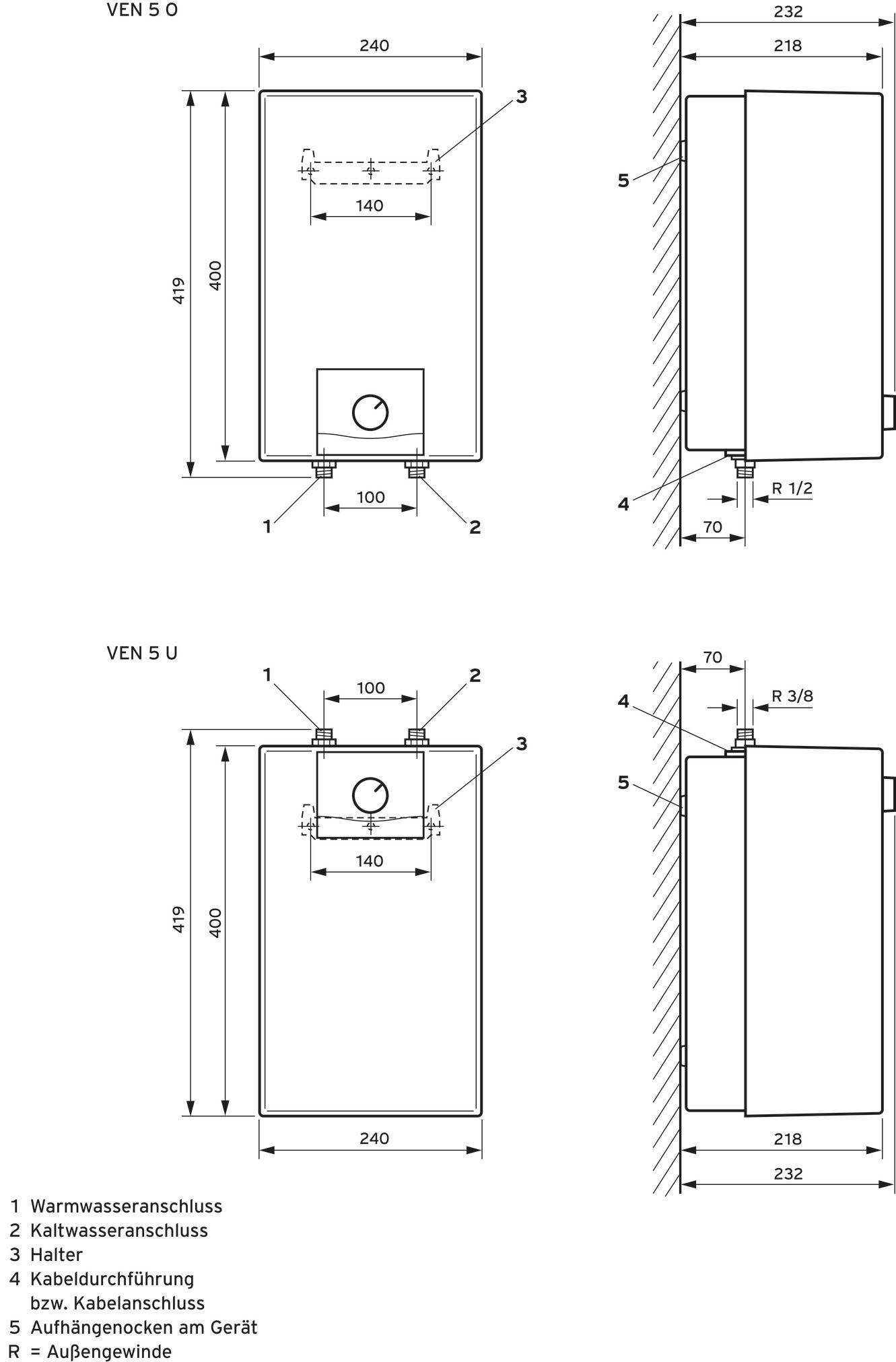

- Height: 400 mm
- Width 240 mm
- Depth: 232 mm
- Diameter: 240 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1/2 in. (15)
- Outer tube diameter of cold drinking water: 21 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1/2 in. (15)
- Hot drinking water outside tube diameter: 21 mm
- Connection circulation cable: Other
- Nominal diameter circulation cable: Other
- Connection: Tap connection: Outer thread
- Nominal diameter of tap connection: 1/2 in. (15)
- Protection class (IP) IP24
- Energy efficiency Hot water: 37%
- Tap profile XXS
- Product type
Warm water tank
- Operating voltage
0 V
2 kW
IP24
- Width
240.00 mm
- Height
400.00 mm
- Depth
232.00 mm
- Manufacturer
Vaillant
A (A+ - F)
- Material
Plastic
- Nominal voltage
0 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135657 Vaillant 0010021139 Warm water tank A (A+ - F)
Description
VEN 5/7 O plus non-pressure electric storage Over-table product advantages, low-pressure over-table wall storage, easy installation with 230 V connection cable with safety plug, energy-saving position at 60 degree C, frost protection function, activatable spray protection equipment, polypropylene water tank, continuously adjustable temperature control from 7 to 85 degree C, splash-proof (IP 24 D) and protective insulation, Safety temperature limiter can be reset Nominal volume 5 l Connection value 2 kW Supply voltage 1/N/PE 230 V/50 Hz Mixed water volume of 40°C 9.5 l Cold/hot water connection R 1/2 Height/width/depth 400/240/230 mm Weight (filled) 9 kg Seasonal warm water preparation energy efficiency class A (Spectrum A+ to F)
