Vaillant 0010021147 Warm water tank A (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class: A
- Energy efficiency classes: A+ to F
- Material jacket: Plastic
- Tank volume: 10 l
- Material of the boiler: Steel
- Rated output: 2 kW
- Connection voltage 230 V
- Three-phase version: No.
- Frequency: 50 Hz
- Execution form: Hanging
- Socket/under-frame boiler: No.
- With night power switch: No.
- Low pressure version: No.
- Connection to hot water pipe: No.
- Duo version: No.
- Suitable for boiling water: No.
- With water cooler: No.
- Warm up time from 10 °C to 65 °C: 18 min
- PTO at 60°C, continuous operation 10 l/min.
- Wall setup: Yes
- Horizontal placement: No.
- Vertical placement: Yes
- With temperature display: No.
- With temperature limit: Yes
- With circulation connection: No.
- Max. Permissible operating pressure: 7 bar
- With fitting: No.
- With pressure reducing valve: No.
- With thermometer: No.
- With cleaning opening: Yes
- Protective anode: Yes

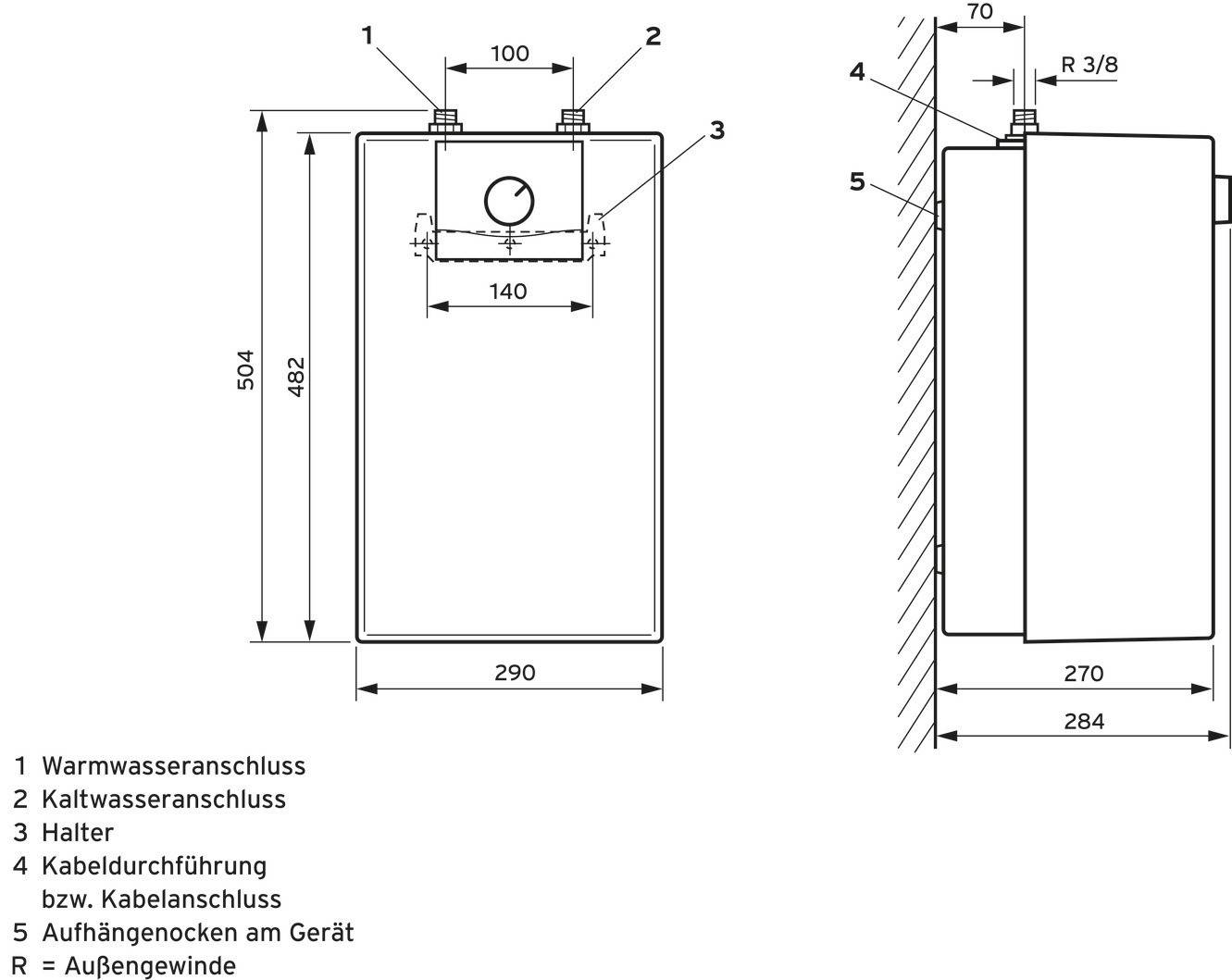

- Height: 482 mm
- Width 290 mm
- Depth: 284 mm
- Diameter 290 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 3/8 in. (10)
- Outer tube diameter of cold drinking water: 16.7 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 3/8 in. (10)
- Hot drinking water outside tube diameter: 16.7 mm
- Connection circulation cable: Other
- Nominal diameter circulation cable: Other
- Connection: Tap connection: Outer thread
- Nominal diameter of tap connection: 3/8 in. (10)
- Protection class (IP) IP24
- Energy efficiency Hot water: 37%
- Tap profile XXS
- Product type
Warm water tank
- Operating voltage
0 V
2 kW
IP24
- Width
290.00 mm
- Height
482.00 mm
- Depth
284.00 mm
- Manufacturer
Vaillant
A (A - G)
- Material
Plastic
- Nominal voltage
0 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148153 Vaillant 0010021147 Warm water tank A (A - G)
Description
VEH 10/7 U non-pressure electric memory Under-pressure desk Product advantages, pressure-resistant under-table wall storage, easy installation with 230 V connection cable with safety plug, power saving position at 60 degree C, frost protection function, activated spray protection equipment, temperature control continuously adjustable from 7 to 85 degree C, splash-proof (IP 24 D), safety temperature limiter, Re-switchable Nominal volume 10 l Connection value 2 kW Mains voltage 1/N/PE 230 V/50 Hz Mixed water volume of 40 Gr.C 18.5 l Cold/hot water connection R 1/2 Height/width/depth 482/290/283 mm Weight (filled) 18 kg Seasonal warm water consumption energy efficiency class A (Spectrum A+ to F)
