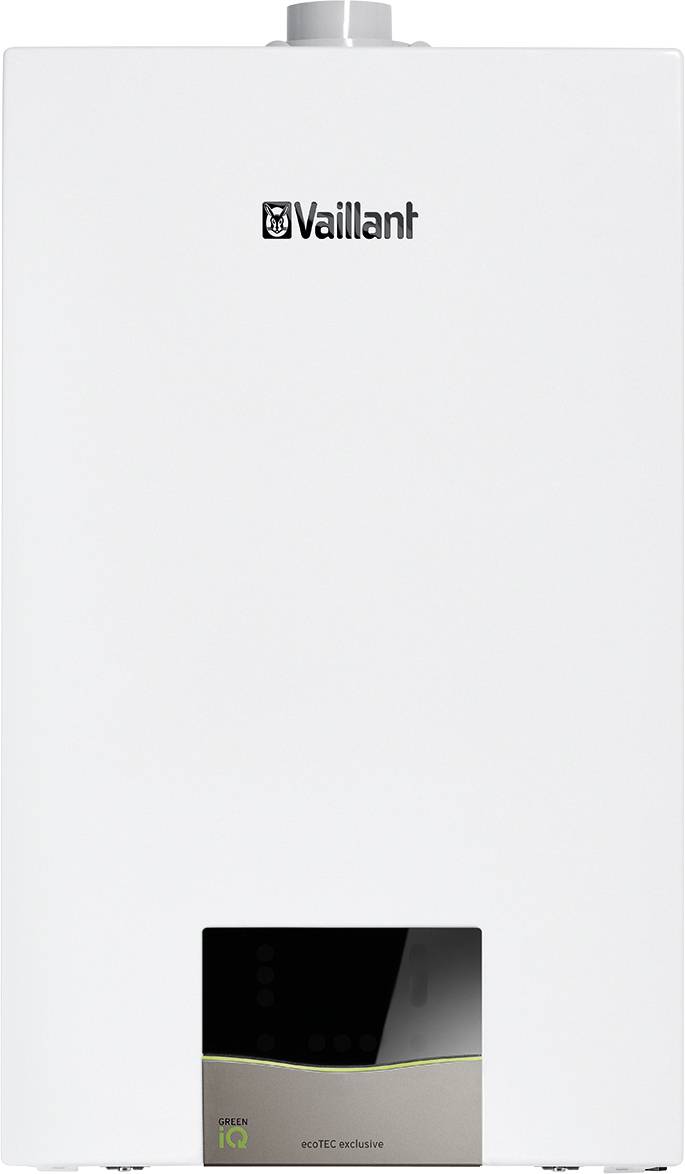

Vaillant 0010022004 Gas-fired condensing heater A (A+++ - D)
EAN:
Part number:
Item no:
Technical specifications
- Material heat exchanger: Stainless steel
- Material quality: Steel sheet
- Closed version: Yes
- Condensing: Yes
- Nominal power 80-60 °C: 25 kW
- Nominal power 50-30 °C: 27 kW
- Nominal load upper value: 27 kW
- Rated load lower value: 3.3 kW
- Adjustable heating power: Yes
- Ignition flame: Yes
- Suitable for natural gas: Yes
- Suitable for butane: No.
- Suitable for methane: No.
- Conversion kit required: No.
- Control signal on/off: Yes
- Modulating burner regulation: Yes
- Max. Cycle temperature (working temperature): -75°C.
- Max. Permissible operating pressure: 3 bar
- Min Operating pressure 1 bar
- Efficiency level 110 %/100 %
- Max. Gas footprint 25 mbar
- Min Gas footprint 17 mbar
- Nominal drinking water power: 36 kW
- Frequency: 50 Hz
- In-built filling/emptying tap: No.
- Built-in pump circuit: Yes
- Built-in pressure gauge: Yes
- In-built weather-dependent controller: No.
- Built-in expansion tank: No.
- Built-in relief valve: No.
- Built-in inlet combination: No.
- Height: 720 mm
- Width 440 mm
- Depth: 382 mm
- Forward connection: External thread (metric)
- Pipe outer diameter of inlet: 26.44 mm
- Reverse connection: External thread (metric)
- Pipe outer diameter Return: 26.44 mm
- Fuel connection: Other
- Pipe outer diameter of fuel: 20 mm
- Connection of air supply: Sleeve
- Nominal diameter duct air supply: 125 mm
- Smoke extraction connection: Sleeve
- Nominal diameter channel flue gas discharge: 80 mm
- Connection of cold drinking water: External thread (metric)
- Nominal diameter of cold drinking water: 3/4 in. (20)
- Outer tube diameter of cold drinking water: 26.44 mm
- Connection warm water: External thread (metric)
- Nominal diameter of hot water connection: 3/4 in. (20)
- Hot drinking water outside tube diameter: 26.44 mm
- Energy efficiency Hot water: 99%
- Tap profile XXL
- Energy efficiency class room heating: A.
- Energy efficiency class for hot water: A
- Heat dissipation at nominal heat discharge in operation at high temperature (P4): 24.99 kW
- Efficiency at high temperature (n4) nominal heat emission: 88.3%
- Additional power consumption at full load (elmax): 0.079 kW
- Additional power consumption in standby mode (PSB): 0.0019 kW
- Product type
Gas-fired condensing heater
- Operating voltage
0 V
36 kW
- Heater features
Web-enabled
- Dim
(L x W x H) 440 x 440.00 x 720.00 mm
- Weight
41 kg
A (A+++ - D)
- Width
440.00 mm
- Height
720.00 mm
- Length
440 mm
- Depth
382.00 mm
- Material
Non-corrosive steel
- Nominal voltage
0 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147990 Vaillant 0010022004 Gas-fired condensing heater A (A+++ - D)
Description
ECOTEC exclusive VCW 25/36CF/1-7 Gas wall heater condensing Product benefits, standard efficiency 98 % (HS) / 109 % (Hi), modulation up to 1:10, self-adapting combustion control to compensate for fluctuations in gas quality and for preventive device analysis, combustion control system IonDetect for all types of gas, Combi device with integrated hot water preparation according to the flow principle, further developed heat exchanger concept enables up to 8% efficiency Communication-capable high-efficiency pump enables guided hydraulic alignment of the heating system via APP, particularly environmentally friendly and efficient, distinguished by Vaillant Green iQ label, modern design and high-quality material use, integrated acoustic insulation mat for an especially quiet operation, Including coupon for Internet module sensoNET for mobile controller control with sensoNET APP, Illuminated graphic display with operation via touch controls, display for adjustment and monitoring of internal device functions as well as for operating the sensoDIRECT 710 single-circuit controller equipment, high-efficiency pump, water pressure sensor, volume flow sensor, pressure gauge, 10 l expansion tank, crimp connection for gas connection, integral condensation heat exchanger made of stainless steel, regulation of an external heating circuit/circulation pump and a storage charging circuit integrated, priority switching valve, Internet module sensoNET VR 921 can be ordered free of charge, illuminated graphic display with touch buttons, Integrated diagnostic interface Gas type E/LL Nominal power range Natural gas E/LL 50/30 Grd.C 3.3-27.0 kW 80/60 Grd.C 3.0-25.0 kW Storage charging power max. 36.4 kW max. Thermal load. Heating mode 27.0 kW min. Thermal load. Natural gas E/LL 3.3 kW Standard utilization 98 % (HS) / 109 % (Hi) Condensation quantity at 50/30°C, approx. 2.6 l/h standby heat loss at tK70 Grd.C 0.36% Pump volume flow at 20K (residual discharge height) 1075 l/h (mbar) Supply temperature max. 85°C Electrical connection 230/50 V/Hz Supply/Return connection DN 720 Gas connection R 3/4 Air/exhaust connection 41 mm Height/Width/Depth 20/440/382 mm Weight 80/125 kg CE PIN CE-0063CU3910 Gas heater category A Seasonal Energy Efficiency Class A (A+ to F spectrum)
