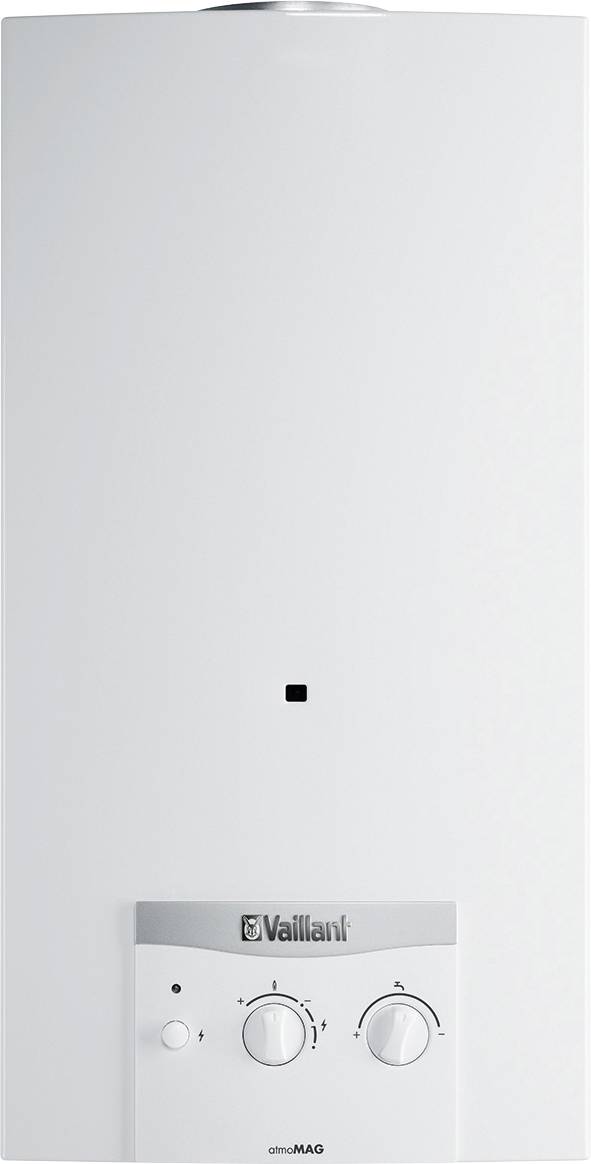

Vaillant 0010022560 Tankless heater A (A+ - F) electronical 18 kW
EAN:
Part number:
Item no:
Technical specifications
- Tankless water heaters of the type
- Nominal load upper value: 18.1 kW
- Rated load lower value: 6.4 kW
- Modulating burner regulation: Yes
- Suitable for natural gas: Yes
- Suitable for butane: No.
- Suitable for propane: No.
- Conversion kit required: Yes
- With flue gas discharge: Yes
- Combustion air supply: Open
- Concentric closed: No.
- Closed separately: No.
- Gable connection: Yes
- Exhaust/intake air diameter 110 mm
- Drinking water operation: Integrated
- Device for the shower connection: No.
- With Piezo ignition: No.
- Electronic ignition: Yes
- With flue gas fan: No.
- Gas connection: External thread
- Pipe outer diameter gas: 20.995 mm
- Nominal diameter of gas connection: 1/2 in. (15)
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1/2 in. (15)
- Outer tube diameter of cold drinking water: 20.995 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1/2 in. (15)
- Hot drinking water outside tube diameter: 20995 mm
- With train interruption: No.
- Height: 680 mm
- Width 350 mm
- Depth: 259 mm
- Tap profile: M
- Energy efficiency class: A
- Product type
Tankless heater
- Operating voltage
230 V
18 kW
- Heater features
Single-handle mixer tap
- Dim
(Ø x H) 110 mm x 680.00 mm
- Weight
10.9 kg
A (A+ - F)
- Width
350.00 mm
- Height
680.00 mm
- Length
350 mm
- (Ø)
110 mm
- Depth
259.00 mm
- Operation type
electronical
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3136718 Vaillant 0010022560 Tankless heater A (A+ - F) electronical 18 kW
Description
Warm water geyser MAG 114/1 G E gas-flow water heater for chimney connection, generator ignition Product advantages, warm water geyser, generator ignition, Opti-MOD function (device power between 40% and 100% of the rated heat output can be selected depending on demand), temperature selector, spring water supply 2.5 l, central and group supply, direct or remote tapping, thermostat mixing batteries and single-lever control system can be installed, Exhaust gas sensor in series Gas type Natural gas E Heating power 8.4-19.2 kW Warm water power 50K, max. 5.5 l/min Cold/hot water connection R 1/2 Gas connection R 1/2 Exhaust gas connection 110 mm Height/width/depth 680/350/259 mm Weight 10.9 kg CE PIN CE-1008CS3137 Warm water heating energy efficiency class A (Spectrum A+ to F)
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
