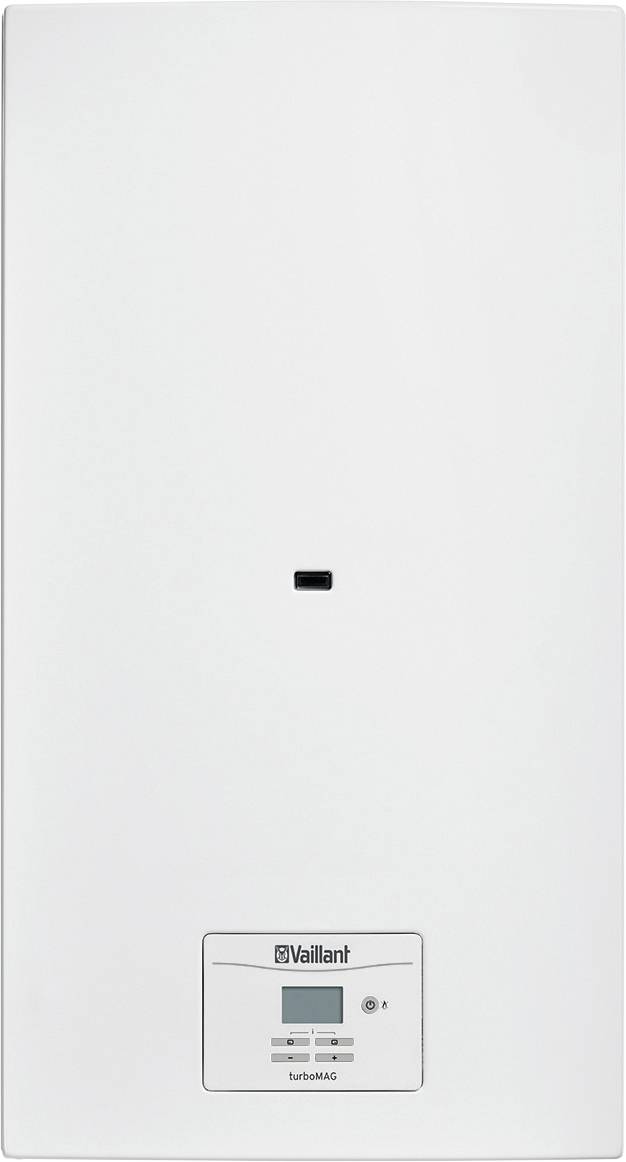

Vaillant 0010023422 Tankless heater A (A+ - F) electronical 24 kW
EAN:
Part number:
Item no:
Technical specifications
- Tankless water heaters of the type
- Nominal load upper value: 23.7 kW
- Rated load lower value: 8.6 kW
- Modulating burner regulation: Yes
- Suitable for natural gas: Yes
- Suitable for butane: No.
- Suitable for propane: No.
- Conversion kit required: No.
- With flue gas discharge: Yes
- Combustion air supply: Open
- Concentric closed: Yes
- Closed separately: Yes
- Gable connection: No.
- Exhaust/intake air diameter: Other
- Drinking water operation: Integrated
- Device for the shower connection: No.
- With Piezo ignition: No.
- Electronic ignition: Yes
- With flue gas fan: Yes
- Gas connection: External thread
- Pipe outer diameter gas: 20.995 mm
- Nominal diameter of gas connection: 1/2 in. (15)
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1/2 in. (15)
- Outer tube diameter of cold drinking water: 20.995 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1/2 in. (15)
- Hot drinking water outside tube diameter: 20995 mm
- With train interruption: No.
- Height: 682 mm
- Width 352 mm
- Depth: 566 mm
- Tap profile: L
- Energy efficiency rating: B
- Product type
Tankless heater
- Operating voltage
230 V
24 kW
- Dim
(W x H x D) 352.00 x 682.00 x 566.00 mm
A (A+ - F)
- Width
352.00 mm
- Height
682.00 mm
- Depth
566.00 mm
- Operation type
electronical
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3136689 Vaillant 0010023422 Tankless heater A (A+ - F) electronical 24 kW
Description
Warm water geyser turboMAG 145 gas-flow water heater with blower, warm water geyser, Opti-MOD function (device power between 35% and 100% of the rated heat output can be selected depending on demand), temperature selector, starting water quantity 2.3 l or 3.2 l, decentralized and group supply, direct or remote tapping, thermostat mixing batteries and single lever scope of supply Product equipment, Electronic ignition and monitoring unit integrated Mains connection 230 V/50 Hz required Gas type Natural gas E Nominal power range 8.3-26.3 kW Warm water power Min 50K 2.5l/min Warm water power Nominal 50K 13l/min Cold/hot water connection R 680 Gas connection G 3/4 Exhaust connection 22 mm Height/width/depth 1/2/350/266 mm Weight 60/100 kg CE PIN CE-1008CS3137 Warm water energy efficiency class A (Spectrum A+ to F)
This text is machine translated.
This text is machine translated.
