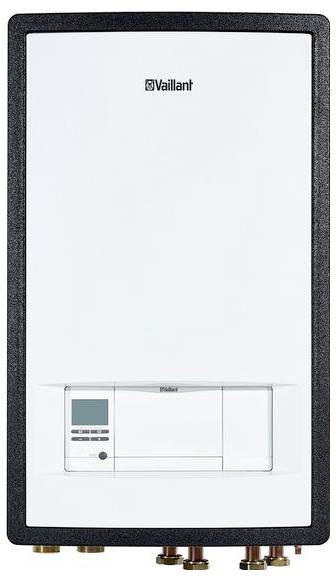

Vaillant 0010023609 Heat pump inside module Multicolour
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material jacket: Plastic
- Material fittings: Other
- Material: Copper pipe
- Primary connection: Other
- Primary nominal diameter: 1 in. (25)
- Secondary Connection: Other
- Nominal diameter secondary: Other
- Pump connection: Other
- Pump connection size: Other
- Max. Operating pressure 3 bar
- Medium temperature 25..75°C
- Type of temperature control: Electrical
- Suitable for cooling: Yes
- Suitable for heating: Yes
- Suitable for glycol: No.
- Suitable for ethanol: No.
- Design: Other
- With adapter for heat meter: No.
- With heat meter: No.
- In-built circulation pump: No.
- High-efficiency pump (according to EC 547/2012 and EC 641/2009): No.
- With pressure gauge: No.
- With control valve: No.
- With shut-off valve: No.
- With check valve: No.
- With safety valve: No.
- Safety valve opening pressure 3 bar
- With thermometer: No.
- Drain cock: No.
- With mixer motor: No.
- Suitable for servo motors: No.
- With three-way valve: Yes
- With pump ball valve: No.
- With connection temperature sensor: Yes
- With connection expansion tank: Yes
- With automatic ventilation: Yes
- Wall setup: Yes
- With wall mounting bracket: Yes
- With feet: Yes
- With differential pressure control: No.
- With heat insulation: No.
- Heating circuit controller expandable: Yes
- Distribution bars expandable: Yes
- Heat exchanger expandable: Yes
- Width 440 mm
- Height: 720 mm
- Depth: 350 mm
- Material
Plastic
- Operating voltage
0 V
- Type
others
- Factory colour
Multicolour
- Dim
(W x H x D) 440.00 x 720.00 x 350.00 mm
- Width
440.00 mm
- Height
720.00 mm
- Depth
350.00 mm
- Weight
0
- Nominal voltage
0 V
- Max. temperature
75 °C
- Min. temperature
25 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147518 Vaillant 0010023609 Heat pump inside module Multicolour
User & Safety Instructions
User & Safety Instructions 3147518 Vaillant 0010023609 Heat pump inside module Multicolour
Description
Hydraulic station VWZ MEH 97/6 for air/water WP aroTHERM plus net weight kg 10 Maximum permissible operating pressure bar 3.0 Voltage / Frequency V /Hz 400 /50 Maximum energy consumption (pump) kW 6 Electrical protection IP 20 Product advantages: Pre-assembled hydraulic station for quick and easy installation, support of the heat pump in hot water operation, support of the heat pump during the dry icing equipment: Modular electrical additional heating, up to 5.5 kW/400 V with VWL 35/6 A to VWL 75/6 A, up to 8.5 kW/400 V with VWL 105/6 A to VWL 125/6 A, 3-way change-over valve warm water, safety valve 3 bar, 10 liter ADG, DIA system with clear text display, illuminated operating pressure max. 3 bar connectors, heat source G 1 1/4, heater forward/reverse flow G 1, memory forward/reverse flow G 1 weight, operational 28 kg protection class IP 15 B height/width/depth 720/440/350 mm maximum temperature in conjunction with air/water WP aroTHERM plus, with heat pump 75°C, with heat pump + additional heating 75°C.
