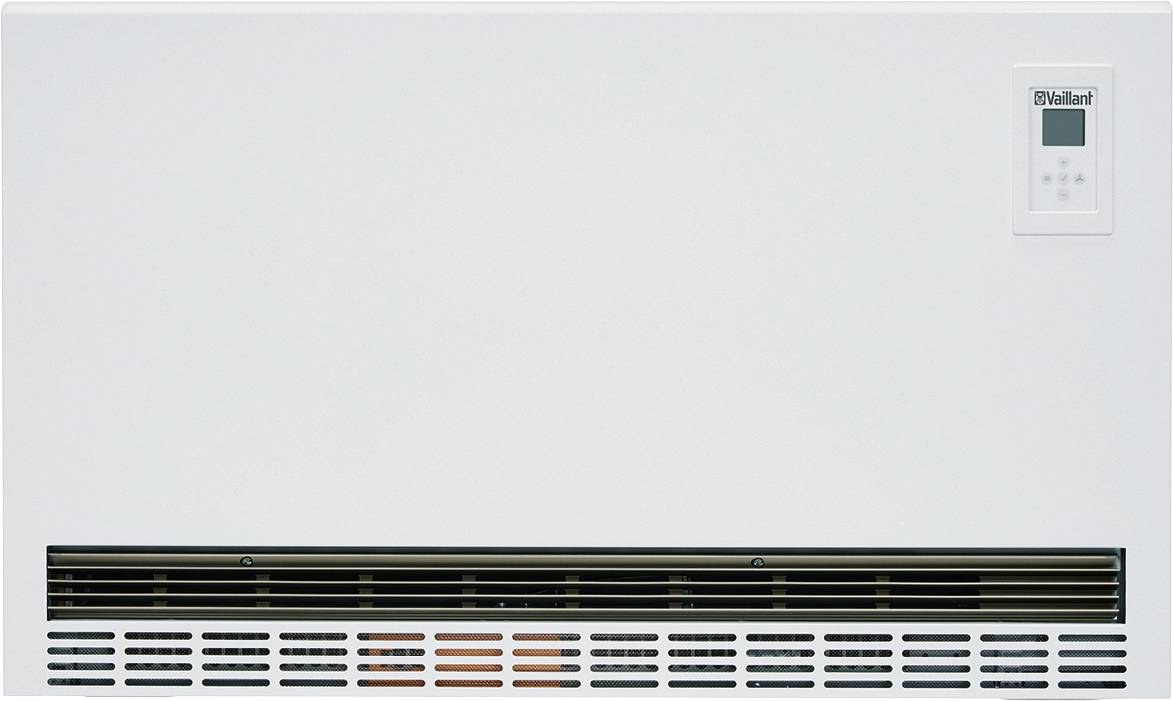

Vaillant 0010023899 Electric thermal storage unit White
EAN:
Part number:
Item no:
Technical specifications
- Design: Flat memory
- Connected load 2.7..3.6 kW
- Rated connection power 3.6 kW
- Connection voltage 400 V
- With pre-assembled heater: Yes
- With electronic charge regulator: Yes
- AC control system can be selected: Yes
- Can be connected to DC control system: Yes
- Fault indicator: Yes
- With thermal relay: Yes
- Fluff filter in the air suction area: Yes
- Number of selectable power levels: 4
- Colour: white
- Width 1224 mm
- Height: 546 mm
- Depth: 198 mm
- Weight 201 kg.
- With additional heater: No.
- Nominal voltage 1 400 V
- Nominal voltage 2 400 V
- With static discharge: No.
- With temperature controller: Yes
- Operating voltage
400 V
- Switching stages
4
3.6 kW
- Timer
Yes (built-in)
- Heater features
Open-window detection
- Factory colour
White
- Dim
(L x W x H) 1224 x 1224.00 x 546.00 mm
- Weight
201.00 kg
- Height
546.00 mm
- Length
1224 mm
- Depth
198.00 mm
- Width
1224.00 mm
- Type
Flat memory
- Nominal voltage
400 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148110 Vaillant 0010023899 Electric thermal storage unit White
Description
Electronic storage heater VSF 360/5 EL with electrical Charge regulator Product advantages, energy-efficient storage charging thanks to exact residual heat detection/storage recharge via the electronic charge regulator, electronically controlled heat release via integrated discharge controller with time-control and window-open detection, room temperature appropriate to the requirement thanks to a time-adjustable target setting (adaptive start function), improved heat retention capacity through enclosed storage tanks and high-quality heat insulation, low fan noise due to fan directly on the rear wall equipment, integrated, electronic charge and discharge controller with time control (weekly program), open window detection and adaptive start function (ERP Ready), switchable, fully pre-wired tubular heaters made of high heat-resistant stainless steel, integrated wall spacer grille, standard lint filter integrated, high quality sheet steel housing, color RAL 9016 traffic white, uniform core stone size, conversion kit for two-circuit memory, additional heating and interface for DC control input available as accessories, stand consoles, wall, wall, / Support consoles and external room temperature controllers available as accessories Heating output 3.6 kW Electrical Power consumption at 3/N/PE 400V/50Hz, 100% 3.6 kW Electric. Power consumption at 3/N/PE 400V/50Hz, 92% 3.3 kW Electric. Power consumption at 3/N/PE 400V/50Hz, 84% 3.0 kW Electric. Power consumption at 3/N/PE 400V/50Hz, 75% 2.7 kW Dimensions (unpacked) Height/Width/Depth 546/1224/198 mm Weight unpacked 201 kg
