Vaillant 0020174067 Fittings kit Doesn't apply
EAN:
Part number:
Item no:
Vaillant Safety Group 6 to 12 bar 0020174067
Technical specifications
- Material of housing: Brass
- Nominal diameter: 1/2 in. (15)
- Pipe outer diameter of all connections 21 mm
- Connection: External thread
- Max. Tank capacity: 6 kW
- Design: Without mixed battery
- Print level item: PN 6
- Surface protection: Other
- With couplings: Yes
- With crimping set: No.
- With siphon: Yes
- Interchangeable reversing flap: No.
- Shutter cock: Yes
- Length of connection 1 20 mm
- Working length of connection 1: 30 mm
- Length of connection 2 20 mm
- Working length of connection 2: 30 mm
- Product type
Fittings kit
- Operating voltage
0 V
Doesn't apply
- Material
Brass
- Nominal voltage
0 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148852 Vaillant 0020174067 Fittings kit Doesn't apply
Description

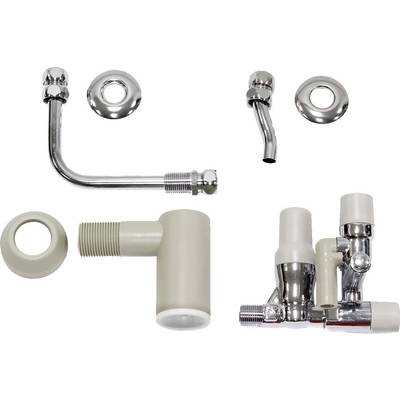

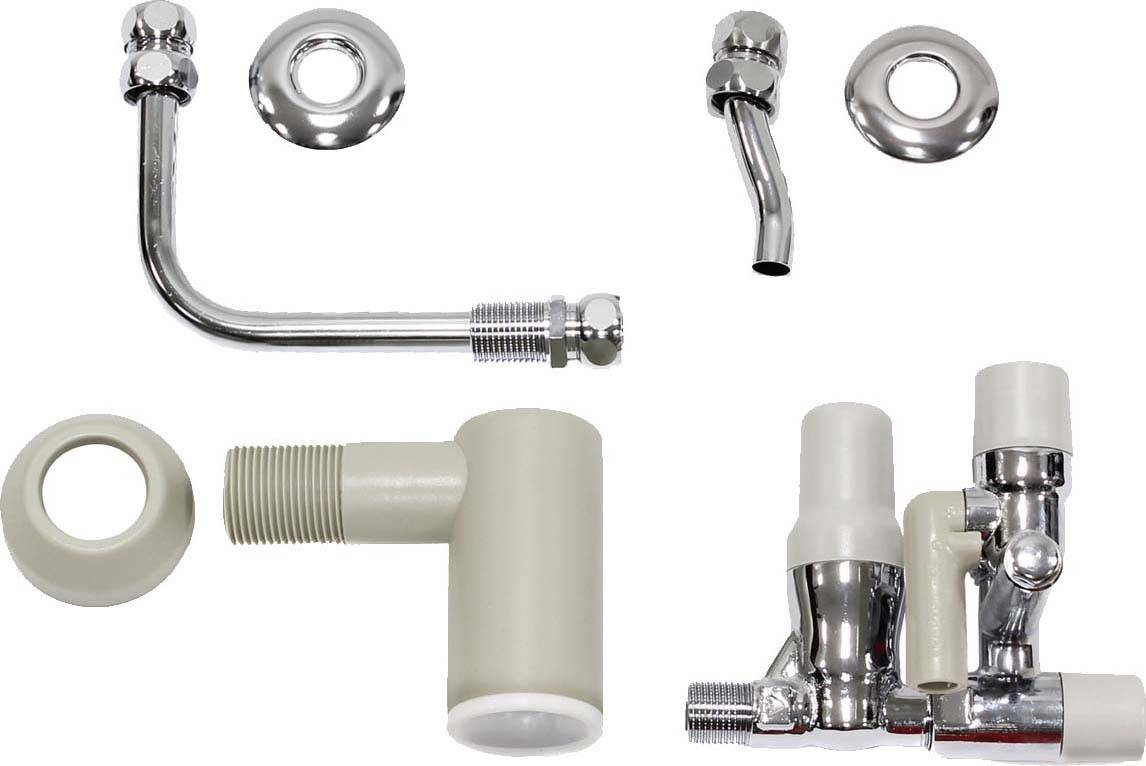

Safety group with pressure reducer and pipe set R 1/2, flush-mounting pressure reducing valve with screw-out dirt trap, membrane safety valve (type-tested, 6 bar) with test nozzle for manometer, valve block with shut-off valve, check valve with test device, drain funnel and connection pipe. Sound protection PA IX 1261/l for excess mains pressure over 6 to 12 bar
