Vaillant 0020204489
EAN:
Part number:
Item no:
Technical specifications
- Material of pump housing: Steel
- Max. lifting height 10 m
- Max. Operating pressure 6 bar
- Double pump: No.
- Electrical connection: Connection cable with plug
- Rated voltage 220..230 V
- Number of phases: 1
- Frequency: 50 Hz
- Pump circuit: Other
- Speed control motor: External (included)
- Type of speed control: Infinitely variable
- Communication: Integrated and prepared
- Wireless standard Bluetooth: No.
- Wireless standard WLAN 802.11: No.
- Wireless standard 5G: No
- Interface signal 0-10 V / 2-10 V: No.
- Interface signal 0-20 mA / 4-20 mA: No.
- Interface PT100 / PT1000 / PTC: No.
- Pulse Width Modulation (PWM) interface: Yes
- Pulse counter interface: No.
- Potential-free switch contact: No.
- With RS-485 communication interface: No.
- With RS-232 communication interface: No.
- Supports protocol for Ethernet/IP: No.
- Supports protocol for KNX: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for CAN/CANopen: No.
- Supports protocol for Modbus TCP: No.
- Supports protocol for Modbus RTU: No.
- Supports protocol for BACnet MS/TP: No.
- Supports protocol for BACnet IP: No.
- Supports protocol for LON/LonWorks: No.
- Supports protocol for LIN Bus: No.
- Medium temperature (continuous operation): 110..130°C.
- Inlet side connection: Outside gas cylindrical BSPP (ISO 228-1)
- Connection standard inlet side: ISO 228-1
- Outlet side connection: Gas cylindrical BSPP outside thread (ISO 228-1)
- Connection standard outlet side: ISO 228-1
- Mounting length 110 mm
- Content
1 pc(s)
- Recess length
110 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148318 Vaillant 0020204489
Description

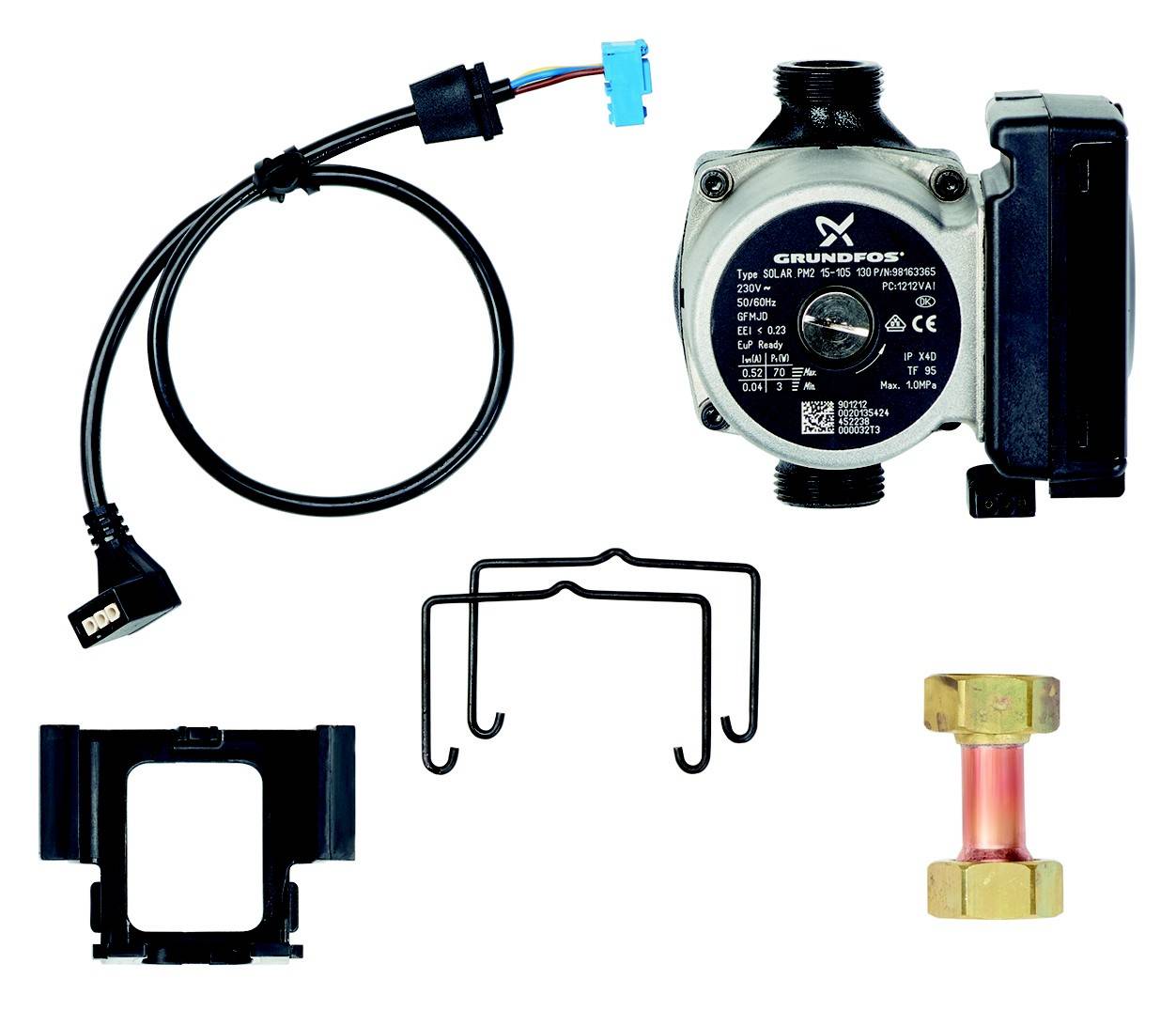

Second solar pump for auroFLOW VMS 8 D for expansion of the delivery height High-efficiency pump for extension of the delivery height up to 12.5 m. It is required at 3 Collector in row and corresponding height or distance from collector to reservoir.
