Vaillant 0020249532
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Brass
- Version: Horizontal / vertical
- Suitable for heating: Yes
- Length 128 mm
- Effective principle: Magnet
- Flow rate 3.6 m³/h.
- With removable filter: No.
- Filter capacity 0.75 l
- With integrated refill machine: No.
- Length
128 mm
- Content
1 pc(s)
- Material
Brass
- Type
horizontal/vertical
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147466 Vaillant 0020249532
Description

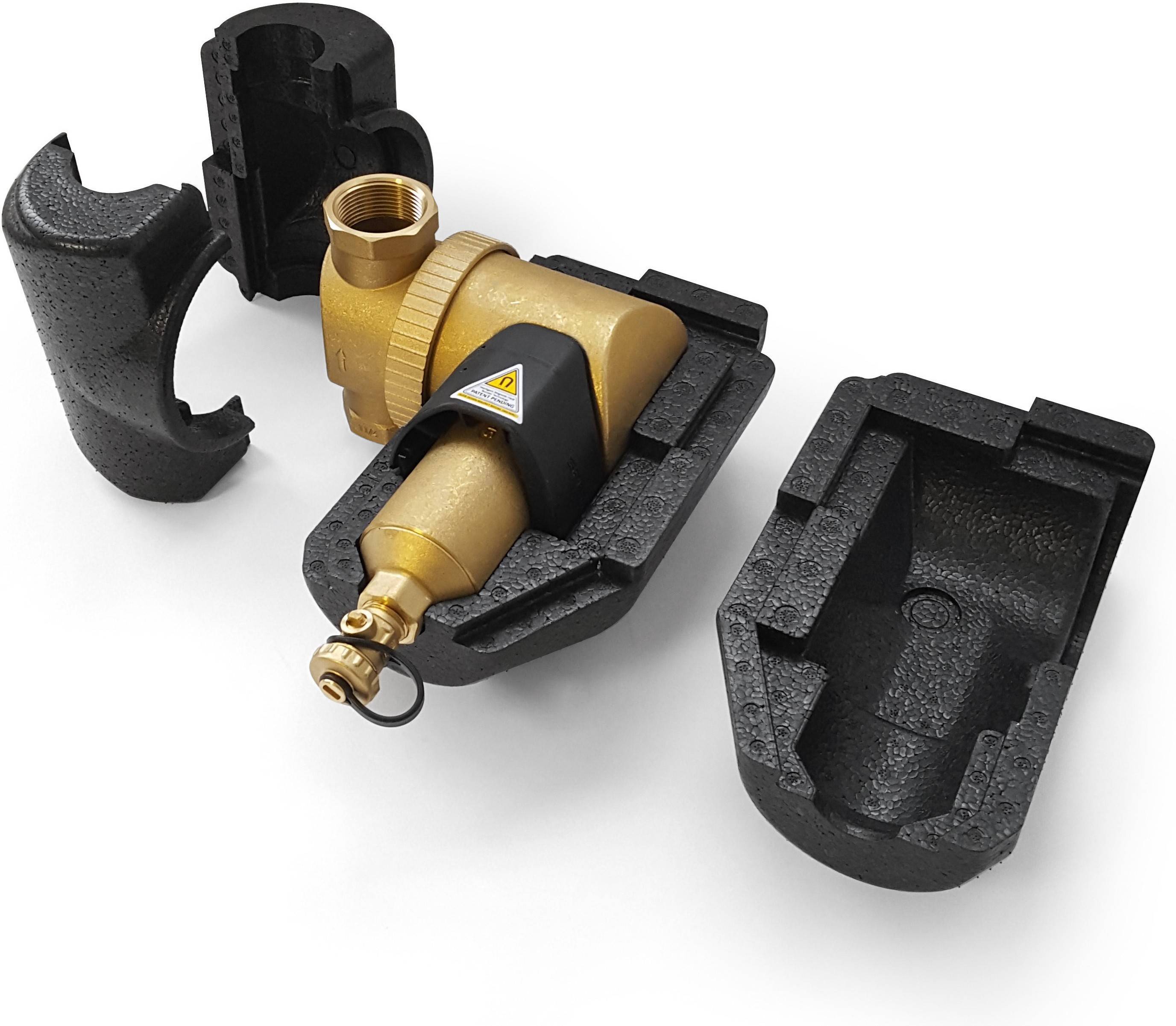

40-63 kW magnetic filter for surface-mounted connection situation including heat insulation (GEG). Filtering of magnetic and non-magnetic dirt particles from the heating water (sludge separator). This protects individual components in the heating system. Connection dimensions Rp 1 1/4 Dimensions: 280 X 180 X 230 (H x B x T) Max. Flow rate 1.0 m/s Max. Volume flow 3.6 m3/h Can be used for ECOTEC plus VC 406, 636/5-5
