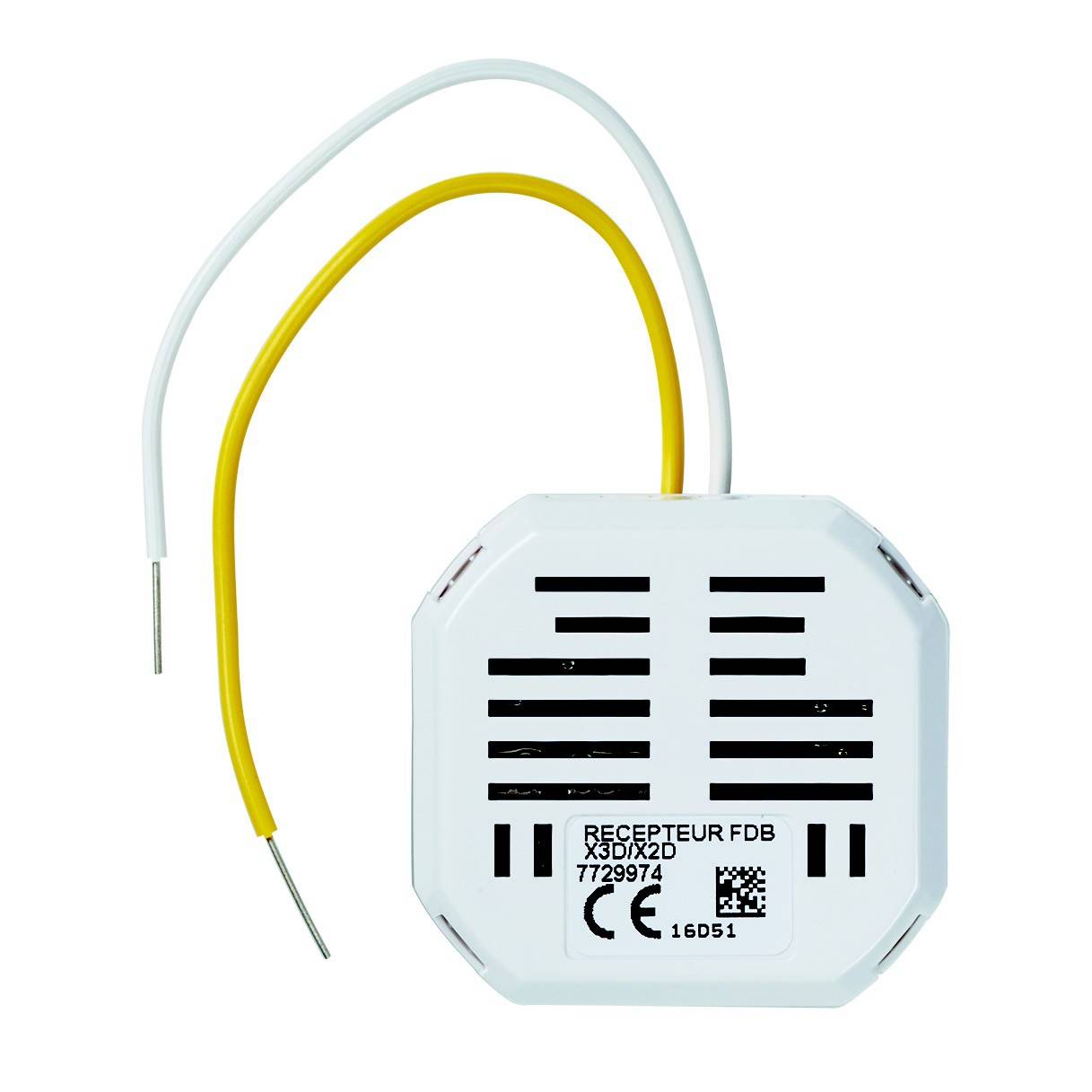

Vaillant 0020254295 Cordless receiver Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: No.
- Bus system KNX radio: No.
- Bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bidirectional radio: Yes
- Mounting type: Flush-mounted
- Width in division units: 1
- On-site/manual operation: Yes
- With LED display: Yes
- Number of digital inputs: 1
- Max. switching capacity 2300 W
- Max. Switching capacity LED 2300 W
- 2300 W power output
- Suitable for C-Load: No.
- Max. Number of switching outputs: 1
- Max. switching current 10 A
- Rated current 10 A
- Rated operating voltage: 230 V
- Different phases can be connected: No.
- With bus connection: No.
- Bus module removable: Yes
- Min Depth of the device socket 33 mm
- Modular expansion option: No.
- Protection class (IP) IP20
- Product type
Cordless receiver
- Display
Yes
- Compatible with
Heaters
- Mounting type
Flush mount
- Operating voltage
230 V
- Width
47 mm
- Height
50 mm
- Length
33 mm
IP20
- Dim
(L x W x H) 33 x 47 x 50 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148093 Vaillant 0020254295 Cordless receiver Flush mount 1 pc(s)
Description
Bi-directional radio receiver VR 45 (868 MHz) for installation in the flush-mounted socket Operating voltage: 230 V/50 Hz Switching capacity: 10 A (2300 W max.) Ambient temperature: 0°C, 50°C Height x Width x Depth: 50 x 47 x 33 mm
This text is machine translated.
This text is machine translated.
