Vaillant 10016349 Air con
EAN:
Part number:
Item no:
Product data sheetTechnical specifications
- Suitable for wall mounting: Yes
- Suitable for ceiling mounting: No.
- Suitable for floor mounting: No.
- Left/right orientation changeable: No.
- Max. Air volume at 200 Pa: 360 m³/h.
- Max. Air volume at 250 Pa: 330 m³/h.
- Max. Air volume at 300 Pa: 300 m³/h.
- Engine type: EC (electronically commutation)
- Voltage: 230 V
- Frequency: 50 Hz
- Number of phases: 2
- Electrical connection: Connection cable with protective contact plug
- With digital display: Yes
- Supports protocol for MODBUS: No.
- With wired control unit: No.
- Suitable for wired control unit: Yes
- Suitable for wireless remote control: No.
- With zone control: No.
- Suitable for zone controllers: Yes
- With internal humidity sensor (RH): Yes
- Suitable for (extra) RH sensor: No
- With internal carbon dioxide (CO2) sensor: No.
- Suitable for (extra) carbon dioxide (CO2) sensor: Yes
- With heating element: No.
- Suitable for connection to the central heating system: Yes
- With bypass: Yes
- With constant pressure control: No.
- With constant flow control: Yes
- Type of frost protection: Other
- Nominal diameter of channel 180..210 mm
- Connections outside: Drawer
- Inner side connections: Slide-in
- Housing connection below: No.
- Housing connection left side: No.
- Housing connection on right side: No.
- Home connection up: Yes
- Roof connection sides: No.
- Top side roof connection: No.
- ISO 16890-1:2016: ISO ePM1
- Efficiency of the supply filter according to ISO 16890-1:2016: 80 %
- Exhaust air filter according to ISO 16890-1:2016: ISO Coarse
- Efficiency of the exhaust filter according to ISO 16890-1:2016: 65 %

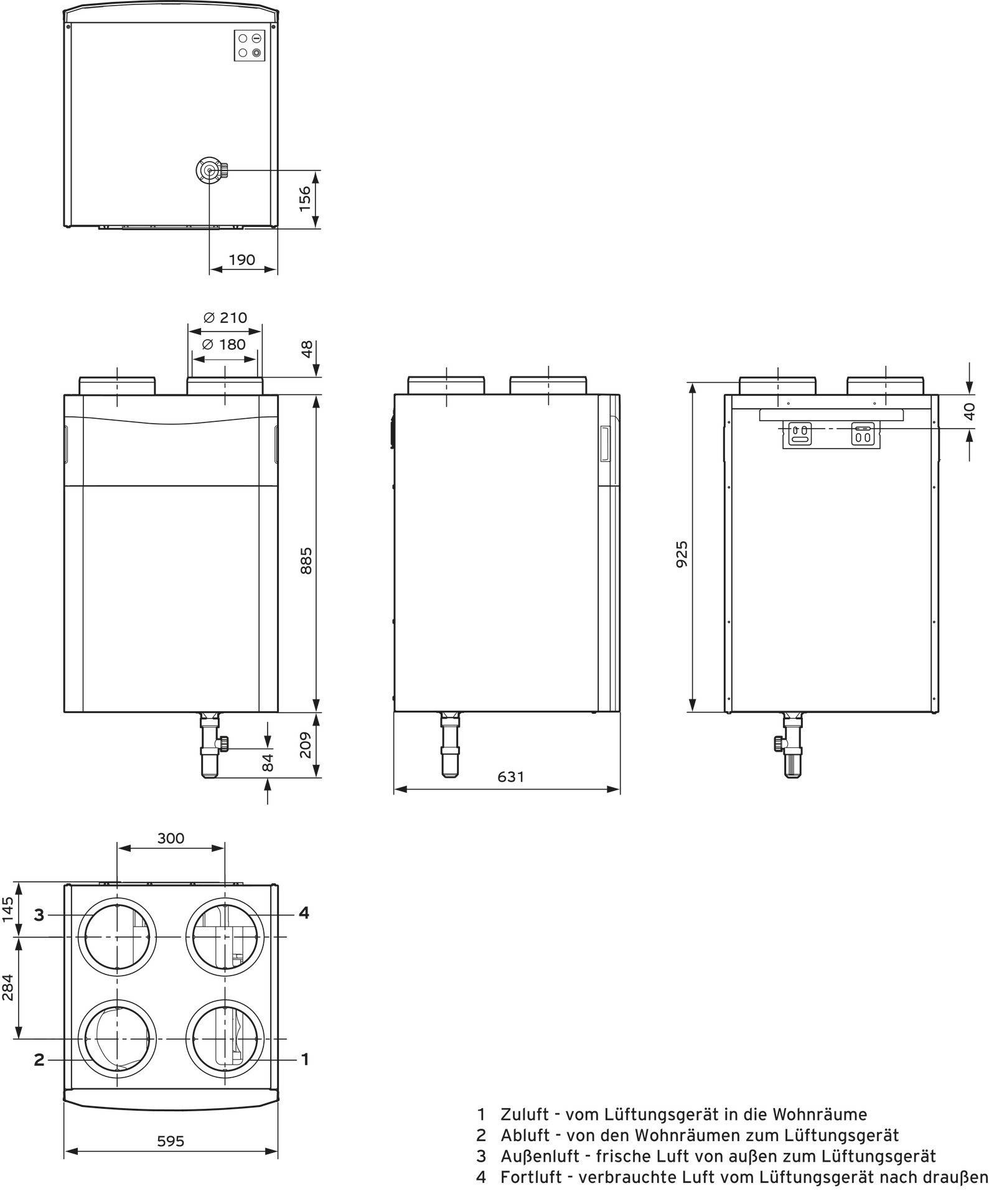

- Height: 885 mm
- Width 595 mm
- Depth: 631 mm
- Weight: 45.2 kg
- Product type
Air con
- Content
1 pc(s)
- Weight
45.20 kg
- Dim
(W x H x D) 595.00 x 885.00 x 631.00 mm
- Width
595.00 mm
- Depth
631.00 mm
- Height
885.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147937 Vaillant 10016349 Air con
Description
Central air ventilation device VAR 360/4 E with volumetric flow fans (either constant or variable) for supply and exhaust air and high-quality enthalpy heat exchangers for ventilation of homes and single family houses Special features, improved air quality through Agua Care plus, integrated Enthalpy cross-flow heat exchanger with moisture recovery as standard, integrated humidity sensor, demand-dependent regulation of air flow, Ventilation unit with very Hohem efficiency, integrated modulated bypass, highly efficient EC-fan motors, passive house certificate, connection possibilities for CO2 sensors, compatible with VR900 equipment, illuminated intuitively operable device control panel, volume control of the inlet and exhaust fans either constant or variable (automatic mode), highly efficient Enthalpy cross current heat exchanger, F7 dust filters for supply air and G4 for exhaust with particularly large surface, Variable connection supports for air channels with 150 mm (can be plugged into device connections) and 180 mm (connect with bush), optional remote control device with 3-stage switch plus automatic mode, optionally connectable pre-heating register air volume current (min-max) 60-360 m3/h conveyor at max. Vol.-power 200 Pa power consumption (min-max) 23-342 W mains voltage 230 V/50 Hz efficiency according to PHI 81% air connections 4x 210/180 mm Sound power level 55 dB(A) Filter class air supply (DIN EN 779 / ISO 16890) F7 / ISO ePM1 80% filter class waste air (DIN EN 779 / ISO 16890) G4 / ISO Coarse 65% Height/Width/Depth 885/595/631 mm Weight 45.2 kg Energy efficiency class A (Spectrum A+ to G)
