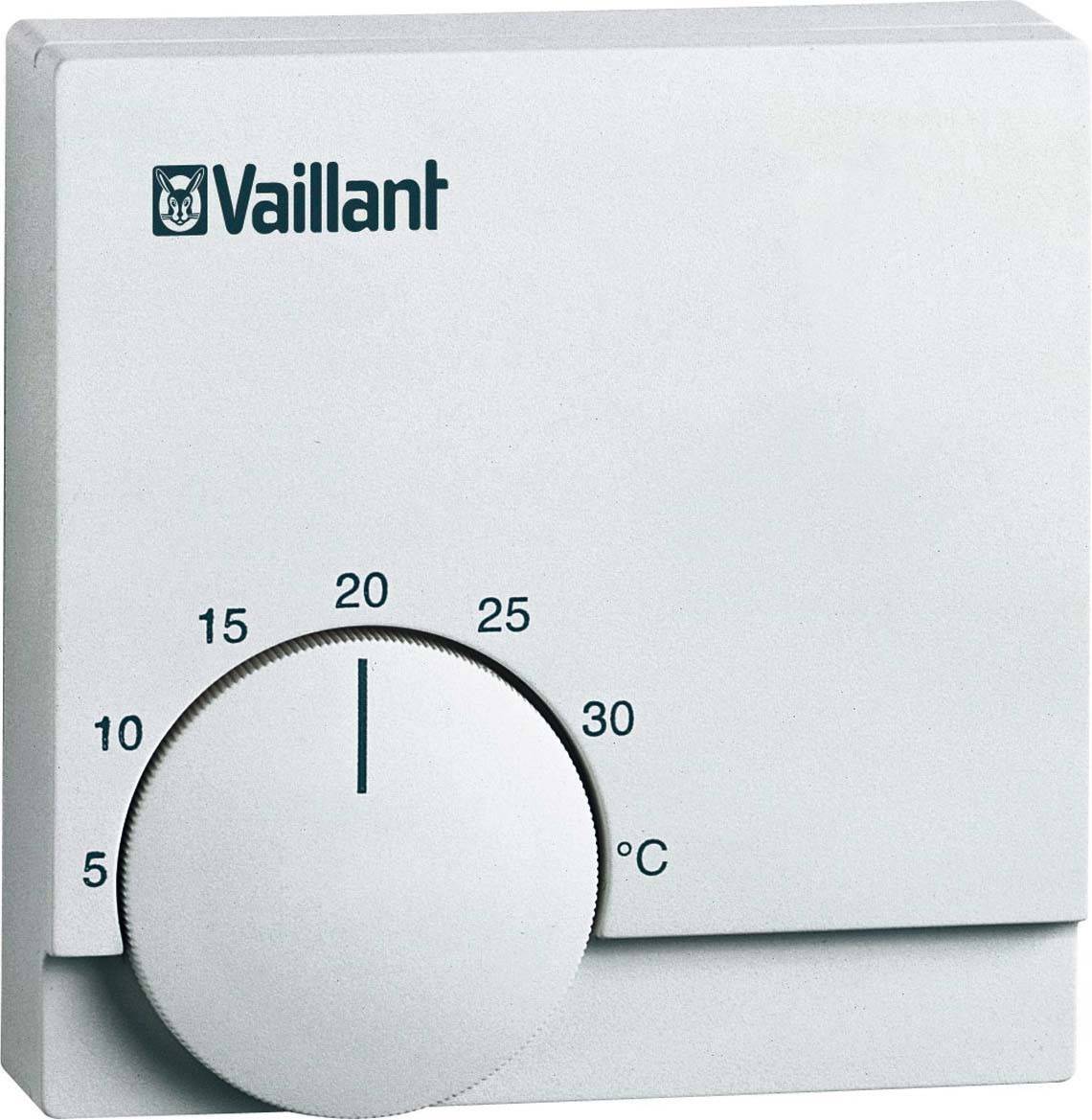

Vaillant 300613 Temperature controller Surface-mount On/Off 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Version: On/off
- Power supply type 230 V AC
- Connection 2-wire
- With receiver: No.
- Measuring range 5 - .30 ° C
- External sensor: No.
- Thermal feedback: None
- Control characteristics: P
- Suitable for heating: Yes
- Number of Heating Outputs: 1
- Suitable for cooling: No.
- Difference value: 1..10 K
- Adjustable difference: No.
- Temperature read: No.
- With noise level indicator: No.
- Sensor/sensor type: Bimetal
- Mounting type: Surface-mounted
- With display: No.
- Operation: Rotation
- Hidden operation: No.
- With drinking water circuit: No.
- Contact version: Change-over (NO/NC)
- Max. Contact voltage 230 V.
- Max. Contact load 10 A.
- Protection class (IP) IP30
- Protection class (NEMA): 1
- Explosion-proof: No.
- Colour: white
- RAL number: 9010
- Height: 75 mm
- Width 75 mm
- Depth: 29 mm
- Temperature controller class: III.
- Power consumption in standby mode (solststandby): 1 W.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Temperature controller
- Operation type
thermal
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Heaters
- Mounting type
Surface-mount
- Operating voltage
230 V AC
- Factory colour
White
- Similar RAL
9010
- Width
75.00 mm
- Height
75.00 mm
- Length
75 mm
not cloud-enabled
IP30
- Dim
(L x W x H) 75 x 75.00 x 75.00 mm
- Type
On/Off
- Contact type
1 change-over
- Min. temperature setting
5 °C
- Depth
29.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148649 Vaillant 300613 Temperature controller Surface-mount On/Off 1 pc(s)
Description
Room temperature controller VRK 121 for 2-point control with control range restriction, mounting on flush or flush-mounted socket, color white
This text is machine translated.
This text is machine translated.
