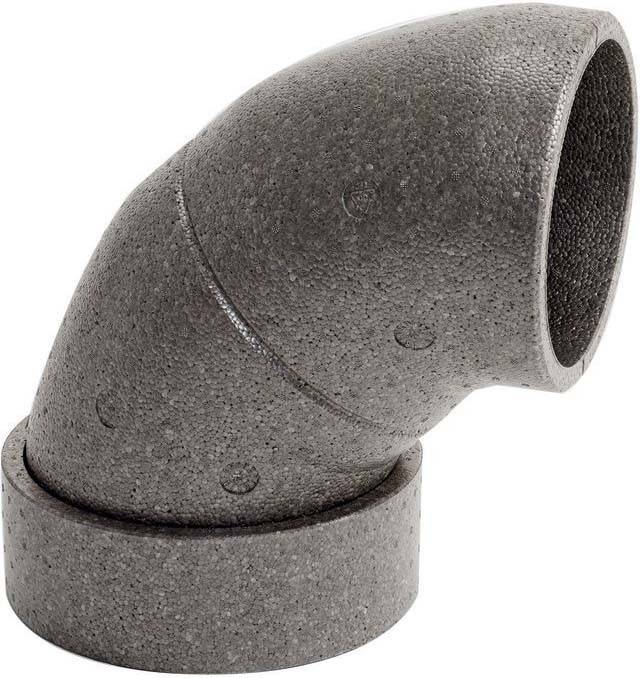

Vaillant Arc Suitable for pipe diameter: 180 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Hard foam duct (full insulation)
- Material of channel: Other
- Material Quality Channel: Other
- Wall thickness channel 15 mm
- Production type: Other
- Insulation material: Expanded polypropylene (EPP)
- Insulation thickness 15 mm
- Surface protection external: Untreated
- Surface protection inside: Untreated
- Perforated inner wall: No.
- Outer color: Grey
- Nominal diameter of channel 180 mm
- Connection 1: Adhesive sleeve
- Connection 2: End of channel
- With slider profile: No.
- With slide-on terminal: No.
- With pre-mounted seal: No.
- Curved design: Straight angle
- Angle of sheet: 90 °
- Working length of connection 1: 320 mm
- Working length of connection 2: 320 mm
- Plug-in length 40 mm
- Embeddable in concrete: Yes
- Anti-bacterial version: No.
- Anti-static version: No.
- Type
Hard foam duct (full insulation)
- Suitable for pipe Ø
180 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147723 Vaillant Arc Suitable for pipe diameter: 180 mm
Description
EPP arc diameter 210/180 mm, 90 Gr. With integrated joint sleeve, divisible to 2 x 45 degrees, color gray
