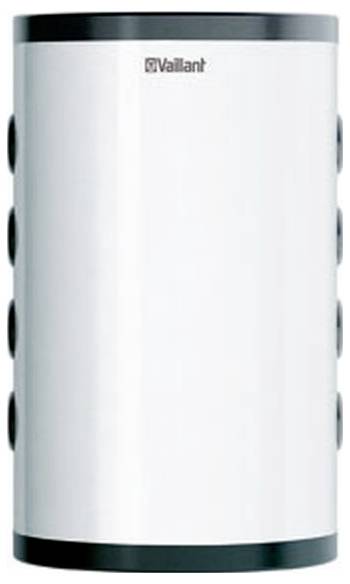

Vaillant Buffer tank EEC: A (A - G) 0010021456
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class: A
- Energy efficiency class spectrum: A to G.
- Suitable for heat pump: Yes
- Suitable for central heating: Yes
- Mounting type: Floor model
- Material barrel: Steel
- Surface protection inner side: Untreated
- Surface protection Outside: Other
- Material jacket: Plastic
- With insulation: Yes
- Insulation material: Polyurethane (PUR)
- 101 L capacity
- Height: 932 mm
- Diameter 563 mm
- Diameter without insulation: 550 mm
- Max. Operating pressure 3 bar
- max. temperature 95 °C
- Connection 1: External thread
- Connection dimension 1: 1 1/2 inch
- Connection 2: External thread
- Connection dimension 2: 1 1/2 inch
- With immersion tube: Yes
- With electric heating rod: No.
- With connection temperature sensor: Yes
- Number of connections Temperature sensor: 2
- Connection dimension temperature sensor: Other
- Product type
Buffer tank
A (A - G)
- Height
932.00 mm
- UKCA
yes
Documents & Downloads
Security datasheet
Security datasheet 3147755 Vaillant Buffer tank EEC: A (A - G) 0010021456
Description
Buffer memory VPS R 100 for use with heat pumps aroTHERM, flexoCOMPACT and flexoTHERM Usage possibilities: As series buffer or separator in heat pump systems for ensuring the operating conditions Suitable for the cooling operation Including wall bracket for a possible attachment to the wall Memory nominal content 101 l Net weight 34 kg max. Operating pressure 3 bar Height / Diameter 932/550 mm Connections: 8x G 1 1/2 Wall Mount Note: Sensor VR 10 not included in delivery Energy efficiency class A (spectrum A+ to F)
This text is machine translated.
This text is machine translated.
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
