Vaillant Buffer tank EEC: B (A+ - F) 0010021457
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency rating: B
- Energy efficiency class spectrum: A to G.
- Suitable for heat pump: Yes
- Suitable for central heating: Yes
- Mounting type: Floor model
- Material barrel: Steel
- Surface protection inner side: Untreated
- Surface protection Outside: Other
- Material jacket: Plastic
- With insulation: Yes
- Insulation material: Polyurethane (PUR)
- Content :202 l
- Height: 1202 mm
- Diameter 600 mm
- Diameter without insulation: 600 mm
- Max. Operating pressure 3 bar
- max. temperature 95 °C
- Connection 1: External thread
- Connection dimension 1: 1 1/2 inch
- Connection 2: External thread
- Connection dimension 2: 1 1/2 inch
- With immersion tube: Yes
- With electric heating rod: No.
- With connection temperature sensor: Yes
- Number of connections Temperature sensor: 2
- Connection dimension temperature sensor: Other
- Product type
Buffer tank
B (A+ - F)
- Height
1202.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147789 Vaillant Buffer tank EEC: B (A+ - F) 0010021457
Description

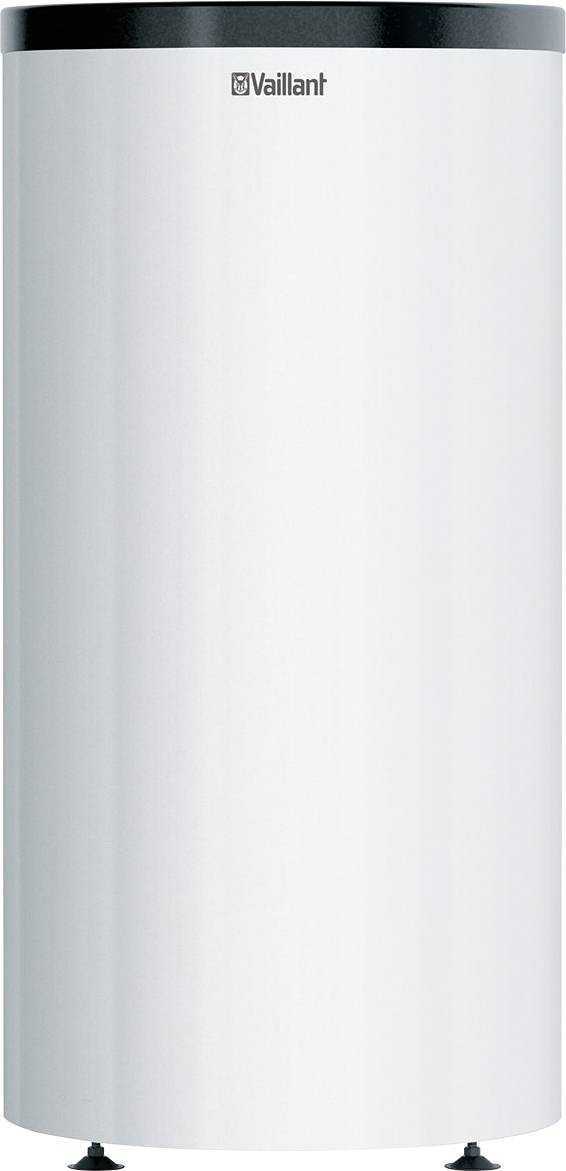

Buffer memory VPS R 200 for use with heat pumps aroTHERM, flexoCOMPACT and flexoTHERM Application possibilities: As series buffer or separator in heat pump systems to ensure the operating conditions Suitable for the cooling operation Memory nominal content 202 l Net weight 44 kg max. Operating pressure 3 bar Height / Diameter 1202/600 mm Connections: 8x G 1 1/2 Note: Sensors VR 10 not included in delivery Energy efficiency class B (spectrum A+ to F)
This text is machine translated.
This text is machine translated.
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
