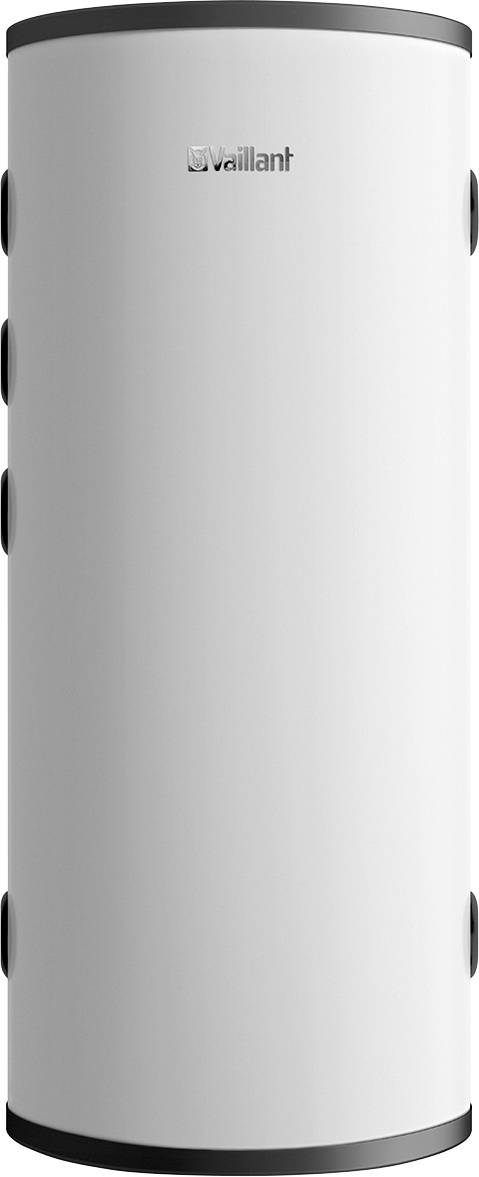

Vaillant Buffer tank EEC: B (A+ - F) 0010034126
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency rating: B
- Energy efficiency class spectrum: A to G.
- Suitable for cooling: Yes
- Suitable for heat pump: Yes
- Suitable for central heating: Yes
- Mounting type: Suspended
- Material barrel: Steel
- Surface protection inner side: Untreated
- Surface protection Outer side: Coated
- Material jacket: Plastic
- With insulation: Yes
- Material of insulation: Other
- 45 L capacity
- Height: 888 mm
- Diameter: 365 mm
- Diameter without insulation: 361 mm
- Max. Operating pressure 3 bar
- max. temperature 85 °C
- Connection 1: Internal thread
- Connection dimension 1: 1 1/4 inch
- Connection 2: Internal thread
- Connection dimension 2: 1 1/4 inch
- With dip tube: No.
- With electric heating rod: No.
- With connection temperature sensor: Yes
- Number of connections Temperature sensor: 6
- Connection dimension temperature sensor: Other
- Product type
Buffer tank
B (A+ - F)
- Height
888.00 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3147717 Vaillant Buffer tank EEC: B (A+ - F) 0010034126
Datasheet 3147717 Vaillant Buffer tank EEC: B (A+ - F) 0010034126
User & Safety Instructions
User & Safety Instructions 3147717 Vaillant Buffer tank EEC: B (A+ - F) 0010034126
Description
Heat pumps Buffer storage for heating and cooling VP RW 45/2 B Product advantages: Diffusion-proof buffer storage for heating and cooling operation, suitable for floor and wall mounting Equipment: 6 connections can be used as series or isolating storage, separator plates for optimum coating
This text is machine translated.
This text is machine translated.
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
