Vaillant Building shell set
EAN:
Part number:
Item no:
Technical specifications
- Kvs-value: 8
- Suitable for heating: Yes
- High-efficiency pump (according to EC 547/2012 and EC 641/2009): Yes
- With thermometer: Yes
- With mixer motor: Yes
- With three-way valve: Yes
- With heat insulation: Yes
- Width 250 mm
- Height: 355 mm
- Product type
Building shell set
- Content
1 pc(s)
- Dim
(W x H) 250.00 mm x 355.00 mm
- Width
250.00 mm
- Height
355.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147915 Vaillant Building shell set
Description

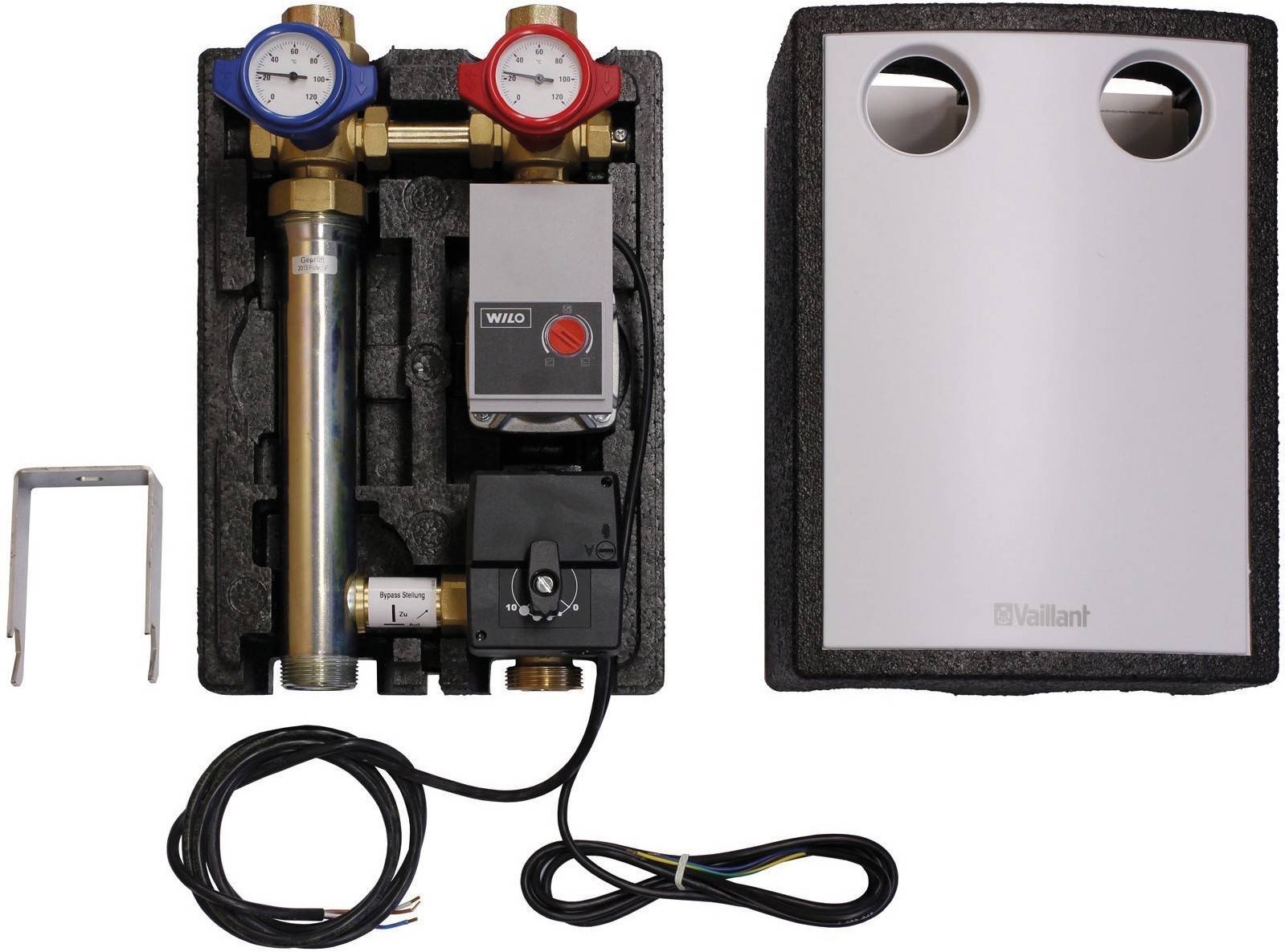

Pipe group with 3-way mixer R1 feed-/return Rp 1, HE-pump A, (GEG) high-efficiency pump (max. Delivery height 6.2 m, max. Volume flow 3.3 m3/h) 2 ball shut-off valves with integrated thermometers, of which 1 ball valve with gravity brake 3-way mixer with actuator 230V incl. heat insulation (GEG) can be used for aroTHERM perform VWL, aroTHERM plus with uniTOWplus, arTHERM plus VWL, aroTHERM Split with hydraulic station, aroTHERM Split with uniTOWAS, atmoTEC exclusive, atEC, ecoCOMPACT, ecoCOMPACT, ECOPLUS ECOTEC plus, ecoVIT, ecoVIT exclusive, flexoCOMPACT exclusive, flexoTHERM exclusive, GeoTHERM perform, icoVIT exclusive, recoCOMPACT EXCLUSIVE, versoTHERM plus
