Vaillant Building shell set Suitable for pipe diameter: 160 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Hard foam duct (full insulation)
- Material of channel: Other
- Material Quality Channel: Other
- Wall thickness channel 43 mm
- Production type: Seamless
- Insulation material: Expanded polypropylene (EPP)
- Insulation thickness 43 mm
- Surface protection external: Untreated
- Surface protection inside: Untreated
- Perforated inner wall: No.
- Outer color: Black
- Nominal diameter of channel 160 mm
- Connection 1: Adhesive sleeve
- Connection 2: Glue plug
- With slider profile: No.
- With slide-on terminal: No.
- Bending behavior: Rigid
- Length: 1000 mm
- Working length 940 mm
- Embeddable in concrete: Yes
- Anti-bacterial version: No.
- Anti-static version: No.
- Length
1 m
- Type
Hard foam duct (full insulation)
- Suitable for pipe Ø
160 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147758 Vaillant Building shell set Suitable for pipe diameter: 160 mm
Description

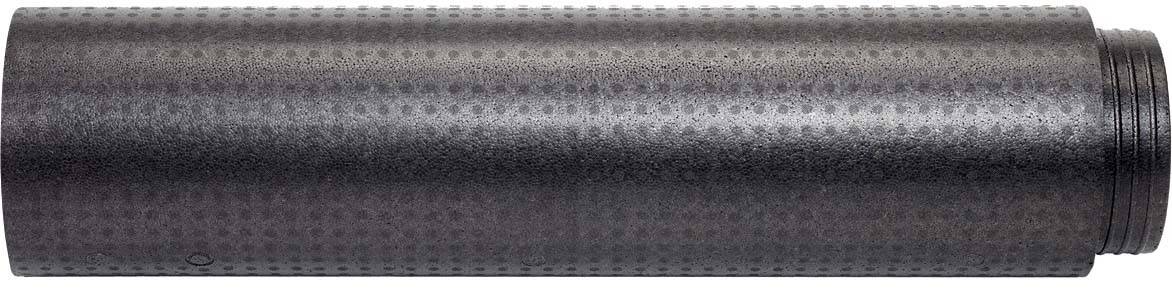

EPP tube for thick-walled D 246/160 mm, length 1000 mm for exterior and additional air, color black-gray, can be used for recoVAIR Note: For connection to the ventilation unit or to the roof lead-through it is absolutely necessary to use the EPP adapter
