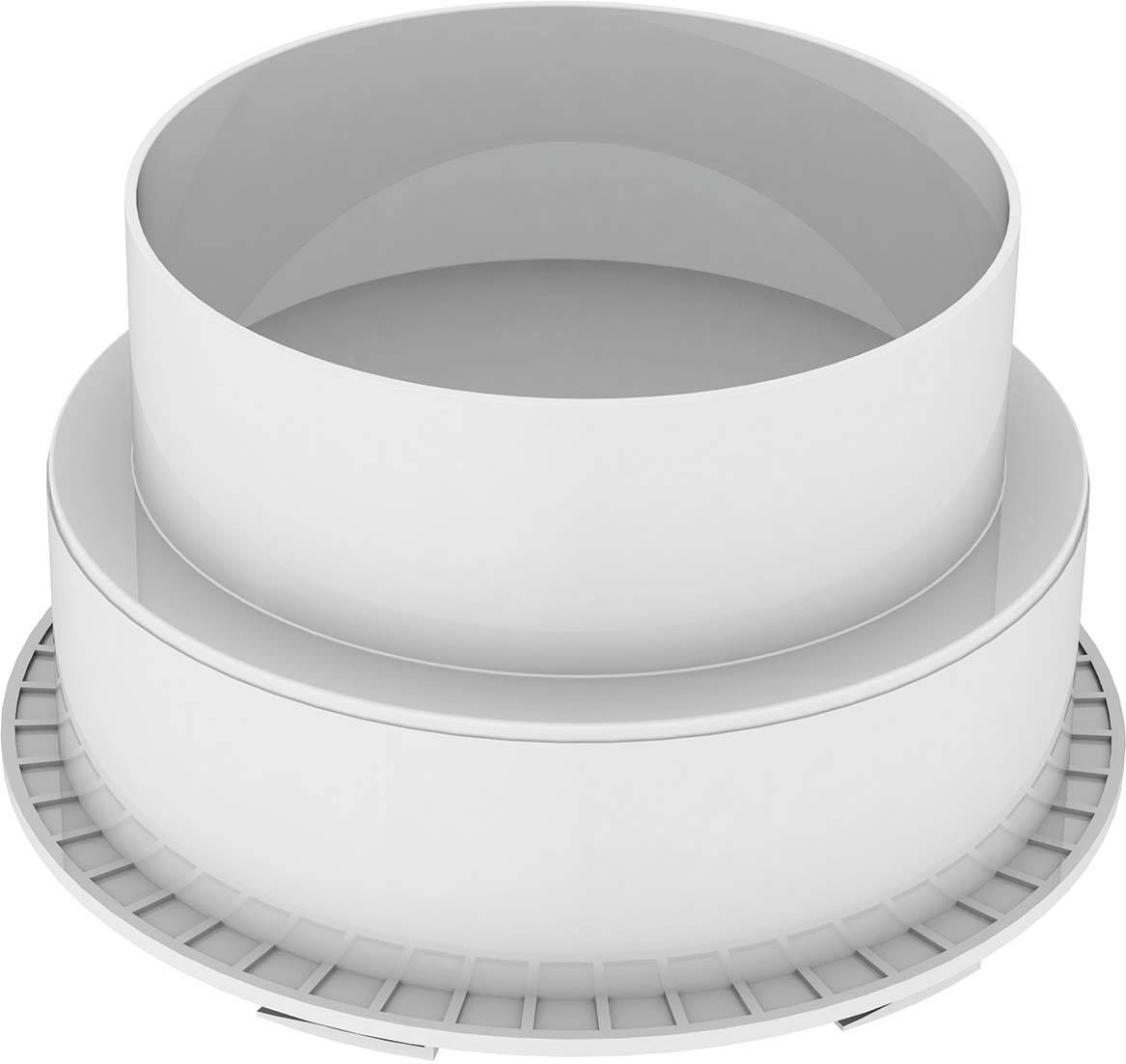

Vaillant Connector piece
EAN:
Part number:
Item no:
Technical specifications
- Design: Non-insulated channel
- Material of channel: Plastic
- Material quality canal: Polypropylene (PP)
- Production type: Seamless
- Pressed: No.
- Surface protection external: Untreated
- Surface protection inside: Untreated
- Perforated inner wall: No.
- Outer color: Grey
- Execution: Centric
- Design connection 1: Round air duct
- Nominal diameter of channel, connection 1: 180 mm
- Channel connection nominal width 1: 150 mm
- Nominal height channel connection 1: 53 mm
- Connection 1: Other
- Design connection 2: Round air duct
- Nominal diameter of channel, connection 2: 150 mm
- Channel connection nominal width 2: 180 mm
- Nominal height channel connection 2: 49 mm
- Connection 2: Other
- With pre-mounted seal: No.
- Shape transfer: Yes
- Channel reduction: Yes
- Length: 102 mm
- Length of connection 1 53 mm
- Length of connection 2 49 mm
- Embeddable in concrete: Yes
- Anti-bacterial version: No.
- Anti-static version: Yes
- Length
102.00 mm
- Type
Uninsulated channel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147458 Vaillant Connector piece
Description
Universal connector socket for EPP accessories D 210/180 and D 180/150 for the connection of EPP accessories to a low-pressure air distributor/collector round D 75/62 mm
