Vaillant Ductwork soundproofing Suitable for pipe diameter: 160 mm
EAN:
Part number:
Item no:
Technical specifications
- Material inner tube: Aluminium
- Material outer tube: Aluminium
- Nominal diameter of channel 160 mm
- 160 mm internal diameter
- Flexible: Yes
- Connection 1: End of channel
- Connection 2: End of channel
- With pre-assembled seal: Yes
- Insulation thickness 50 mm
- Material of the insulating material: Glass wool
- With woven screen towel: No.
- Steam-braking layer: Yes
- With core/cone: No.
- Damping 250 Hz 29.7 dB
- Working length 1000 mm
- Suitable for pipe Ø
160 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147487 Vaillant Ductwork soundproofing Suitable for pipe diameter: 160 mm
Description

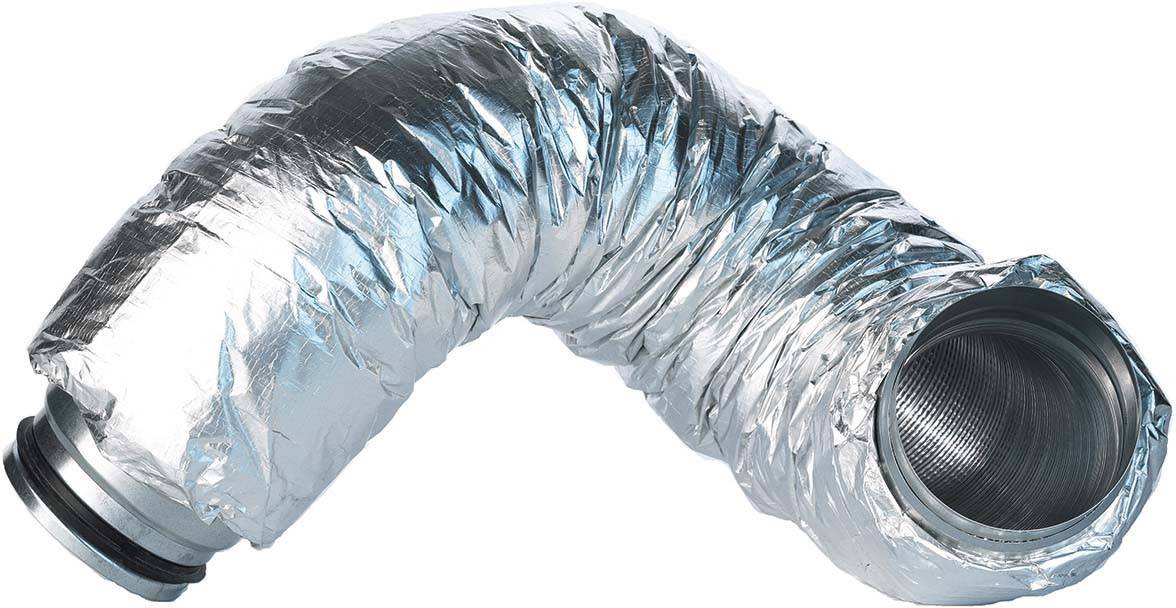

Flexible sound absorber Connection 160 mm, length 1000 mm Flexible and can be compressed for a flexible installation in case of cramped space conditions. Noise reduction at 250 Hz: 29.7 dB Bending radius: 520 mm length without supports = 1000 mm, D 260 mm, weight 1.4 kg. Can be used for EPP pipe D 246/160 mm (can be inserted directly)
