Vaillant Ductwork soundproofing Suitable for pipe diameter: 180 mm
EAN:
Part number:
Item no:
Technical specifications
- Material inner tube: Aluminium
- Material outer tube: Aluminium
- Nominal diameter of channel 180 mm
- 180 mm internal diameter
- Flexible: Yes
- Connection 1: End of channel
- Connection 2: End of channel
- With pre-assembled seal: Yes
- Insulation thickness 50 mm
- Material of the insulating material: Glass wool
- With woven screen towel: No.
- Steam-braking layer: Yes
- With core/cone: No.
- Damping 250 Hz 25.7 dB
- Working length 1000 mm
- Suitable for pipe Ø
180 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147489 Vaillant Ductwork soundproofing Suitable for pipe diameter: 180 mm
Description

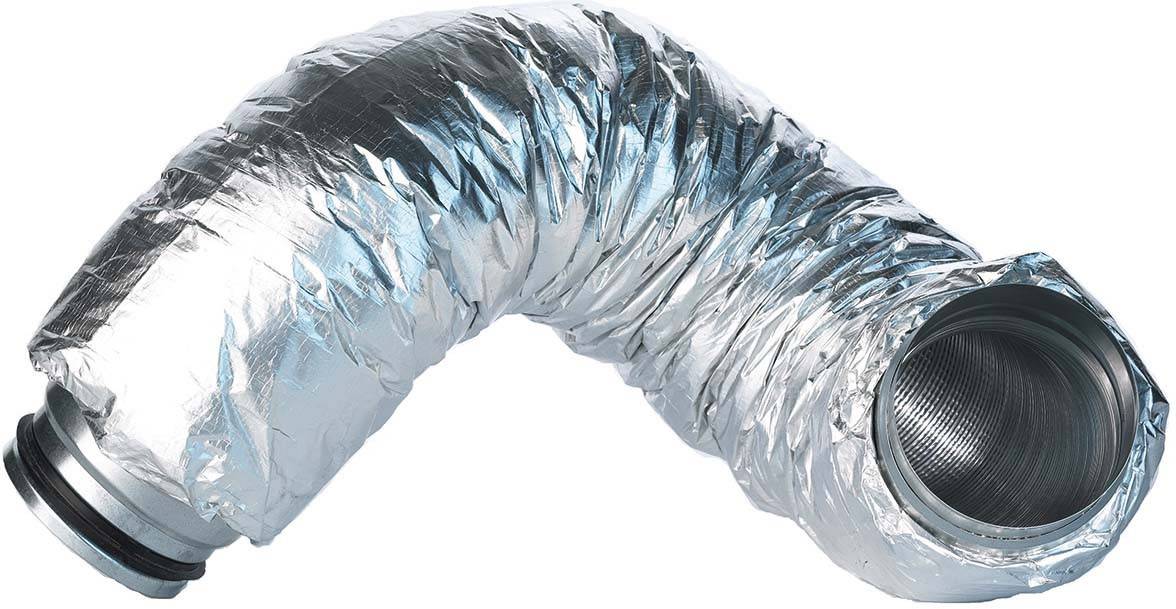

Flexible sound absorber Connection 180 mm, length 1000 mm Flexible and can be compressed for a flexible installation in cramped spaces. Noise reduction at 250 Hz: 25.7 dB Bending radius: 560 mm length without supports = 1000 mm, D 280 mm, weight 1.5 kg. Can be used for EPP pipe D 210/180 mm (can be inserted directly)
