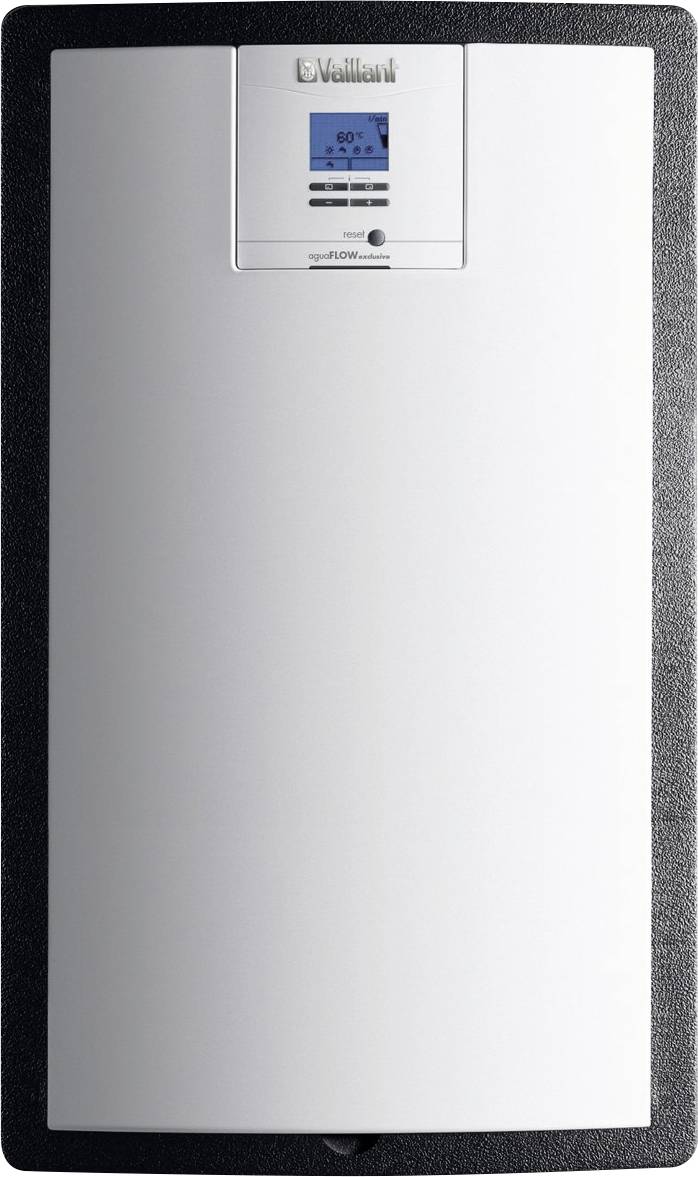

Vaillant Potable water dispenser
EAN:
Part number:
Item no:
Technical specifications
- With circulation pump: Yes
- Self-venting circulation pump: No.
- Volume flow meter: No.
- With safety valve: No.
- With pressure gauge: No.
- With thermometer: No.
- With check valve: Yes
- With connection expansion tank: No.
- With automatic ventilation: No.
- Thermal insulation: Yes
- With wall holder: No.
- With filling and emptying tap: No.
- Height: 750 mm
- Width 450 mm
- Depth: 329 mm
- Collector connection: Other
- Connection memory: Other
- Size connection Memory: Other
- Material: Fittings: Brass
- With an electronic solar controller: No.
- Electronic solar controller expandable: No.
- With heat exchanger: Yes
- Dim
(W x H x D) 450.00 x 750.00 x 329.00 mm
- Height
750.00 mm
- Depth
329.00 mm
- Width
450.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148300 Vaillant Potable water dispenser
Description
Drinking water station aguaFLOW exclusive VPM 30/35/2 W Product advantages, hygienic drinking water heating in the flow, illuminated graphic display, plug & play mounting directly at the buffer Layer loading storage allSTOR VPS/3 exclusively possible, alternative wall mounting possible with wall console, operation also possible without additional regulator, optional legionella protection function for disinfection, cascade with up to 4 stations equipment, Plate heat exchanger made of stainless steel, special plate structure for avoiding calcifications, EPP shell heat insulation, integrated volume flow sensor, high-efficiency circulation pump, EBus interface, Circulation pump as accessory, wall bracket (also for cascade, order no. 0010014300 and/ or 0010014301 and/ or 0010013303) Warm water power at 60°C 30 l/min Performance characteristic NL (heat pump) 3 Warm water power at 65°C 35 l/min Warm water temperature 40-75°C Temperature at legio- nellprogram 70°C zul. Operating pressure, heating side 3 bar, warm water side 10 bar Electro connection 230 V / 50 Hz max. electrical Power intake, Station 87 W Supply/Return connection G 1 AG Cold/Warm water connection G 3/4 AG Circulation connection G 3/4 AG Height/Width/Depth 750/450/250 mm Weight 16 kg
