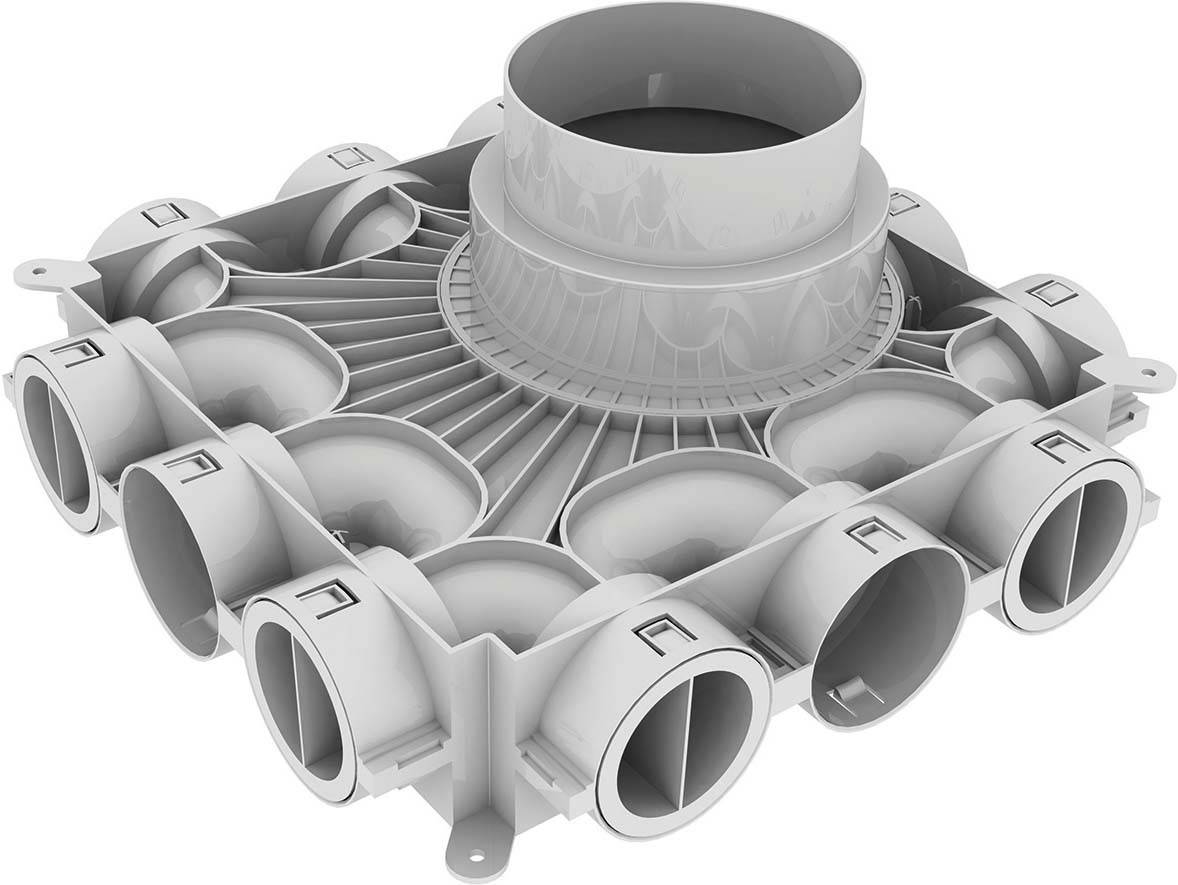

Vaillant Splitter
EAN:
Part number:
Item no:
Technical specifications
- Air supply: Yes
- Exhaust air: Yes
- Construction of the housing: Complete
- Material: Plastic
- Material quality: Polypropylene (PP)
- Surface protection: Untreated
- Nominal diameter of main channel: 150/180 mm
- Main line connection: Plug in/channel end
- Number of branches: 12
- Execution of branching: Round air duct
- Connection branching: Inserting
- Rated channel diameter branching: 62 mm
- Length 400 mm
- Width 400 mm
- Height: 83 mm
- With inspection opening and lid: Yes
- Connection from below: Yes
- Embeddable in concrete: Yes
- Product type
Splitter
- Content
1 pc(s)
- Dim
(L x W x H) 400.00 x 400.00 x 83.00 mm
- Width
400.00 mm
- Length
400.00 mm
- Height
83.00 mm
- Material (details)
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147442 Vaillant Splitter
Description
Low-construction air distribution for air hose around 75/62 mm Space-saving floor distributor optimized for integration in the crude-concrete ceiling. Can be used as through-pass distributor. With a total of 12 connection fittings for air hose D 75/62 mm Excentrically positioned universal connector supports for EPP accessories D 210/180 and D 180/150 pre-assembled. max. Air throughput 360 m3/h WxHxD 400 x 400 x 83 mm
