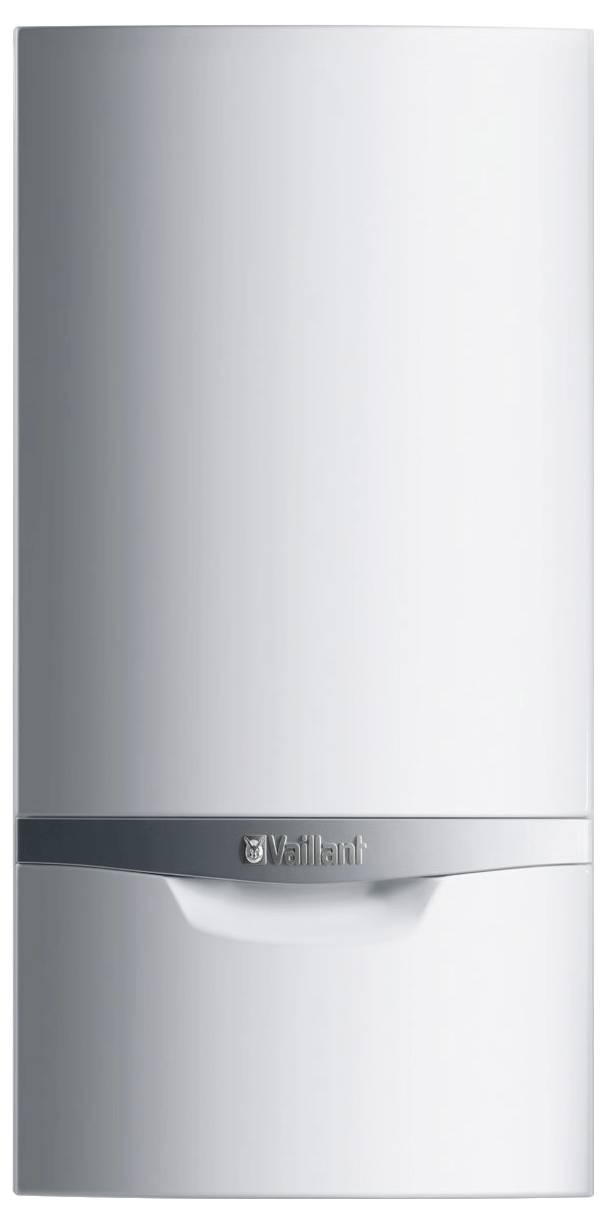

Vaillant VC 806/5 -5 E Gas-fired condensing wall heater A (A++ - G)
EAN:
Part number:
Item no:
Technical specifications
- Material heat exchanger: Stainless steel
- Material quality: Steel sheet
- Closed version: Yes
- Operation as open (air supply) version possible: Yes
- Nominal power 80-60 °C: 74.7 kW
- Nominal power 50-30 °C: 82.3 kW
- Nominal load upper value: 82.3 kW
- Rated load lower value: 14.9 kW
- Suitable for natural gas: Yes
- Suitable for propane: No.
- Suitable for butane: No.
- Suitable for methane: No.
- Burner control high/low: No.
- Modulating burner regulation: Yes
- Control signal 0-10V: No.
- OpenTherm control signal: No.
- Ignition flame: No.
- Second return connection: No.
- Max. Cycle temperature (working temperature): -85°C.
- Max. Permissible operating pressure: 6 bar
- Min Operating pressure 1 bar
- Max. Gas footprint 25 mbar
- Min Gas footprint 18 mbar
- In-built filling/emptying tap: No.
- Built-in pump circuit: Yes
- Built-in pressure gauge: Yes
- In-built weather-dependent controller: No.
- Built-in expansion tank: No.
- Pressure relief valve fitted: Yes

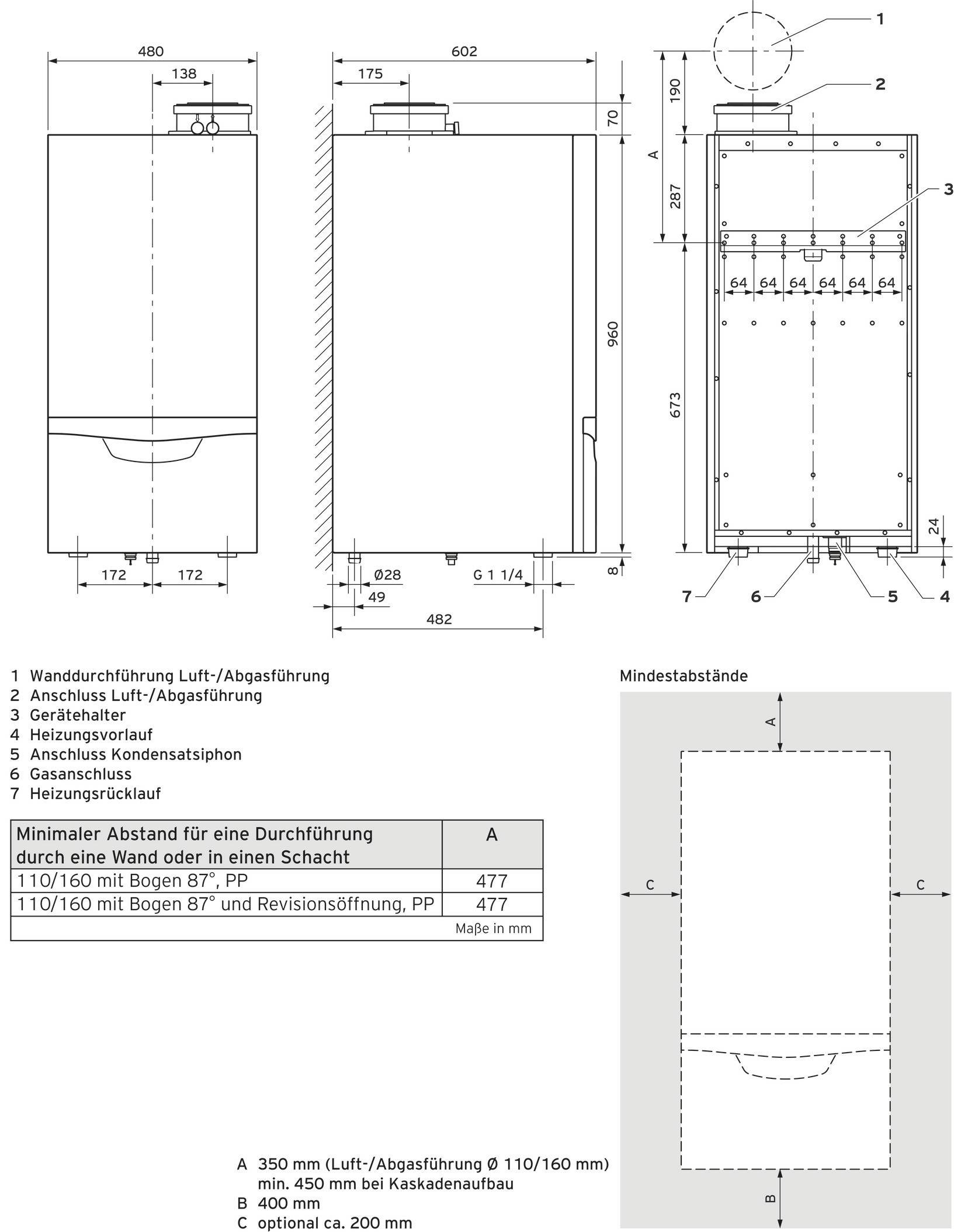

- Height: 960 mm
- Width 480 mm
- Depth: 602 mm
- Outflow connection: Outer thread
- Pipe outer diameter of inlet: 41.91 mm
- Return connection: External thread
- Pipe outer diameter Return: 41.91 mm
- Fuel connection: Other
- Pipe outer diameter of fuel: 33.249 mm
- Connection of air supply: Sleeve
- Nominal diameter duct air supply: 160 mm
- Smoke extraction connection: Sleeve
- Nominal diameter channel flue gas discharge: 110 mm
- Condensate connector: Other
- Pipe outer diameter condensate:19 mm
- Energy efficiency Hot water: 98%
- Heat dissipation at nominal heat discharge in operation at high temperature (P4): 73.784 kW
- Efficiency at high temperature (n4) nominal heat emission: 87.5%
- Additional power consumption at full load (elmax): 0.122 kW
- Additional power consumption in standby mode (PSB): 0.002 kW
- Product type
Gas-fired condensing wall heater
- Operating voltage
0 V
82.3 kW
- Heater features
Solar option
- Dim
(W x H x D) 480.00 x 960.00 x 602.00 mm
A (A++ - G)
- Width
480.00 mm
- Height
960.00 mm
- Depth
602.00 mm
- Material
Non-corrosive steel
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148753 Vaillant VC 806/5 -5 E Gas-fired condensing wall heater A (A++ - G)
Description
Gas wall heating device ECOTEC plus VC 806/5-5 E condensing technology product advantages, modulation range 20 % to 100 %, standard utilization level 99 % (HS)/110 % (Hi), new stainless steel thermal film heat exchanger, powerful and robust gas air compound, adaptive partial load adjustment, multi-sensor system for self-optimization, space-saving horizontal connection accessories including high-efficiency pump, cascading of up to 6 devices possible (up to 720 kW) Flexible cascade information, even over the corner, can be combined with solar system, perfect as peak load heating device in cogeneration systems, operation with natural gas E, LL equipment, highly efficient stainless steel thermal film heat exchanger, water pressure sensor, quick air breather, DIA system with clear text display, illuminated, EBus interface power at 50/30 Grd.C (natural gas E/LL)16.5-82.3 kW 60/40 Grd.C (natural gas E/LL)16.0-80.0 kW 80/60 Grd.C (natural gas E/LL)14.9-74.4 kW efficiency at 30% vs. EN15502 107.7% Storage charging power max. 74.7 kW Standard usage degree 99 % (HS) / 110 % (Hi) Supply/Return connection G 1 1/4 Gas connection G 1 Air/Exhaust connection 110/160 mm Height/Width/Depth 960/480/602 mm CE PIN CE-0085CM0415 Gas device category I2ELL, I3P Seasonal room heating energy efficiency class A (Spectrum A+++++ to D)
