Vaillant VED E 18/8 VED E 18/8 Tankless heater A (A+ - F) 18 kW
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class: A
- Energy efficiency classes: A+ to F
- Max. Permissible operating pressure: 10 bar
- Nominal capacity 1 l
- Material of the pressure vessel: Plastic
- Rated output: 18 kW
- Nominal voltage 1 400 V
- Nominal voltage 2 400 V
- Suitable for KNX: No.
- Operation: Wireless-remote control
- Temperature display: Digital
- With display: Yes
- Mounting type: Over table/under table
- Power control: Electronic
- Connected load 18 kW
- Heating system: Bare wire
- Safety shut-down: Electronic
- Protection class (IP): IP25
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1/2 in. (15)
- Outer tube diameter of cold drinking water: 21 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1/2 in. (15)
- Hot drinking water outside tube diameter: 21 mm
- Suitable for plastic pipes: Yes
- Suitable for pre-heated water: Yes
- Type of control: Electronic
- With fitting: No.
- Height: 481 mm
- Width 240 mm
- Depth: 99 mm
- Weight: 4.4 kg
- Product type
Tankless heater
- Operating voltage
400 V
18 kW
IP25

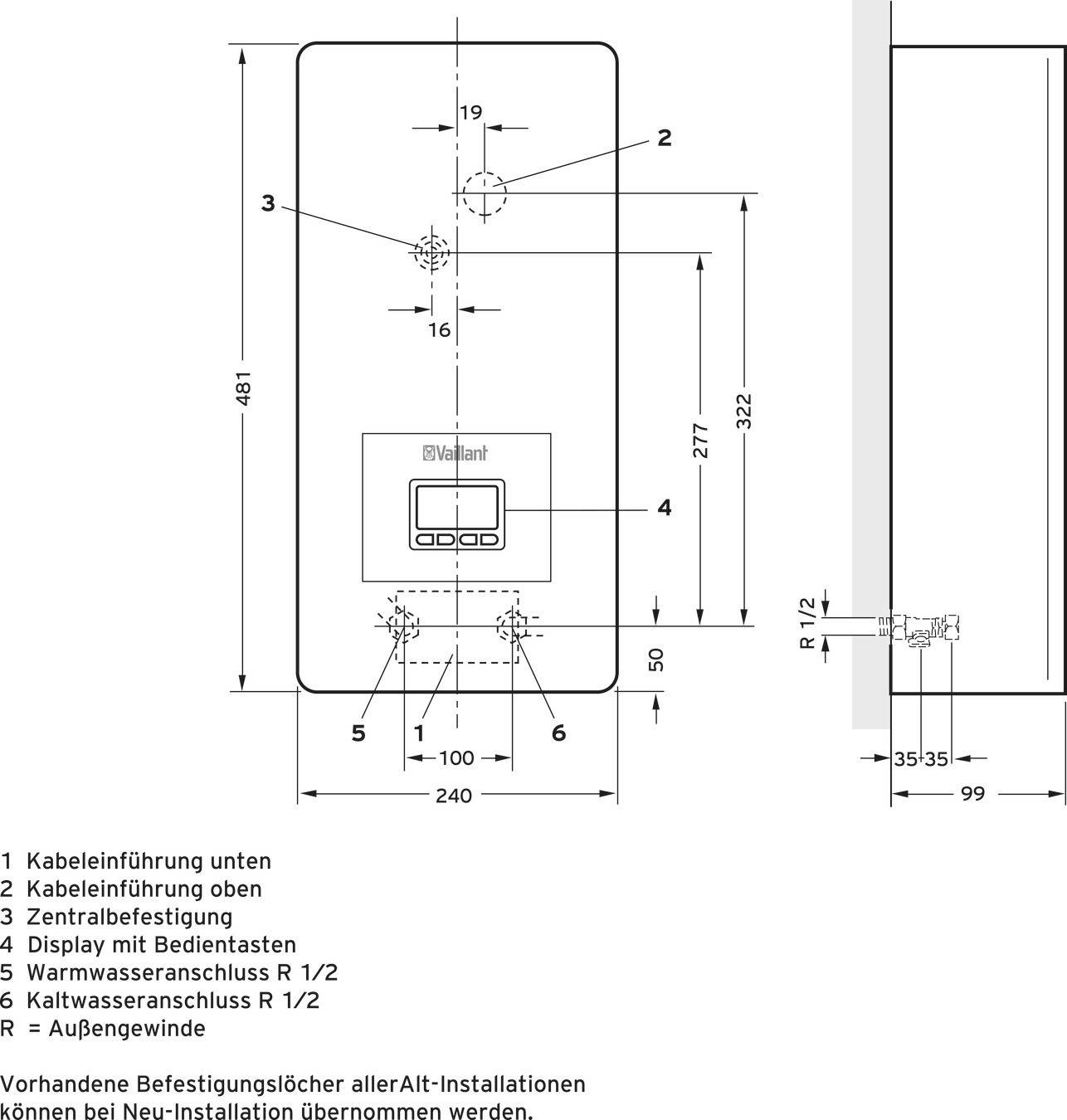

- Dim
(W x H x D) 240.00 x 481.00 x 99.00 mm
- Weight
4.40 kg
A (A+ - F)
- Mounting type
Undertable
- Width
240.00 mm
- Height
481.00 mm
- Depth
99.00 mm
- Nominal voltage
400 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148199 Vaillant VED E 18/8 VED E 18/8 Tankless heater A (A+ - F) 18 kW
Description
ElectronicVED E18/8 E exclusive electric flow-through heaters Product advantages, first hot water unit with energy MONITOR and integrated consumption data display: Trend indicator taking into account technical measuring tolerances, highest operating comfort through uniform clear-text operating menu and graphic display (device and radio FB), temperature setting and consumption data display at each tap, wireless remote control Highest warm water comfort due to the degree-exact outlet temperature of 20 degree C to 55 degree C, suitable for the additional heating of drinking water from solar storage upto 60 degree C, energy and water saving of up to 30% against hydraulic through-passage heaters, protection functions (spray protection, increased contact protection) and languages can be set via clear-text operating menu, up to 4 waterproof, bi-directional radio remote controls can be used Equipment, large graphic display with clear text, illuminated and 4-button operating menu, standard with a wireless remote control with clear-text display, fully electronic power and water quantity regulation Temptronic, installation system PRO I, folding frame and rotating hood, suitable for plastic pipes according to DIN 1988 and DIN 16892/16893, future-able PE-BUS interface (e.g. for solar systems) Nominal power 18 kW Mains voltage 3/PE 400 V/50 Hz max. PTO 10 l/min Temperature range 20-60 gr.C Cold/hot water connection R 1/2 Protection type IP 25 Height/width/depth 481/240/99 mm Weight 4.4 kg Water heating energy efficiency class A (Spectrum A+ to F)
To operate this tankless water heater you need a three-phase AC outlet.
Installing such high-voltage tankless water heaters requires prior approval of your utility provider and may only be installed by the utility provider, or by a qualified and certified subcontractor only.
