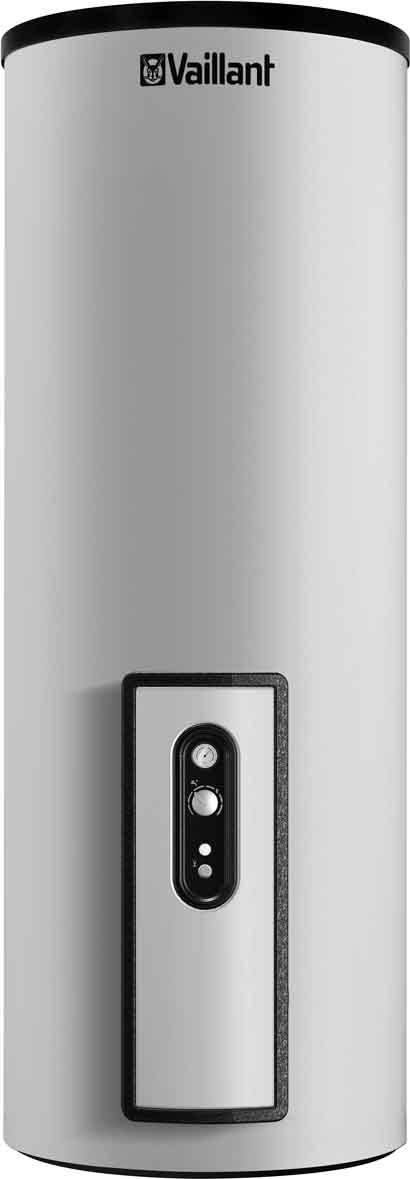

Vaillant VEH 200 VEH 200 Warm water tank C (A+ - F)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class C
- Energy efficiency classes: A+ to F
- Material jacket: Steel
- Tank volume: 200 l
- Material of the boiler: Steel
- Rated output: 7.5 kW
- Connection voltage 230/.400 V
- Three-phase version: Yes
- Frequency: 50 Hz
- Design: Stand model
- Socket/under-frame boiler: No.
- With night-time switching: Yes
- Low pressure version: No.
- Connection to warm water pipes: Yes
- Duo version: No.
- Suitable for boiling water: No.
- With water cooler: No.
- Warm up time from 10 °C to 65 °C: 100 min
- PTO at 60°C, continuous operation 25 l/min.
- Wall installation: No.
- Horizontal placement: No.
- Vertical placement: No.
- With temperature display: No.
- With temperature limit: Yes
- With circulation connection: Yes
- Max. Permissible operating pressure: 6 bar
- With fitting: No.
- With pressure reducing valve: No.
- With thermometer: No.
- With cleaning opening: Yes
- Protective anode: Yes
- Height: 1265 mm
- Width 660 mm
- Depth: 780 mm
- Diameter 660 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1 in. (25)
- Outer tube diameter of cold drinking water: 33.3 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1 in. (25)
- Hot drinking water outside tube diameter: 33.3 mm
- Circulation line connection: Outer thread
- Nominal diameter of circulation pipe: 3/4 in. (20)
- Pipe outer diameter Circulation pipe: 26.4 mm
- Connection: Tap connection: Outer thread
- Nominal diameter of tap connection: 1 in. (25)
- Protection class (IP): IP22
- Energy efficiency Hot water: 39%
- Tap profile XL
- Product type
Warm water tank
- Operating voltage
0 V
8 kW
IP22
- Width
660.00 mm
- Height
1265.00 mm
- Depth
780.00 mm
- Manufacturer
Vaillant
C (A+ - F)
- Material
Steel
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135658 Vaillant VEH 200 VEH 200 Warm water tank C (A+ - F)
Description
EloSTOR VEH 200 hot water storage heater product advantages, pressure-resistant storage, lowest standby energy costs thanks to high-quality heat insulation, heating power from 2 kW to 7.5 kW, connection power can be adjusted by simply changing bridges, simplified transport/installation due to easy de-/mountable heat insulation, also possible after the storage connection installation, universal heating flange for single-circuit, dual-circuit and boiler operation, Stainless steel heating element with long life, warm water storage with high-quality enameling, temperature control continuously adjustable from 2 5.5 to 85 4 2 degrees C nominal contents 5.5 3.5 7.5 l connection values -one-circuit 7.5 V 2, 4, 5.5 kW 230 V 2, 3.5 kW two-circle 400 V 400/2, 2/4, 230 kW 200 V 7/5.5, 3.5/7.5kW Mains voltage 230/50-400/50 V/Hz Cold/hot water connection R 1 Circulation connection R 3/4 Height/width/depth 1265/660/780 mm Diameter 660 mm Weight (empty) 105 kg Weight (filled) 305 kg Seasonal warm water recreation energy efficiency class C (Spectrum A+ to F)
