Vaillant VEH 80/7 pro VEH 80/7 pro Warm water tank C (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class C
- Energy efficiency classes: A+ to F
- Material jacket: Steel
- Tank volume: 80 l
- Material of the boiler: Steel
- Rated output: 6 kW
- Connection voltage 230/.400 V
- Three-phase version: Yes
- Frequency: 50 Hz
- Execution form: Hanging
- Socket/under-frame boiler: No.
- With night-time switching: Yes
- Low pressure version: No.
- Connection to warm water pipes: Yes
- Duo version: No.
- Suitable for boiling water: No.
- With water cooler: No.
- Warm up time from 10 °C to 65 °C: 45 min
- PTO at 60°C, continuous operation 20 l/min.
- Wall setup: Yes
- Horizontal placement: No.
- Vertical placement: Yes
- With temperature display: No.
- With temperature limit: Yes
- With circulation connection: No.
- Max. Permissible operating pressure: 6 bar
- With fitting: No.
- With pressure reducing valve: No.
- With thermometer: No.
- With cleaning opening: Yes
- Protective anode: Yes

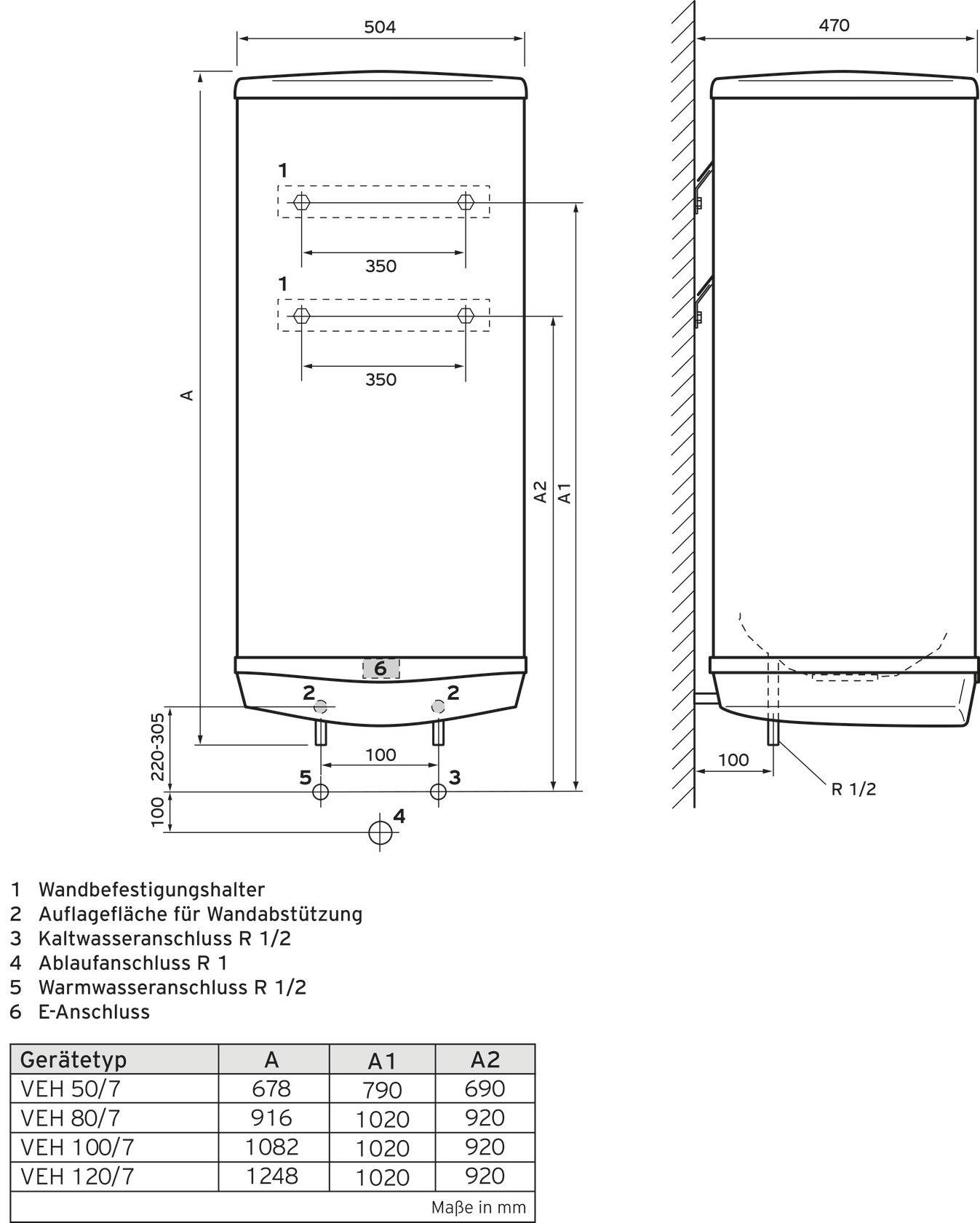

- Height: 916 mm
- Width 504 mm
- Depth: 450 mm
- Diameter 504 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1/2 in. (15)
- Outer tube diameter of cold drinking water: 21 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1/2 in. (15)
- Hot drinking water outside tube diameter: 21 mm
- Connection circulation cable: Other
- Nominal diameter circulation cable: Other
- Connection: Tap connection: Outer thread
- Nominal diameter of tap connection: 1/2 in. (15)
- Protection class (IP): IP25
- Energy efficiency Hot water: 37%
- Tap profile: M
- Product type
Warm water tank
- Operating voltage
0 V
6 kW
IP25
- Width
504.00 mm
- Height
916.00 mm
- Depth
450.00 mm
- Manufacturer
Vaillant
C (A - G)
- Material
Steel
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148864 Vaillant VEH 80/7 pro VEH 80/7 pro Warm water tank C (A - G)
Description
VEH 80/7-3 eloSTOR per hot-water storage system closed, wall-hanging, pressure-resistant product advantages, minimum standby energy losses due to highly efficient heat insulation, rapid heating for additional hot-water requirements, activated spray protection, frost protection function, connection power adjustable by moving bridges Equipment, universal heating flange for single-circuit, dual-circuit and boiler operation, temperature control continuously adjustable from 7 to 85°C. High-quality enamel and stainless steel heating elements with a long life, jet-water protection IP25 enables unrestricted installation in the protection zone I, integrated ball cock for quick emptying Nominal contents 80 l Zul. Operating pressure 6 bar Standby heat loss at 65°C (24 h) 0.92 kWh Mixed water volume of 40°C 157 l Cold/hot water connection R 1/2 Height/width/depth 916/504/450 mm Weight unpacked 50 kg Weight ready for use 130 kg Seasonal hot water energy efficiency class C (Spectrum A+ to F)
