Vaillant VIH R 120/6 H VIH R 120/6 H Warm water tank (free-standing) A+ (A+ - F)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class: A
- Material jacket: Steel
- Material of the boiler: Steel
- Surface protection vessel: Enamelled
- Content: 117 l.
- Heat transfer: Spiral
- Wall installation: No.
- Vertical placement: Yes
- Max. Operating pressure primary: 10 bar
- Max. Operating pressure secondary: 10 bar
- With pressure reducing valve: No.
- With pressure gauge: No.
- With thermometer: No.
- With cleaning opening: No.
- Protective anode: Yes
- Height: 961 mm
- Width 590 mm
- Depth: 590 mm
- Connection of cold drinking water: Conical external thread (NPT)
- Nominal diameter of cold drinking water: 3/4 in. (20)
- Hot water connection: Conical external thread (NPT)
- Nominal diameter of hot water connection: 3/4 in. (20)
- Connection for circulation cable: Conical external thread (NPT)
- Pipe outer diameter Circulation pipe: 26.441 mm
- Primary connection: Conical external thread (NPT)
- Tap profile: L
- Product type
Warm water tank (free-standing)
- Operating voltage
0 V
- Width
590.00 mm
- Height
961.00 mm
- Depth
590.00 mm
- Manufacturer
Vaillant
A+ (A+ - F)
- Material
Steel
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135619 Vaillant VIH R 120/6 H VIH R 120/6 H Warm water tank (free-standing) A+ (A+ - F)
Description

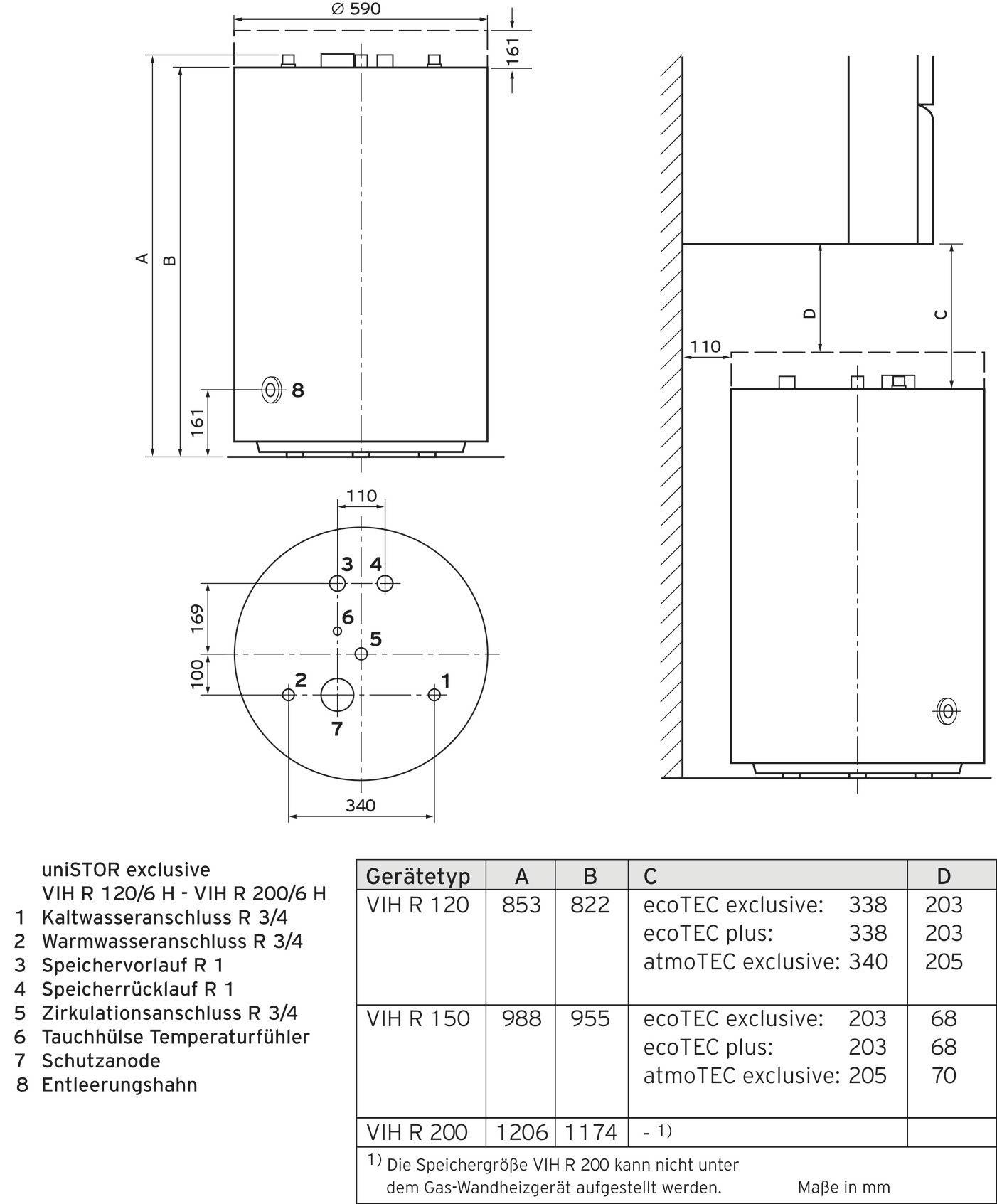

UNISTOR VIH R 120 H Hot water storage round, standing Special features, warm water storage indirectly heated, patented vacuum heat insulation combination, technology adapted to gas wall heaters and boilers, all connections routed and insulated upwards, white casing, suitable connection pipes available as accessories, Insulation and cover for insulating and covering the piping on the storage unit Equipment, hot water storage tank with high-quality enameling, magnesium protective anode, powder-coated coating white, high-quality vacuum heat insulation combination, inner-lying tube heat exchanger, adjustable screw feet, circulation connection, bleed valve, gravity brake, external current anode (order no. 302042) Available as accessories Memory contents 117 l Heating water contents 4.8 l Operating pressure 10 bar Heating water temperature max. 110 Grd.C Warm water temperature max. 85 Grd.C WW continuous output max.(21.7 kW) 527 l/h Power characteristic NL max. 1.4 Standby heat loss 0.6 kWh Supply/return connection R 1 Cold/hot water connection R 68 Circulation connection R 3/4 Height/Diameter 961/590 mm Weight 3/4 kg Seasonal warm water consumption energy efficiency class A+ (Spectrum A+ to F)
