Vaillant VIH R 150/6 B VIH R 150/6 B Warm water tank (free-standing) B (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency rating: B
- Material jacket: Steel
- Material of the boiler: Steel
- Surface protection vessel: Enamelled
- 144 L capacity
- Heat transfer: Spiral
- Wall installation: No.
- Vertical placement: Yes
- Max. Operating pressure primary: 10 bar
- Max. Operating pressure secondary: 10 bar
- With pressure reducing valve: No.
- With pressure gauge: No.
- With thermometer: No.
- With cleaning opening: No.
- Protective anode: Yes

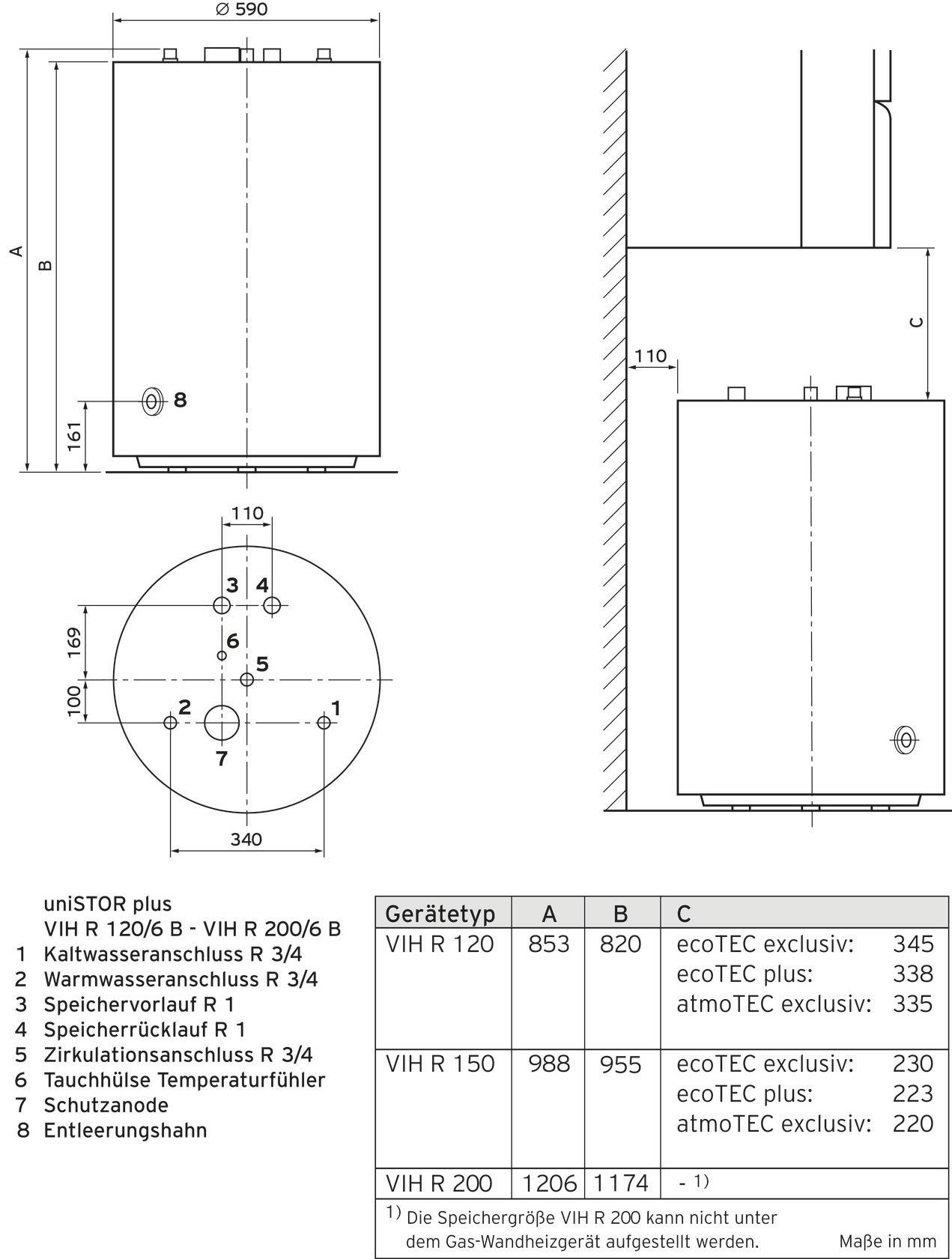

- Height: 988 mm
- Width 590 mm
- Depth: 590 mm
- Connection of cold drinking water: Conical external thread (NPT)
- Nominal diameter of cold drinking water: 3/4 in. (20)
- Hot water connection: Conical external thread (NPT)
- Nominal diameter of hot water connection: 3/4 in. (20)
- Connection for circulation cable: Conical external thread (NPT)
- Pipe outer diameter Circulation pipe: 26.441 mm
- Primary connection: Conical external thread (NPT)
- Tap profile XL
- Product type
Warm water tank (free-standing)
- Operating voltage
0 V
- Width
590.00 mm
- Height
988.00 mm
- Depth
590.00 mm
- Manufacturer
Vaillant
B (A - G)
- Material
Steel
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148473 Vaillant VIH R 150/6 B VIH R 150/6 B Warm water tank (free-standing) B (A - G)
Description
UNISTOR VIH R 150 B Hot water storage round, standing Special features, warm water storage indirectly heated, technology matched to gas wall heaters and boilers, all connections routed upwards, outer jacket white, suitable connection piping available as accessories, hot water storage with high quality enameling, magnesium protective anode, powder coated casing white, high quality PU foam heat insulation, inner tube heat exchanger, adjustable screw feet, circulation connection, bleed valve, gravity brake, external current anode (order no. 302042) Available as accessories Memory contents 144 l Heating water contents 5.7 l Operating pressure 10 bar Heating water temperature max. 110 Grd.C Warm water temperature max. 85 Grd.C WW continuous output max.(27.4 kW) 674 l/h Power characteristic NL max. 2.2 Standby heat loss 1.2 kWh Supply/return connection R 1 Cold/hot water connection R 79 Circulation connection R 3/4 Height/Diameter 968/590 mm Weight 3/4 kg Seasonal warm water consumption energy efficiency class B (Spectrum A+ to F)
