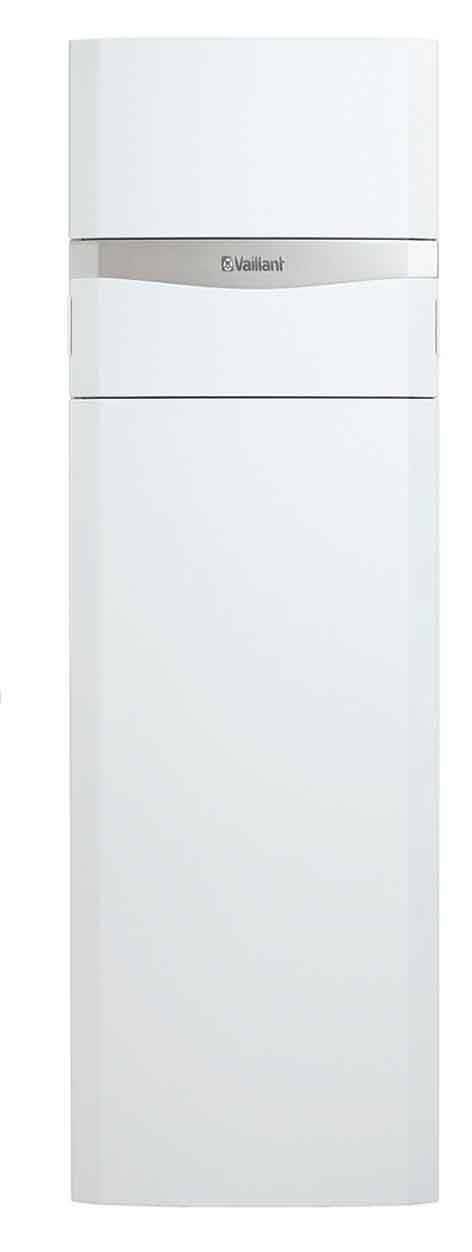

Vaillant VIHQW190/6E VIHQW190/6E Storage heater
EAN:
Part number:
Item no:
Technical specifications
- Material jacket: Steel
- Material fittings: Other
- Material: Copper pipe
- Primary connection: Other
- Primary nominal diameter: 1 1/4 in. (32)
- Secondary Connection: Other
- Nominal diameter secondary: Other
- Pump connection: Other
- Pump connection size: Other
- Max. Operating pressure 3 bar
- Medium temperature 25..75°C
- Type of temperature control: Electrical
- Power: 6.2 kW
- Suitable for cooling: Yes
- Suitable for heating: Yes
- Suitable for glycol: No.
- Suitable for ethanol: No.
- Design: Other
- With adapter for heat meter: No.
- With heat meter: No.
- In-built circulation pump: No.
- High-efficiency pump (according to EC 547/2012 and EC 641/2009): No.
- With pressure gauge: No.
- With control valve: No.
- With shut-off valve: No.
- With check valve: No.
- With safety valve: No.
- Safety valve opening pressure 3 bar
- With thermometer: No.
- Drain cock: No.
- With mixer motor: No.
- Suitable for servo motors: No.
- With three-way valve: Yes
- With pump ball valve: No.
- With connection temperature sensor: Yes
- With connection expansion tank: Yes
- With automatic ventilation: Yes
- Wall setup: Yes
- With wall mounting bracket: No.
- With feet: Yes
- With differential pressure control: No.
- With heat insulation: Yes
- Heating circuit controller expandable: Yes
- Distribution bars expandable: Yes
- Heat exchanger expandable: Yes
- Width 595 mm
- Height: 1880 mm
- Depth: 693 mm
- Product type
Storage heater
- Operating voltage
0 V
- Width
595.00 mm
- Height
1880.00 mm
- Depth
693.00 mm
- Manufacturer
Vaillant
Doesn't apply
- Type
others
- Material
Steel
- Nominal voltage
0 V
- Max. temperature
75 °C
- Min. temperature
25 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147670 Vaillant VIHQW190/6E VIHQW190/6E Storage heater
Description
UNITTOWER plus VIH QW 190/6 E hydraulic tower for aroTHERM plus product advantages, pre-mounted hydraulic tower for aroTHERM plus heat pumps, short assembly times, expandable with integrable accessories, split-mounting concept for easy installation in two parts equipment, integrated 190L WW spiral heater, additional heating 9 kW modulating electric heating, 3-way switching valve warm water, filling device, 15 liter with clear text ADG, DIA system illuminated Memory contents 190 l Heating water contents 8.6 l 0l. Operating pressure 10 bar Heating water temperature max. 110 Grd.C Hot water temperature max. 85 Grd.C Connections Heating circuit G 1 Heat source G 5/4 Cold/hot water connection G 3/4 Height/width/depth 1880/599/693 mm Weight 146 kg
