Vaillant VIHRW300/3BR VIHRW300/3BR Warm water tank B (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency rating: B
- Energy efficiency classes: A+ to F
- Material jacket: Plastic
- Material of the boiler: Steel
- Surface protection vessel: Enamelled
- 281 L capacity
- Heat transfer: Spiral
- Double separation: No.
- Wall installation: No.
- Vertical placement: Yes
- Max. Operating pressure primary: 10 bar
- Max. Operating pressure secondary: 10 bar
- With pressure reducing valve: No.
- With pressure gauge: No.
- With thermometer: Yes
- With cleaning opening: Yes
- Protective anode: Yes
- Height: 1804 mm
- Width 650 mm
- Depth: 755 mm
- Diameter 650 mm
- Connection of cold drinking water: Conical external thread (NPT)
- Nominal diameter of cold drinking water: 1 in. (25)
- Hot water connection: Conical external thread (NPT)
- Nominal diameter of hot water connection: 1 in. (25)
- Connection for circulation cable: Conical external thread (NPT)
- Nominal diameter of circulation pipe: 3/4 in. (20)
- Pipe outer diameter Circulation pipe: 26.441 mm
- Primary connection: Conical external thread (NPT)
- Primary nominal diameter: 1 in. (25)
- Tap profile XXL
- Product type
Warm water tank
- Operating voltage
0 V
- Width
650.00 mm
- Height
1804.00 mm
- Depth
755.00 mm
- Manufacturer
Vaillant
B (A - G)
- Material
Plastic
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147553 Vaillant VIHRW300/3BR VIHRW300/3BR Warm water tank B (A - G)
Description

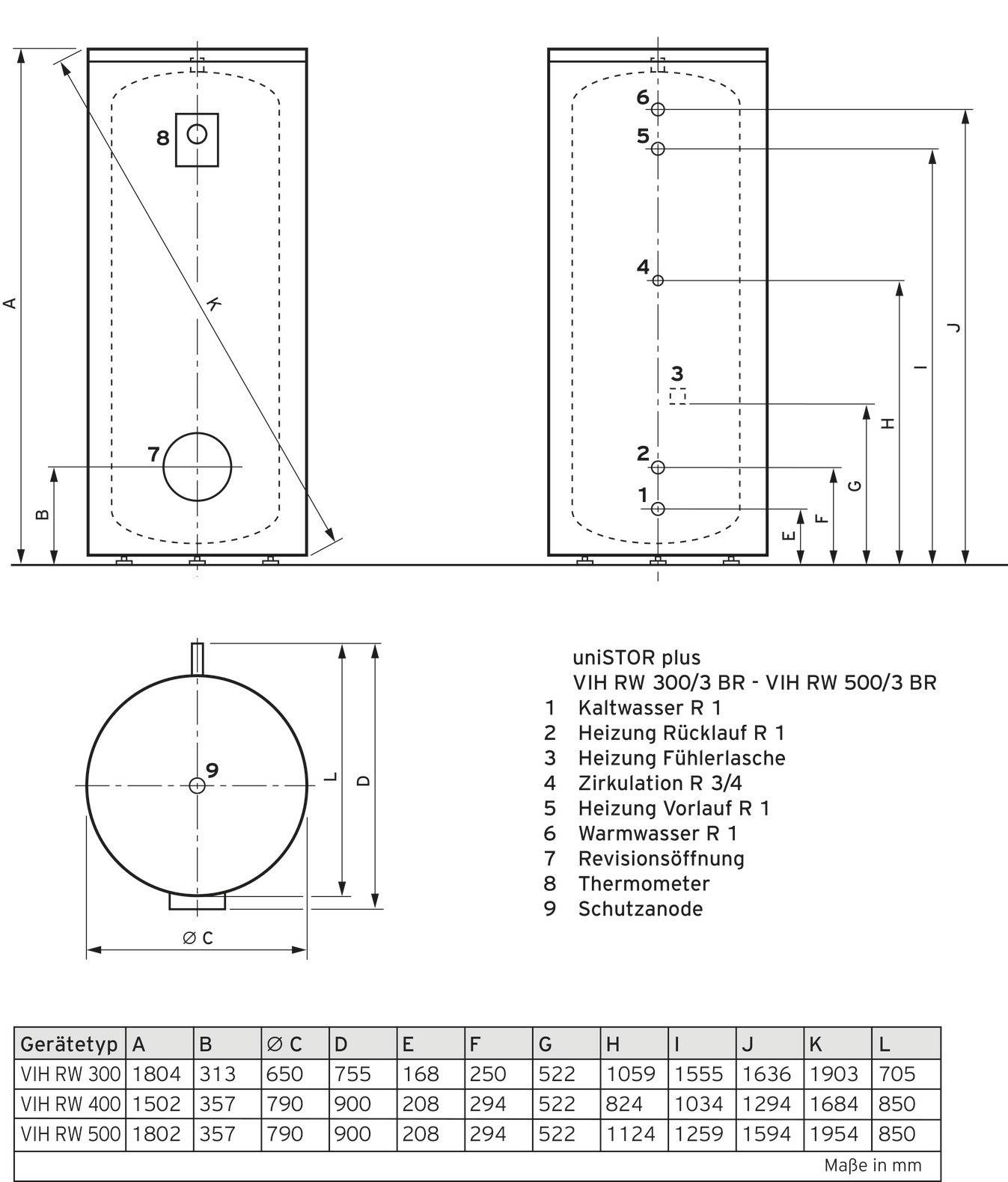

UNISTOR plus VIH RW 300/3 BR hot water storage tank, round, standing, for the combination with heat pumps Product advantages: Monovalent hot water storage tank, indirectly heated, plain water pipe register with large heat transfer surface specially designed for heat pumps, drinking water side (storage and pipe coil with high-quality enameling Equipment: Memory with permanently foamed heat insulation, removable storage sheath, pipe-spiral heat exchanger, cleaning flange / flange for E-heating rod, circulation connection, magnesium protective anode, analogue storage temperature display, transport links included Storage contents: 281l Heating water content: 20.4 l 0ll Operating pressure: 10 bar WW continuous output: 1063 l/h (43 kW) with heater inlet 60°C and tap temperature 45°C WW output: 377 l/10 min at storage temperature 60°C and tap point temperature 45°C Heat exchange area Heating: 3.12 m2 Supply/return connection R 1 Cold/hot water connection R 1 Circulating connection R 3/4 Product dimensions: Height/Width/Depth 1804/650/755 mm Tilt dimension 1903 mm Weight 141 kg Seasonal Coefficient of Performance B (Spectrum A+ to F)
