Vaillant VIHRW500/3BR VIHRW500/3BR Warm water tank B (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency rating: B
- Energy efficiency classes: A+ to F
- Material jacket: Plastic
- Material of the boiler: Steel
- Surface protection vessel: Enamelled
- 460 L capacity
- Heat transfer: Spiral
- Double separation: No.
- Wall installation: No.
- Vertical placement: Yes
- Max. Operating pressure primary: 10 bar
- Max. Operating pressure secondary: 10 bar
- With pressure reducing valve: No.
- With pressure gauge: No.
- With thermometer: Yes
- With cleaning opening: Yes
- Protective anode: Yes

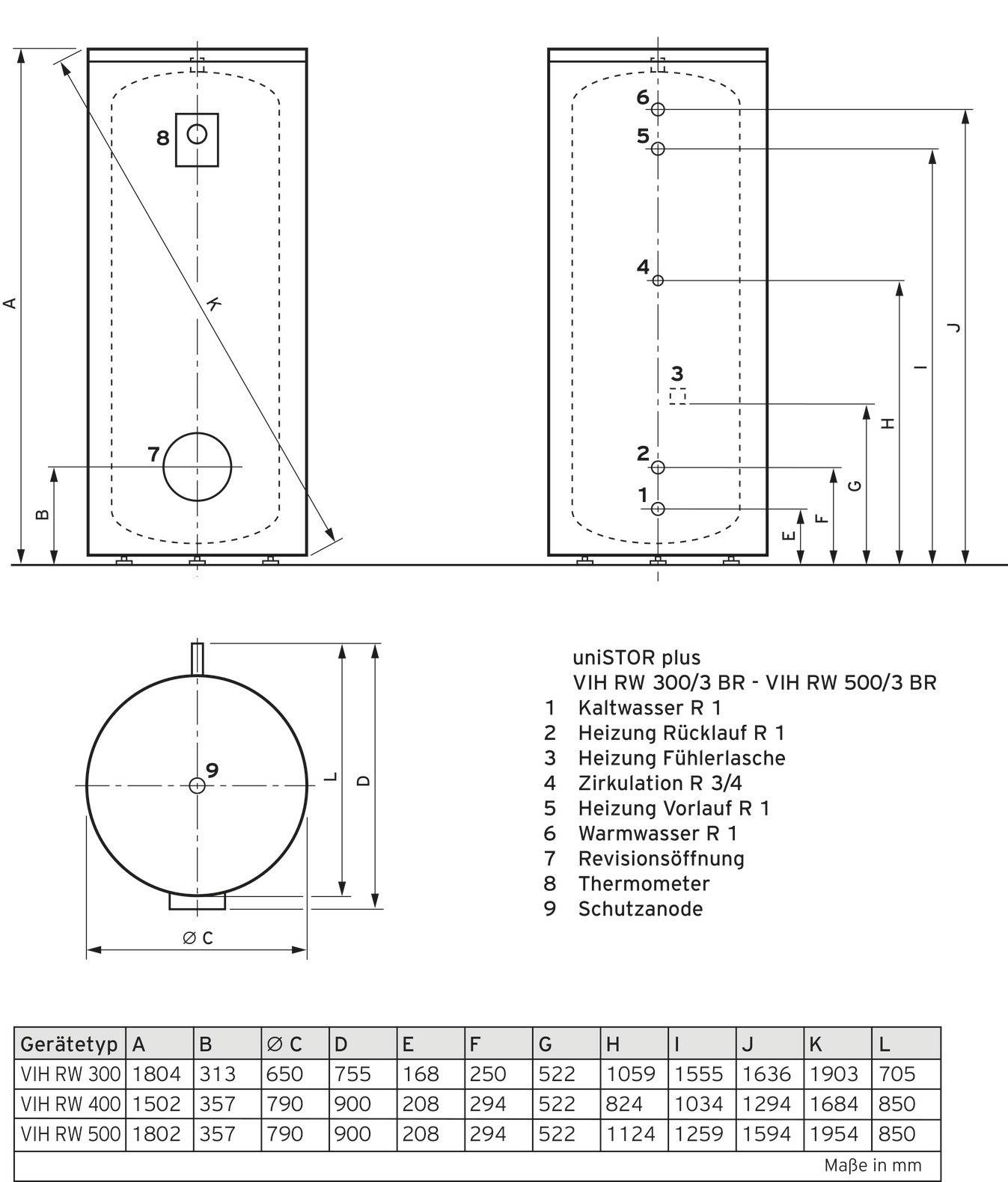

- Height: 1802 mm
- Width 790 mm
- Depth: 900 mm
- Diameter 790 mm
- Connection of cold drinking water: Conical external thread (NPT)
- Nominal diameter of cold drinking water: 1 in. (25)
- Hot water connection: Conical external thread (NPT)
- Nominal diameter of hot water connection: 1 in. (25)
- Connection for circulation cable: Conical external thread (NPT)
- Nominal diameter of circulation pipe: 3/4 in. (20)
- Pipe outer diameter Circulation pipe: 26.441 mm
- Primary connection: Conical external thread (NPT)
- Primary nominal diameter: 1 in. (25)
- Product type
Warm water tank
- Operating voltage
0 V
- Width
790.00 mm
- Height
1802.00 mm
- Depth
900.00 mm
- Manufacturer
Vaillant
B (A - G)
- Material
Plastic
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147608 Vaillant VIHRW500/3BR VIHRW500/3BR Warm water tank B (A - G)
Description
UNISTOR plus VIH RW 500/3 BR hot water storage tank, round, standing, for the combination with heat pumps Product advantages: Monovalent hot water storage tank, indirectly heated, plain water pipe register with large heat transfer surface specially designed for heat pumps, drinking water side (storage and pipe coil with high-quality enameling Equipment: Memory with permanently foamed heat insulation, removable storage sheath, pipe-spiral heat exchanger, cleaning opening / flange for E-heating rod, circulation connection, magnesium protective anode, analogue storage temperature display, transport links included Storage contents: 460 l Heating water content: 38.6 l 0l. Operating pressure: 10 bar WW continuous output: 2041 l/h (83 kW) with heater inlet 60°C and tap temperature 45°C WW output: 618 l/10 min at storage temperature 60°C and tap point temperature 45°C Heat exchange area Heating: 5.9 m2 Supply/return connection R 1 Cold/hot water connection R 1 Circulating connection R 3/4 Product dimensions: Height/Width/Depth 1802/790/900 mm Tilt dimension 1954 mm Weight 235 kg Seasonal Coefficient of Performance B (Spectrum A+ to F)
