Value 1-to-3 HDMI splitter Ultra HD compatibility 3840 x 2160 p Black
EAN:
Part number:
Item no:
VALUE 14.99.3464 audio/video power amplifier AV-transmitter & receiver black
Highlights & Details
- Signal Distribution & Extension: Distributes 1 HDMI input signals on 3 outputs, whereby two of the signal outputs can be extended to a distance of up to 40 meters via a twisted-pair cable (TP)
- High image quality: Supports a maximum video resolution of 4K at 30 Hz (as well as Full HD) with a bandwidth of up to 10.2 Gbps
- Versatile audio options: Equipped with an additional 3.5 mm L/R audio output and the support of common audio formats like PCM, LPCM, DTS-HD and DTS audio
- Practical remote control: Integrated bi-directional IR passage through which the connected devices can also be controlled via remote control at the remote location
- Robust design: The device has a stable metal housing and is designed for a wide operating temperature range from -20 °C to 60 °C.

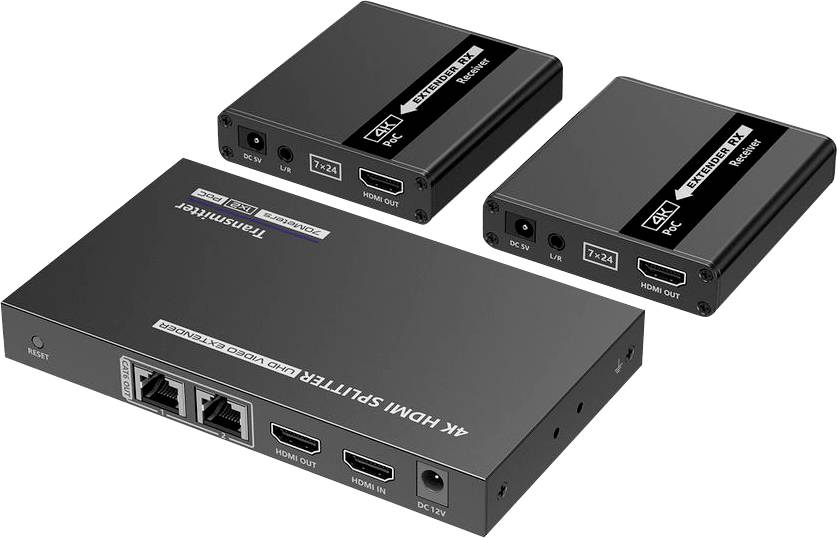

- Comprehensive kit: The set comes complete with one transmitter (TX), two receivers (RX) and three matching power supplies
Technical specifications
- HDMI version 1.4
- Dimensions transmitter (TX) 151.5 x 19 x 86.5 mm (W x H x D)
- Receiver dimensions (RX) 75 x 18 x 80 mm (W x H x D)
- Product type
HDMI splitter
- Supported monitors
3
- No. of inputs
1 x
- Interfaces (input)
HDMI® input
- No. of outputs
3 x
- Interfaces (output)
HDMI® output
- Resolution (max.)
3840 x 2160 p
- Switch function
Remote control
- Power supply (LOV)
via PSU
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Weight
600 g
- Width
151.5 mm
- Height
19 mm
- Depth
86.5 mm
- Dim
(W x H x D) 151.5 x 19 x 86.5 mm
- Port
1-to-3
- Supported audio file formats
DTS-HD
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Type
AV-transmitter & -receiver
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
-20 - 60 °C
- Receiver dimensions (WxDxH)
75 x 80 x 18 mm
- Package weight
800 g
- HDMI in
1
- Number of HDMI outputs
3
- Transmitter dimensions (WxDxH)
151,5 x 86,5 x 19 mm
- Maximum transfer distance
40 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629546 Value 1-to-3 HDMI splitter Ultra HD compatibility 3840 x 2160 p Black
Description
Are you looking for maximum flexibility for your video transmission? The VALUE HDMI splitter 3-way is the perfect solution!
With this intelligent set you can distribute an HDMI-signal effortlessly on up to three screens. The absolute highlight: Extend two of the signal outputs to impressive distances of up to 40 meters via a simple TP cable. You don't have to compromise on picture quality because the device supports brilliant resolutions of up to 4K (3840 x 2160 @30Hz).
In addition, the splitter offers a bi-directional IR passage so that you can comfortably control your devices from the remote screen. An integrated 3.5 mm audio output, which supports a variety of formats such as DTS-HD or LPCM, as well as an especially stable metal casing round off the professional package.
This text is machine translated.
With this intelligent set you can distribute an HDMI-signal effortlessly on up to three screens. The absolute highlight: Extend two of the signal outputs to impressive distances of up to 40 meters via a simple TP cable. You don't have to compromise on picture quality because the device supports brilliant resolutions of up to 4K (3840 x 2160 @30Hz).
In addition, the splitter offers a bi-directional IR passage so that you can comfortably control your devices from the remote screen. An integrated 3.5 mm audio output, which supports a variety of formats such as DTS-HD or LPCM, as well as an especially stable metal casing round off the professional package.
This text is machine translated.
