Value 19.99.1034 Socket incl. USB White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

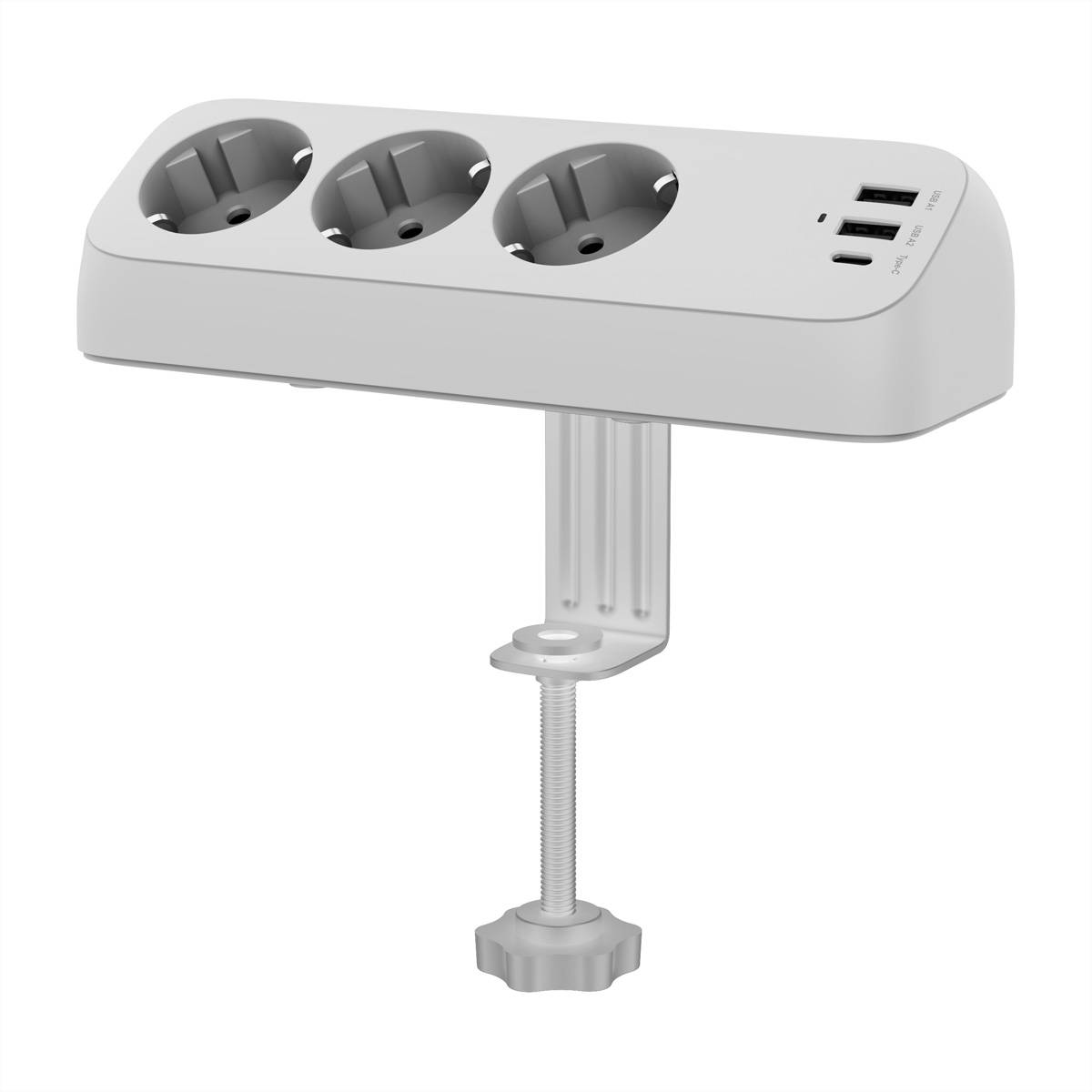

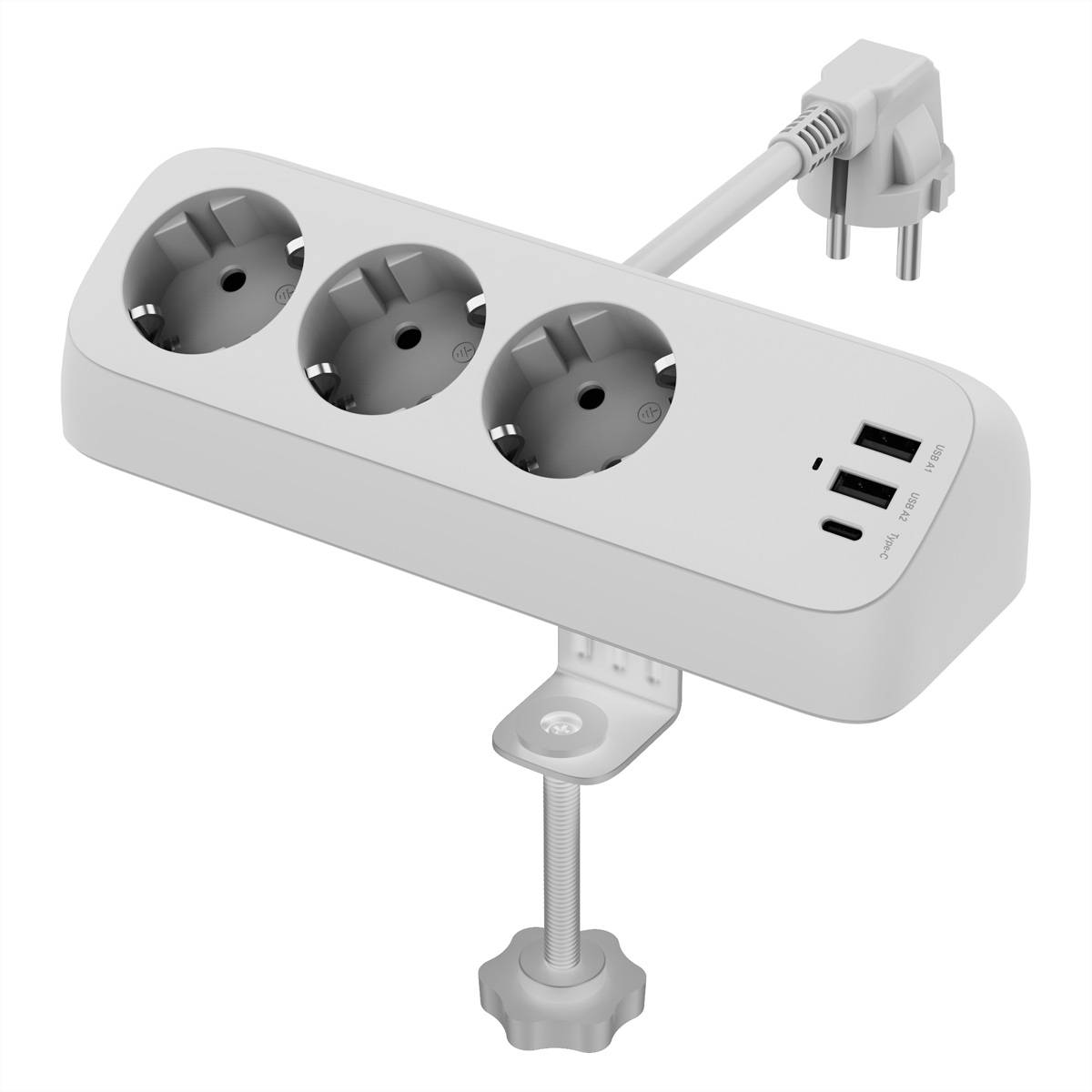

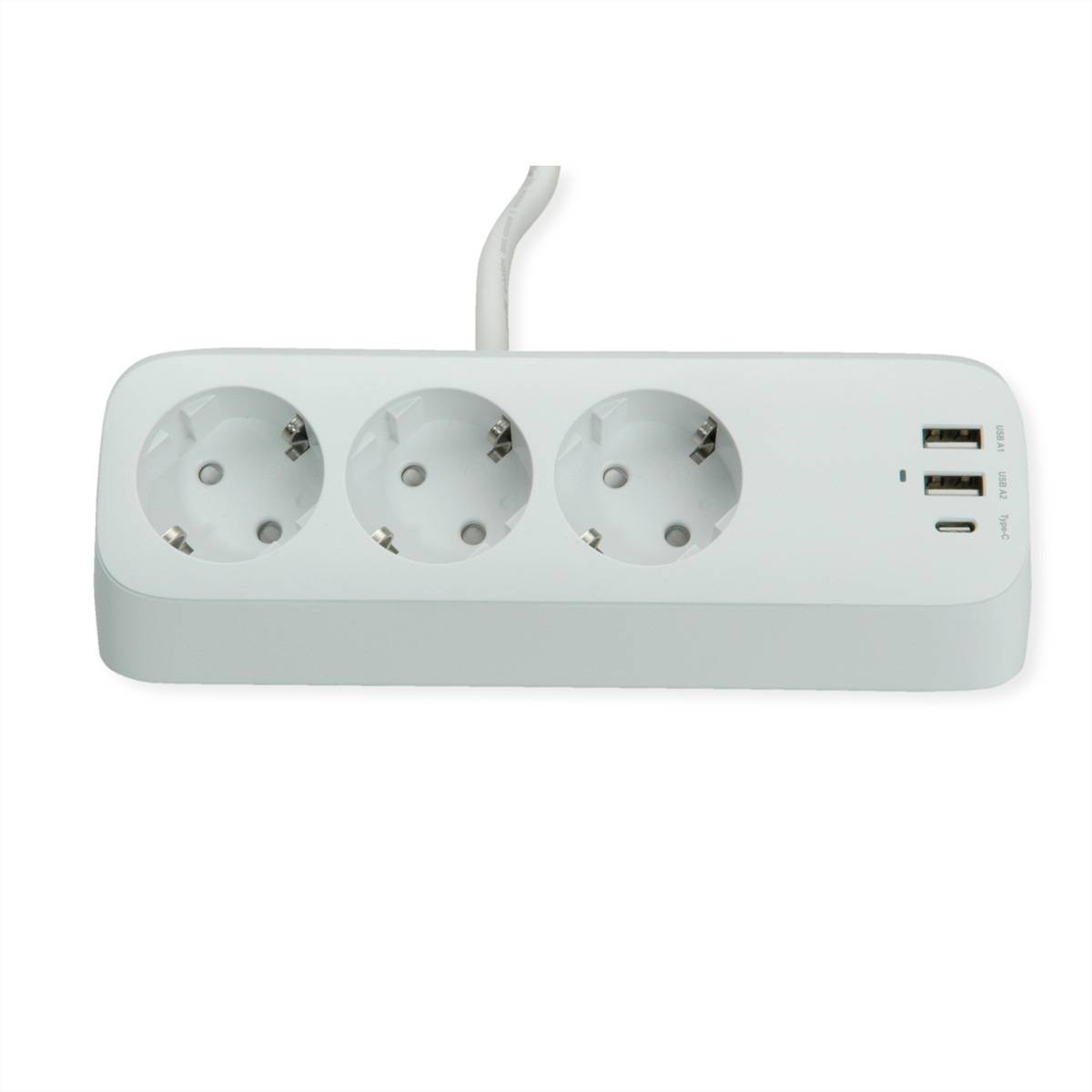

White table socket strip with three earthing contact sockets including USB charger and clamp for mounting on a table top
- Desktop power strip with safety outlets
- Integrated USB charger (2x Type A, 1x Type C)
- Maximum charging power of the USB ports 32 W
- With table clamp
- Cable with angled safety plug
Technical specifications
- Product group: Socket strips
- Product type: Power strip
- Colour: white
- Length: 1.5 m
- Function: 3-way socket strip
- Design: Desktop
- Power rating 3680 W max.
- Max. voltage 250V/AC
- On/off switch: No.
- Number of socket pots: 3
- Number of outputs/angle 3 / 45 °
- Arrangement of the outputs: Series
- Socket type: Protective contact, CEE 7/3, type-F
- USB charger: Yes
- Number of USB ports: 3
- Material (housing): Plastic
- Colour (housing): White
- Connecting cable: H05VV-F 3G 1.5mm² 1.5m
- Colour (cable): White
- Connection plug: Right-angle power plug
- Plug type: Earthing contact, CEE 7/7, type-E/F
- With increased protection against accidental contact: Yes
- Regional use: Germany, Austria, Netherlands
- Mains connection: Protective contact plug, type E/F
- Min. Operating temperature 0 °C
- Max. operating temperature: 25 °C
- Min. Storage temperature: -20 °C
- Storage temperature max. 85 °C.
- Height: 57 mm
- Width 200.5 mm
- Depth: 70.8 mm
- Weight: 601 g.
- Packaging height 100 mm
- Package width 150 mm
- Packaging depth 210 mm
- Package weight: 0.8 kg
- Gross weight: 0.8
- Product type
Socket
- Light bulb features
incl. USB
- Outlets
3
- Mounting type
Clamp
- Factory colour
White
- Dim
(W x H) 200.5 mm x 57 mm
- Width
200.5 mm
- Height
57 mm
- Type
Desktop
- Content
1 pc(s)
- Cable length
1.50 m
- Material
Plastic
- Surge protection for
Mains outlets
- Plug type
PG connector
- Operating voltage
250 V AC
- Used at
Indoors
- Power rating
3680 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797513 Value 19.99.1034 Socket incl. USB White
User & Safety Instructions
User & Safety Instructions 3797513 Value 19.99.1034 Socket incl. USB White
Description
White table power strip with three earthing contact sockets including USB charger and clamp for fixing to a table top. 3-way socket strip made of white plastic with clamp for fixing to a table top. Sockets are at a 45° angle. 1.5 m cable, with angled safety plug. USB charging port: 2x USB-A (5V/2.4A each) + 1x USB-C (up to 15V/2A). Maximum charging power of the USB ports: 32 W. Protection against overcurrent, overvoltage and overload. Protection against accidental contact.
This text is machine translated.
Scope of delivery

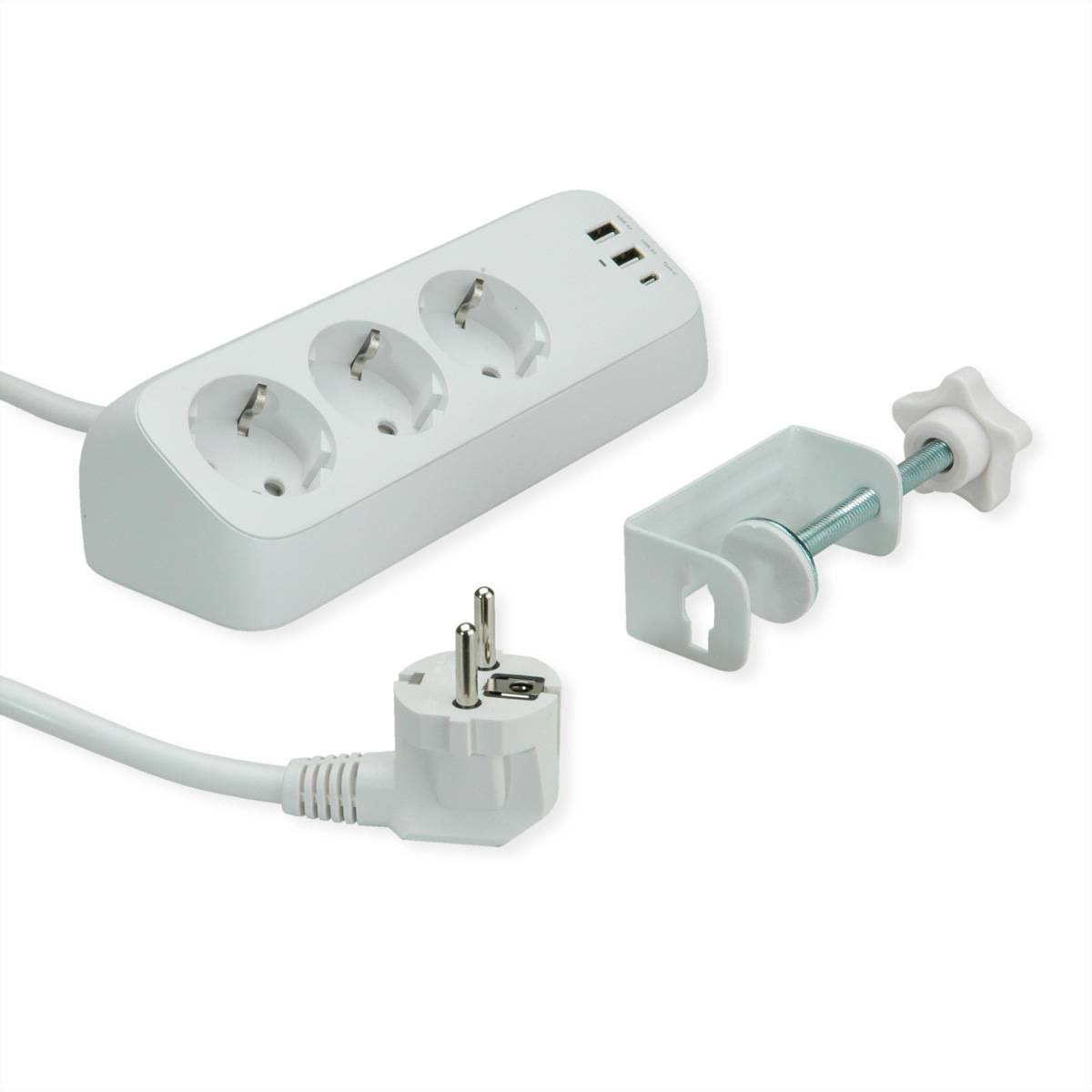

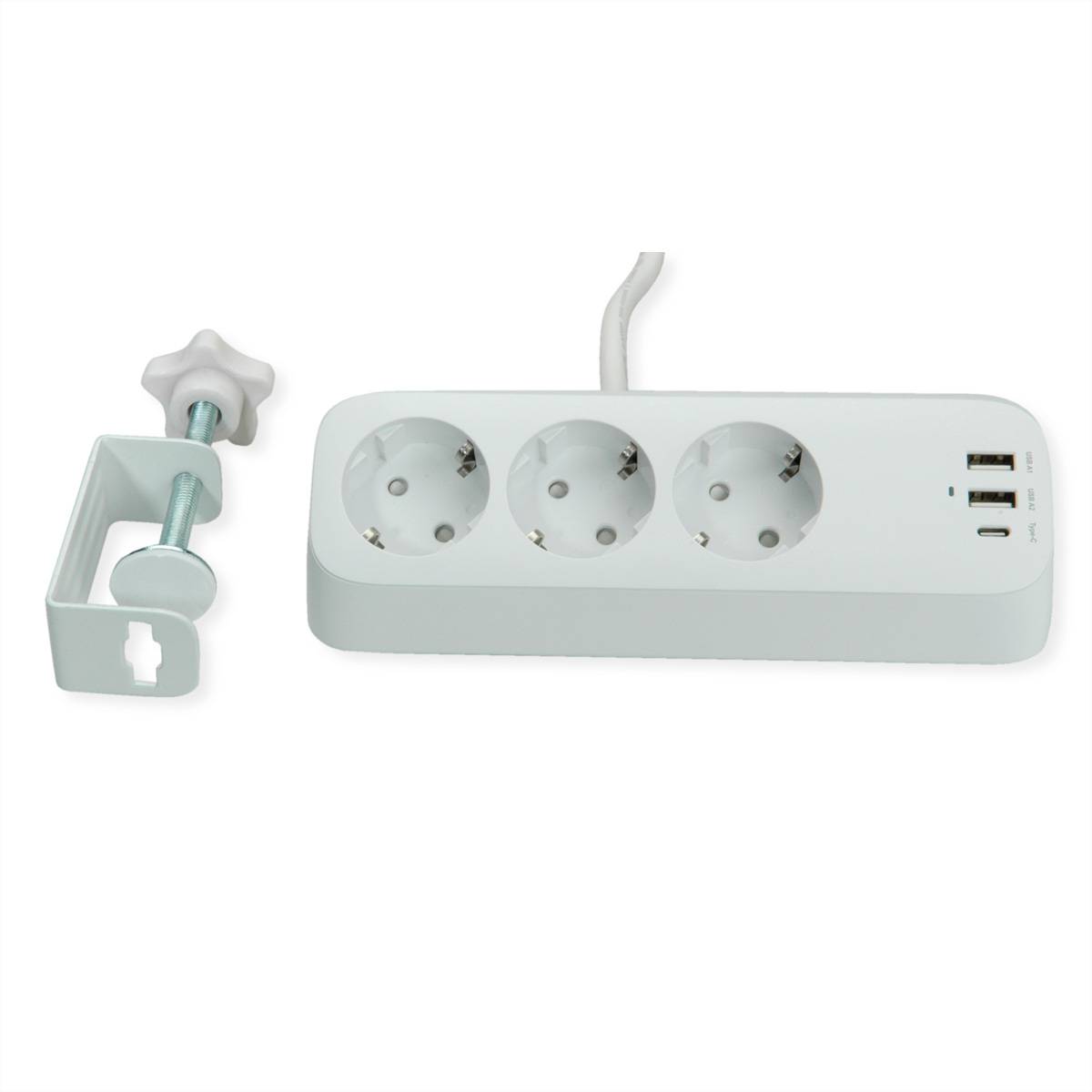

- Power strip and table clamp
