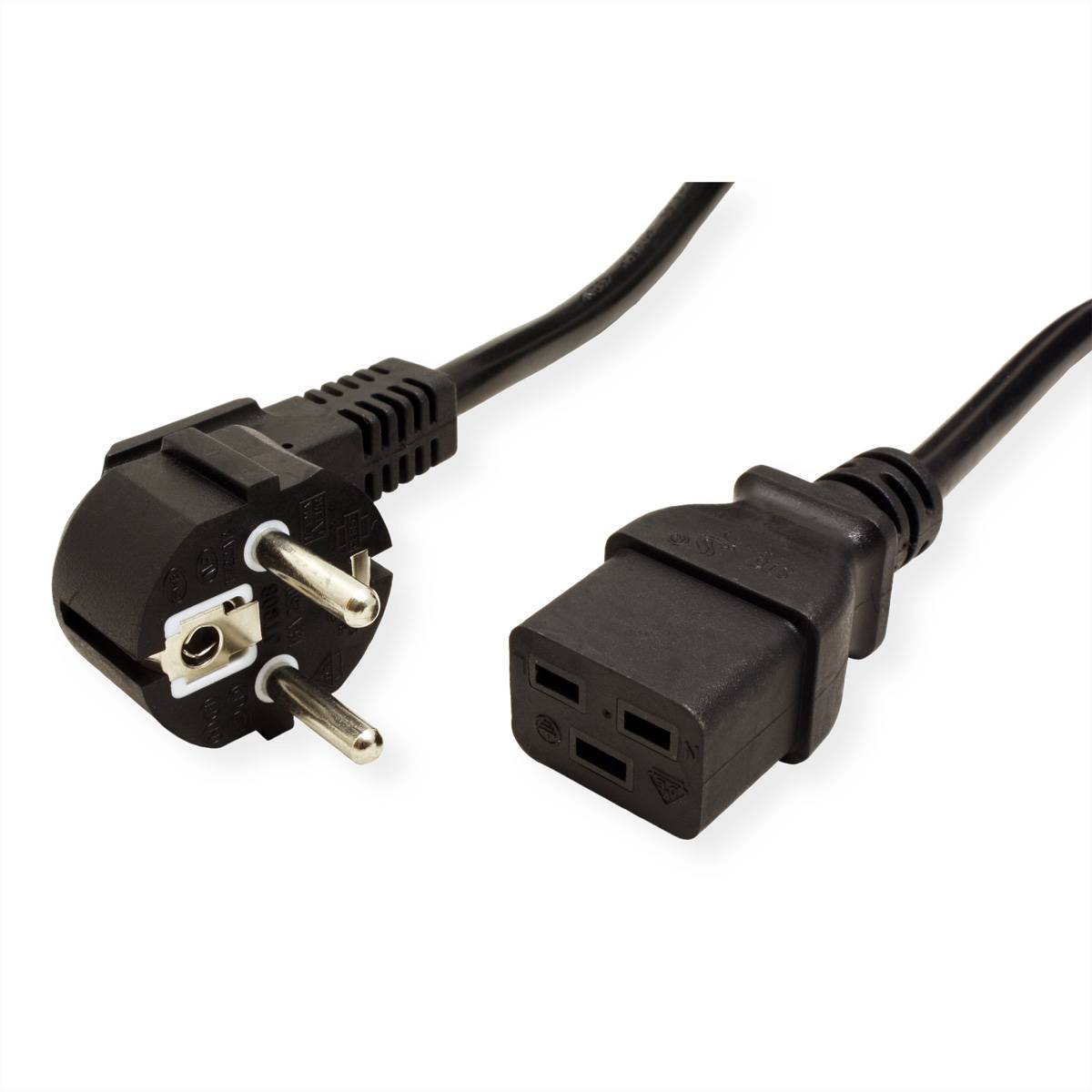

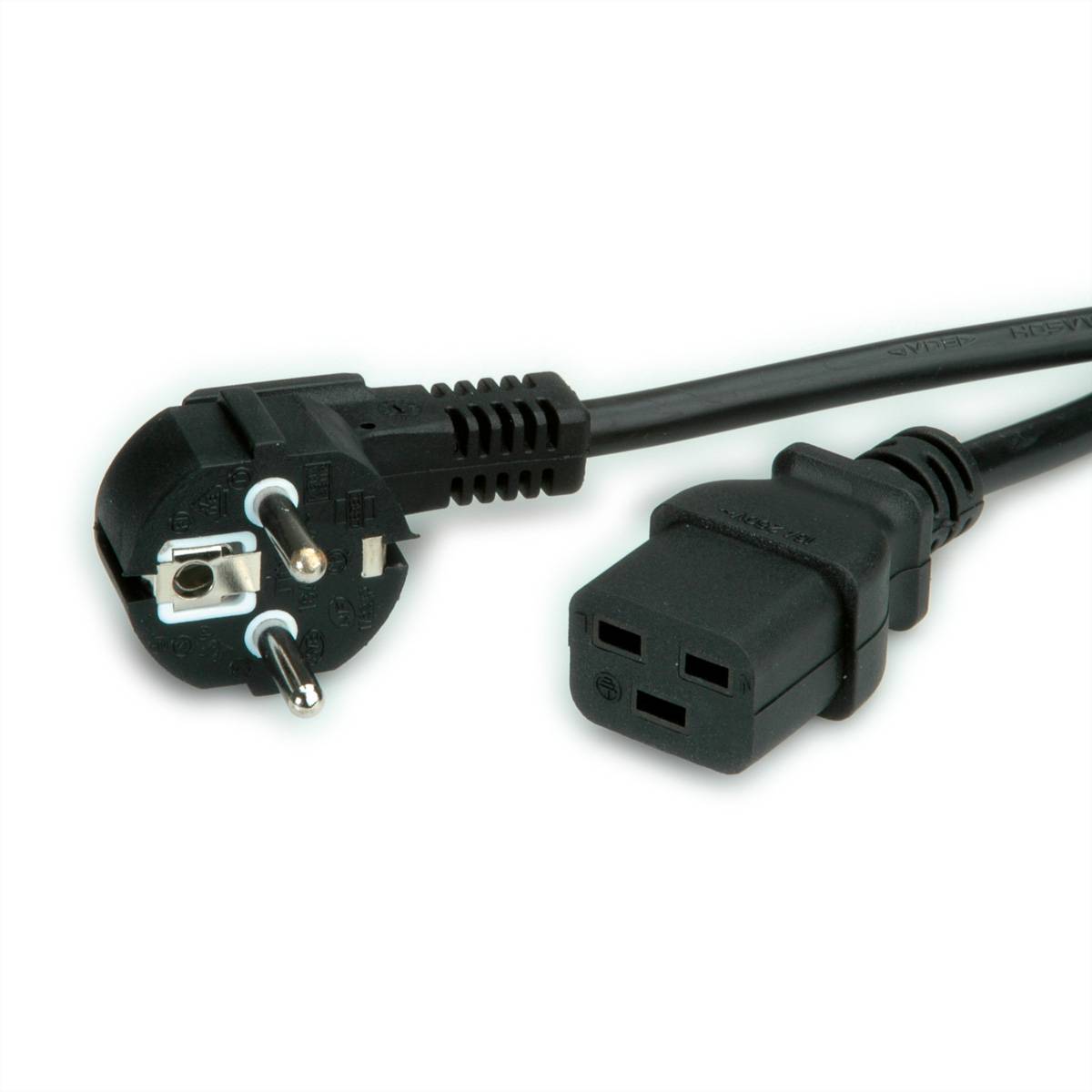

Value 19.99.1551 Power cable Black 0.80 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Connection cable with earthing contact plug and straight C19 low-power socket
- Connection cable with IEC320 C19 socket & protective contact plug
- Connection cable for up to 16 A.
- Typical area of application: UPSs from 3000VA
Technical specifications
- Product group: Power cord
- Product type: Connection cable
- Colour, black
- Length: 0.8 m
- Connections: Protection contact, CEE 7/7, type-E/F plug / IEC320 C19, cold devices, 16A socket
- Max. current 16 A
- Max. voltage 250V
- Maximum power 3600W
- Cable sheath material H05VV-F
- Wire cross-section (mm²): 1.5mm²
- Number of wires: 3
- Page 1 Description: Protective contact
- Page 1 plug type: Protective contact
- Side 1 outer plugs Ø (mm): 40 mm
- Page 2 Description: Cold devices
- Page 2 Socket Type: IEC320 C19
- Side 2 outer socket Ø (mm) 20 x 28 mm
- Page 1 Type of connection: Protective contact, CEE 7/7, Type E / F
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connection: IEC320 C19, cold devices, 16A
- Page 2 Type of connection: Female (female)
- Regional use: Germany, Austria, Netherlands
- Weight: 173 g
- Packaging height 40 mm
- Package width 110 mm
- Packaging depth 260 mm
- Package weight: 0.22 kg
- Gross weight: 0.22
- Product type
Power cable
- Cable length
0.80 m
- Type A
PG plug
- Type B
IEC C19 socket (cooling devices)
- Connector version
angled on one side
- Factory colour
Black
- Cable design
Round
- Version
Cable
- Cable use
Current
- Connection type
PG connector
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797519 Value 19.99.1551 Power cable Black 0.80 m
User & Safety Instructions
User & Safety Instructions 3797519 Value 19.99.1551 Power cable Black 0.80 m
Description
Connection cable with earthing contact plug and straight C19 low-power socket. Connection cable for up to 16 A. Typical application range: UPS from 3000VA or connection of Blade servers
This text is machine translated.
Scope of delivery
- VALUE Power cord protection CEE7/7 - IEC320-C19
