Value 21.99.1800 Electrical wiring CAT 8.1 S/FTP Grey 100 m
EAN:
Part number:
Item no:
Product type
Electrical wiring
Specification
CAT 8.1
Shielding
S/FTP
Cable type
S/FTP
No. of leads
8 x
Highlights & Details

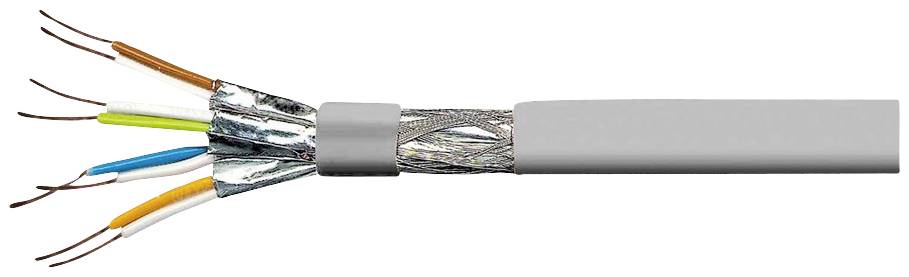

VALUE S/FTP (PiMF) cable, Cat. 8 (Class I), solid wire, AWG22, LSOH, gray, 100 m
- Twisted Pair installation cable
- Cable for a structured building wiring
- For use in 40 Gigabit Ethernet networks
- For use particularly in data centers
- Double shielded (PiMF) cable
- Cat.8.1, suitable for 10 to 40 GBit/s.
- Impedance 100 Ohm
- Colour: grey
- Layout:8 wires, copper, solid wire
- Pair wise shielding in aluminum-laminated foil
- Overall shielding in tin-plated copper braid
Technical specifications
- Product type
Electrical wiring
CAT 8.1
S/FTP
- Cable type
S/FTP
- No. of leads
8 x
- No. of leads (part 2)
8 x
- Cable features
double shielding
Metal foil shield
- Outside Ø
8.4 mm
- Width
250 mm
- Height
300 mm
- Factory colour
Grey
- Content
100 m
- AWG max.
22
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
21.99.1800
- Type
21.99.1800
- RoHS-compliant
Yes
- Halogen-free
Yes
- Max. length sold by the metre
100 m
- Twisted pair cabling (part 1)
Yes (1)
- Twisted pair cabling (yes/no)
Yes (1)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3017776 Value 21.99.1800 Electrical wiring CAT 8.1 S/FTP Grey 100 m
Description
Category 8, the standard for next-generation twisted-pair cabling, enables data to be transferred up to four times faster on the same type of cabling and supports 25GBASE-T and 40GBASE-T short-distance applications (up to 30 meters) for switch-to-server connections (mainly in top-of-rack or end-of-row topologies).
CATEGORY 8, THE STANDARD FOR NEXT-GENERATION TWISTED-PAIR CABLING, ENABLES UP TO FOUR TIMES FASTER TRANSFER OF DATA ON THE SAME TYPE OF CABLING AND SUPPORTS 25GBASE-T AND 40GBASE-T APPLICATIONS FOR SHORT DISTANCES. OUR CAT. 8 CABLES ARE ALL HALOGEN-FREE AND FLAME RESISTANT (LSOH).
This text is machine translated.
CATEGORY 8, THE STANDARD FOR NEXT-GENERATION TWISTED-PAIR CABLING, ENABLES UP TO FOUR TIMES FASTER TRANSFER OF DATA ON THE SAME TYPE OF CABLING AND SUPPORTS 25GBASE-T AND 40GBASE-T APPLICATIONS FOR SHORT DISTANCES. OUR CAT. 8 CABLES ARE ALL HALOGEN-FREE AND FLAME RESISTANT (LSOH).
This text is machine translated.
Features
- Manufacturer: VALUE
- Product group: Twisted pair cable
- Product type: Installation cable
- Colour: grey
- Length: 100 m
- Content 100 m
- Shielding type SFTP
- Transmission quality Cat8.1 / Class I
- Impedance 100 Ohm
- Number of wires 8
- Wire cross-section (AWG) AWG 22
- Wire type: Solid wire
- Outer Ø cable 8.4 mm
- Cable LSOH: Yes
- Material outer sheath cable: LSOH
- Fire protection class DCA
- Min. Operating temperature -20 °C
- Max. operating temperature: 75 °C
- Weight: 7363 g.
- Packaging height 300 mm
- Package width 250 mm
- Packaging depth 300 mm
- Package weight: 8 kg
