1/5
Value 25.99.8493 Grey
EAN:
Part number:
Item no:
Datasheet (PDF)

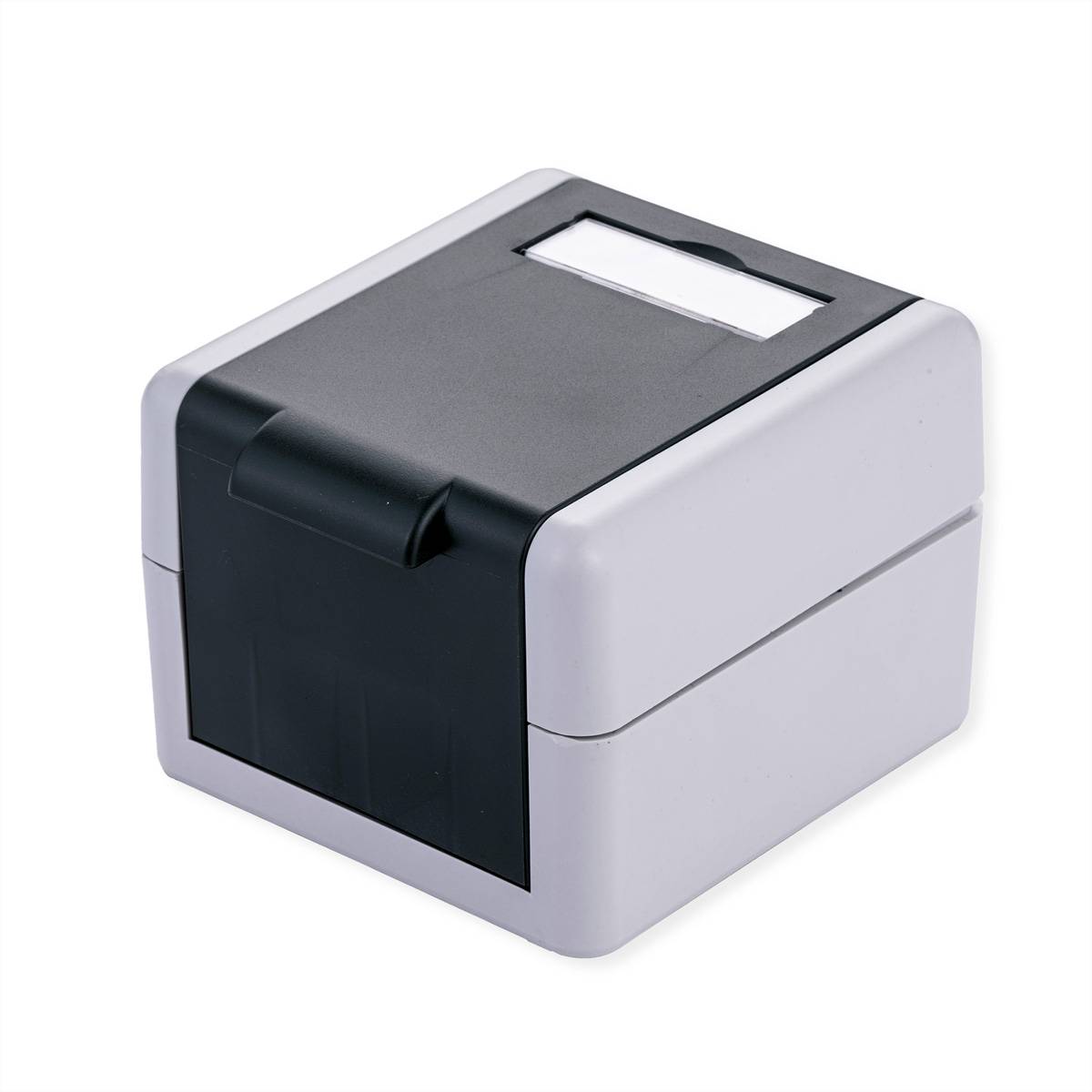

Wall housing with 2 ports for use of keystones, suitable for use in outdoor areas and anywhere where the connections are protected..
Highlights & Details
- Box for 2 Keystone modules
- With hinged cover
- Cable openings protected front and rear
- Space-saving, easy to install
Technical specifications
- Product group: Connection technology TP
- Product type: Accessories
- Colour: grey
- Wall mounting: Surface-mounted
- Cabinet system: 19" technology
- Number of ports: 2
- Modular design: Yes
- Material (casing) ABS
- Protection type (IP code): IP44
- With straight plug

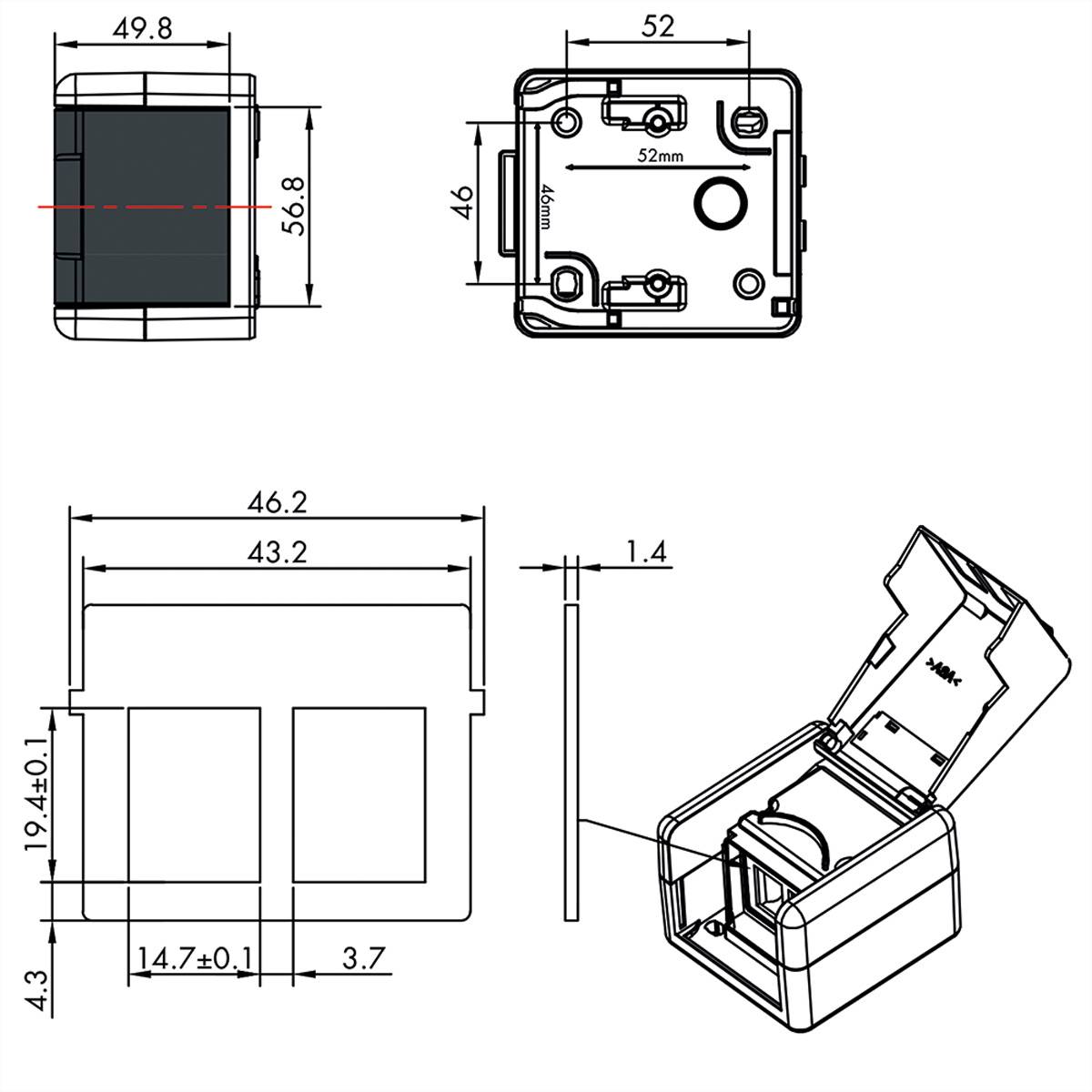

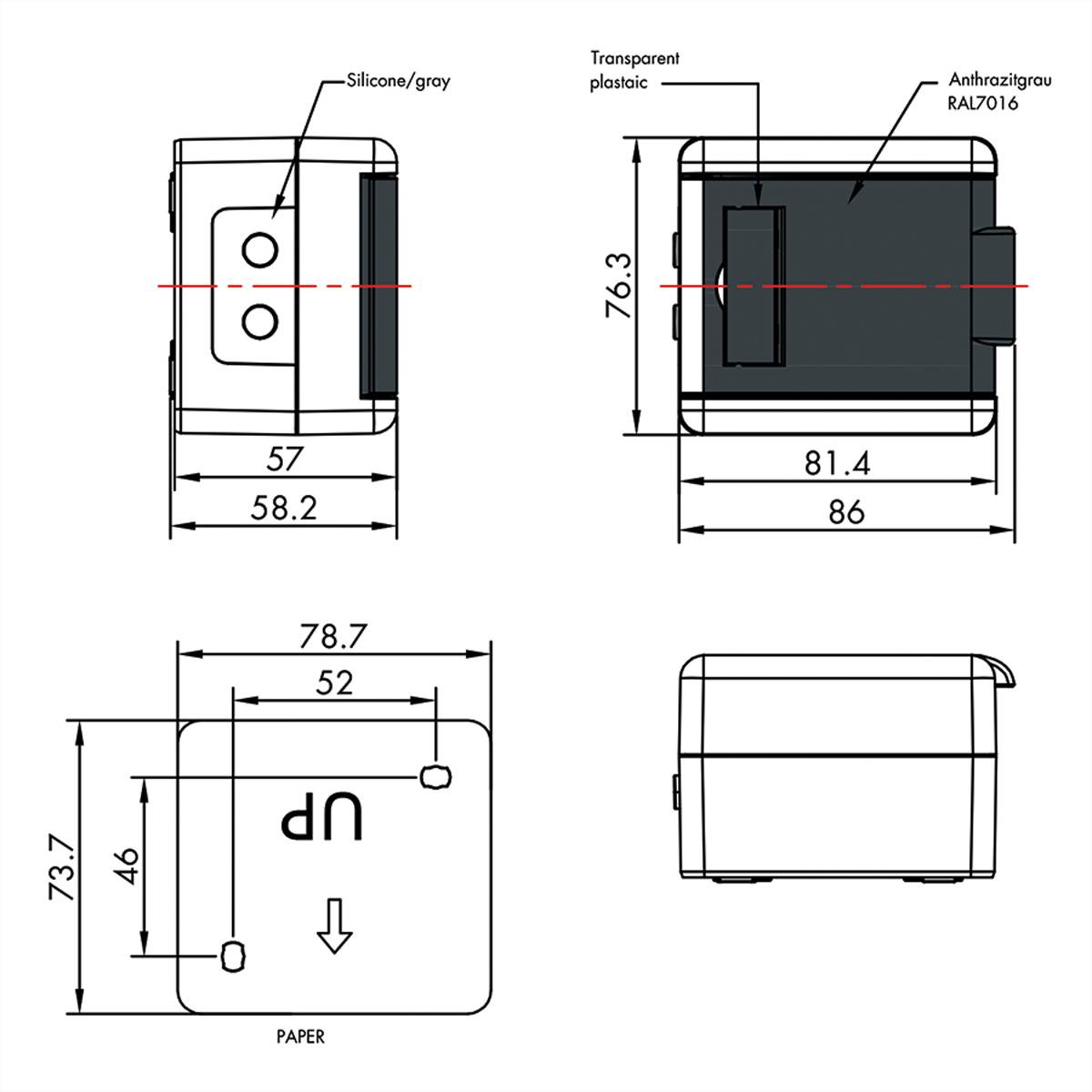

- Dimensions (HxWxD) 76 x 86 x 58 mm
- Battery category: Not relevant
- Height: 58 mm
- Width 76 mm
- Depth: 86 mm
- Weight: 133 g
- Packaging height 70 mm
- Package width 90 mm
- Packaging depth 100 mm
- Package weight: 0.17 kg
- Gross weight: 0.17
- Factory colour
Grey
- Content
1 pc(s)
CAT 5e
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3799343 Value 25.99.8493 Grey
User & Safety Instructions
User & Safety Instructions 3799343 Value 25.99.8493 Grey
Description

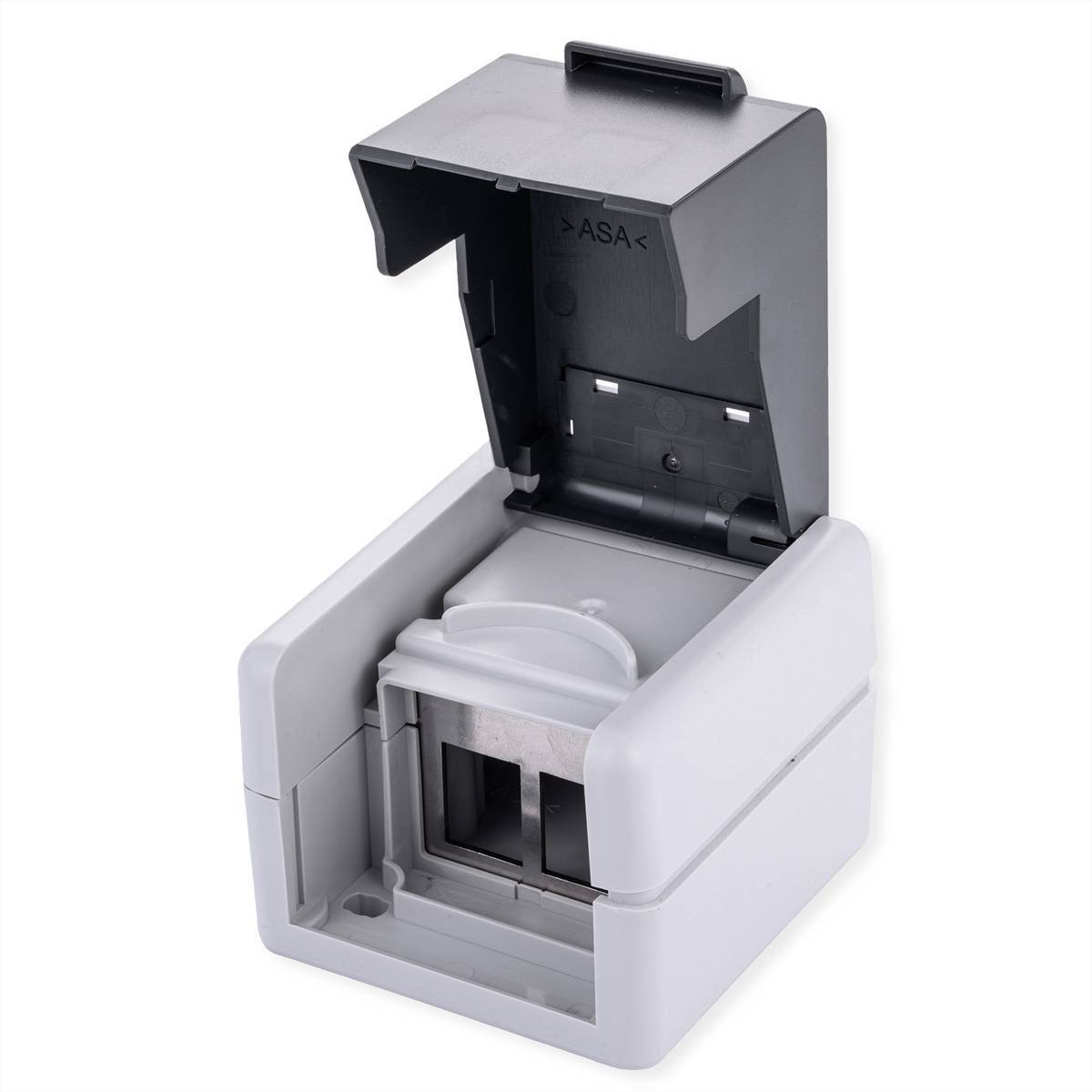

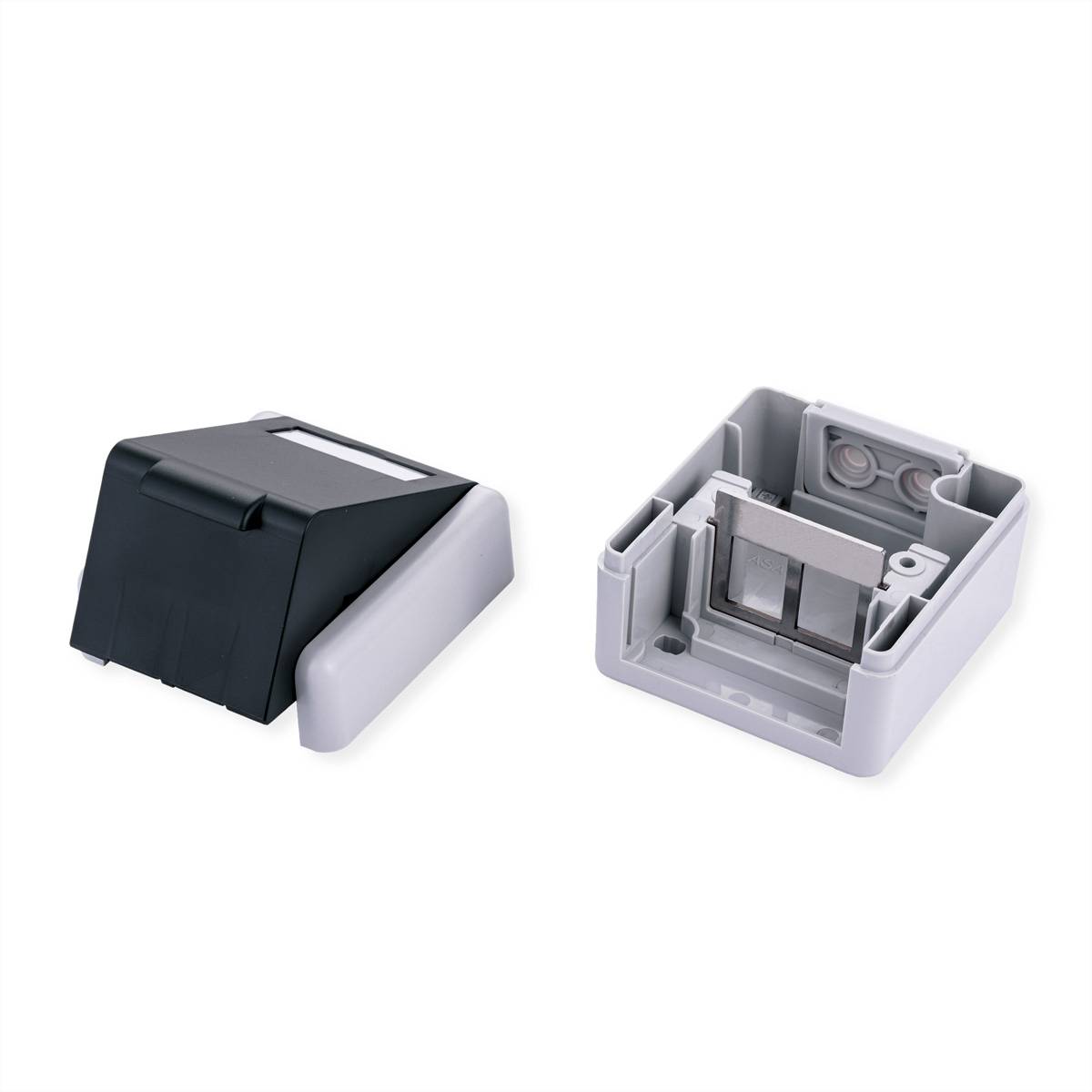

Wall-mounted housing with 2 ports for using keystones, suitable for use in outdoor areas and anywhere where the connections need to be protected (protection class IP44) . Compatible with all snap-in connections (keystones), which can be attached and disconnected with a simple click. Box for 2 keystones. Keystone output: 90° (straight down) The keystones are protected by a hinged lid. Cable openings front protected by hinged cover and rear with dust protection cover. Individual marking is possible thanks to the integrated marking field. Material: Thermoplastic (ABS); Keystone holder made of metal. Dimensions 76 x 86 x 58 mm. Colour: Light gray with cover in anthracite. Space-saving, easy to install. Note: Keystones are not included. Please order it separately.
This text is machine translated.
Scope of delivery
- Value outdoor wall housing for 2x keystones
